Can DKOS 45Â° hydraulic end, type ZMW322, heavy series, AISI 316L steel be crimped with standard crimping sleeves for metric internal-thread hose fittings?

Yes. The DKOS 45Â° hydraulic end, type ZMW322, heavy series, AISI 316L steel can be crimped with standard crimping sleeves intended for metric internal-thread hose fittings, provided these conditions are met: - The sleeve matches the hose construction and nominal hose size (profile, diameter and reinforcement type). - The sleeve is rated for crimping onto fittings with an internal metric thread and nut and a 24Â° Oâring cone (DKOS) geometry. - The crimping equipment is suitable for heavyâseries fittings and the sleeve material/length meet the manufacturerâs specifications for AISI 316L fittings. If any of the above are not verified, use the hose/fitting manufacturerâs recommended sleeve and crimp parameters to ensure a compliant, leakâfree crimp.

Is DKOS 45Â° hydraulic end, type ZMW322, heavy series, AISI 316L steel compatible with crimping sleeves for stainless steel hose assemblies?

Yes. DKOS 45Â° hydraulic end, type ZMW322, heavy series, AISI 316L steel is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. It has an internal metric thread and nut, seals with an Oâring on a 24Â° cone, and its heavy series construction and stainless AISI 316L material are compatible with standard crimping sleeves matched to the hose specification. Ensure you use the correct sleeve profile and crimping parameters recommended for the hose and fitting combination.

Does DKOS 45Â° hydraulic end, type ZMW322, heavy series, AISI 316L steel require a specific O-ring material for sealing?

Yes. DKOS 45Â° hydraulic end, type ZMW322, heavy series, AISI 316L steel requires an Oâring for sealing on the 24Â° cone. Because the fitting uses a DKOS 24Â° cone interface, the Oâring material must be compatible with hydraulic fluid, temperature range and AISI 316L contact. Commonly recommended materials are: - NBR (Nitrile). good for mineral hydraulic oils, moderate temperatures (approx. -30Â°C to +100Â°C). Economical but limited chemical/temperature resistance. - FKM / Viton. better for higher temperatures (+200Â°C short-term) and wider chemical compatibility (includes many hydraulic oils and some aggressive fluids). Preferred when higher heat or chemical resistance is needed. - HNBR. improved temperature and oil resistance versus NBR; good compromise for hydraulic systems. - EPDM. generally not recommended for mineral oil systems (better for water/glycol fluids). - PTFE (with elastomer spring). for extreme chemical compatibility; may be used where elastomers fail. Select the Oâring material based on the systemâs hydraulic fluid type, operating temperature, pressure, and any exposure to aggressive chemicals. Verify Oâring size and hardness (typically 70 Shore A is common) to ensure proper sealing on the 24Â° cone and consult manufacturer specifications or engineering standards for final material selection.

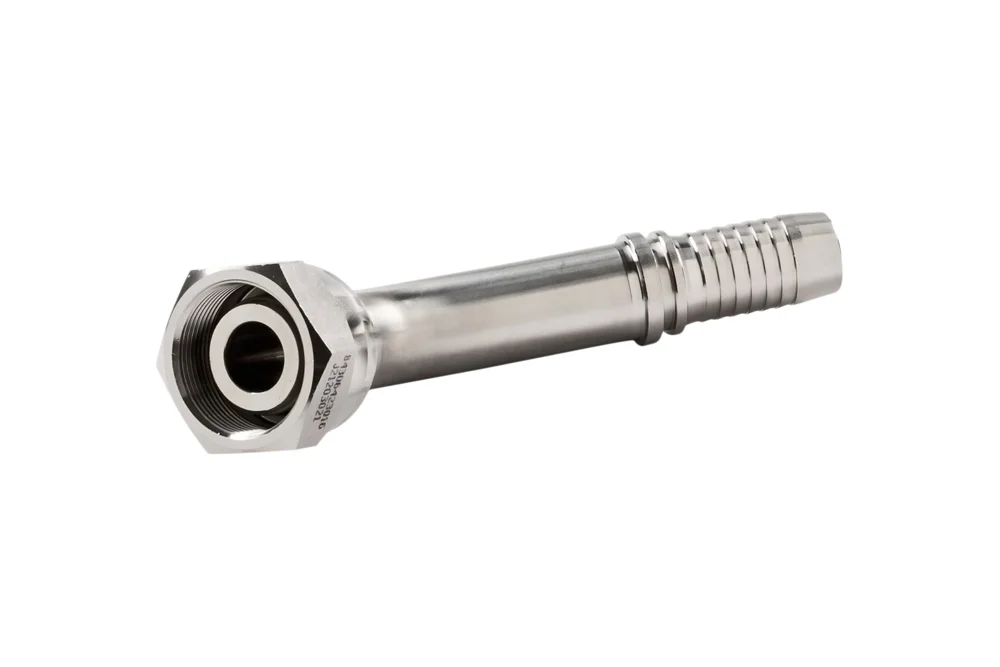

DKOS 45° hydraulic end, type ZMW322, heavy series, AISI 316L steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 45° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW322-14-04-SS	End. 45° G thread M14x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW322-16-04-SS	End. 45° G thread M16x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW322-18-04-SS	End. 45° G thread M18x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW322-20-05-SS	End fitting 45° G1/2 M20x1.5, hose 5/16", 24°, o-ring, heavy, AIS316L	8	-	In stock	Enquiry
TI-ZMW322-20-06-SS	End fitting 45° G thread M20x1.5, hose 3/8", 24°, o-ring, heavy, AISI 316L	10	-	In stock	Enquiry
TI-ZMW322-22-06-SS	End. 45° G1/2 M22x1.5, hose 3/8", 24°, o-ring, heavy, AISI 316L	10	-	In stock	Enquiry
TI-ZMW322-24-08-SS	End. 45° G thread M24x1.5, hose 1/2", 24°, o-ring, heavy, AISI 316L	12	-	In stock	Enquiry
TI-ZMW322-30-10-SS	End. 45° G thread M30x2, hose 5/8", 24°, o-ring, heavy, AISI 316L	16	-	In stock	Enquiry
TI-ZMW322-30-12-SS	End. 45° G thread M30x2, hose 3/4", 24°, o-ring, heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZMW322-36-12-SS	End. 45° GW M36x2, hose 3/4", 24°, o-ring, heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZMW322-36-16-SS	End. 45° GW M36x2, hose 1", 24°, o-ring, heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZMW322-42-16-SS	End. 45° GW M42x2, hose 1", 24°, o-ring, heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZMW322-52-20-SS	End. 45° GW M52x2, hose 1.1/4", 24°, o-ring, heavy, AISI 316L	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 45° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.
