Is the DKR 45Â° hydraulic end, type ZBW310, carbon steel, Y compatible with standard crimping sleeves for hose assemblies?

Yes. The DKR 45Â° hydraulic end, type ZBW310, carbon steel, Y is compatible with standard crimping sleeves for hose assemblies. It is specifically designed for crimping in hydraulic and industrial hoses and requires a crimping sleeve appropriate to the hose type. Ensure you use a sleeve and crimping die matched to the hose diameter, reinforcement type and manufacturer specifications, and follow the recommended crimping process and torque/pressure settings for a reliable seal.

Can the DKR 45Â° hydraulic end, type ZBW310, carbon steel, Y withstand corrosion in marine environments?

DKR 45Â° hydraulic end, type ZBW310, carbon steel, Y Format: As supplied-carbon steel, galvanized-the component has basic corrosion resistance from zinc galvanization suitable for general industrial and mild outdoor use, including occasional splash or humid conditions. However, galvanized carbon steel is not ideal for prolonged exposure to marine environments (salt spray, high chloride levels); over time it will corrode faster than stainless steel or specialized marine coatings. For reliable long-term marine use, choose stainless steel (e.g., 316), additional heavy-duty marine plating, or apply specific corrosion protection and regular maintenance.

Does the DKR 45Â° hydraulic end, type ZBW310, carbon steel, Y accept hoses with BSP internal thread sizes across standards?

Yes. The DKR 45Â° hydraulic end, type ZBW310, carbon steel, Y accepts hoses with BSP internal thread sizes across standards, provided the hose assembly uses a matching BSP internal thread and nut and is crimped with the correct crimping sleeve for that hose type. The product description specifies an internal BSP thread and nut with a 60Â° sealing cone (DKR), so compatibility requires the mating hose fitting to have the corresponding BSP internal thread form and size and to be assembled using the recommended crimp sleeve for secure sealing and mechanical strength.

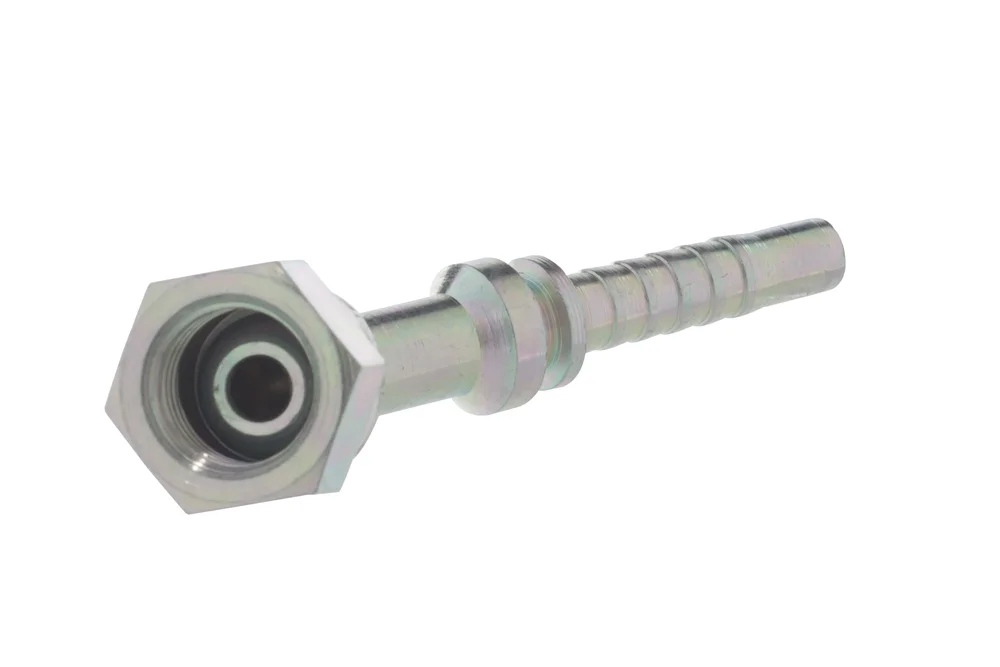

DKR 45° hydraulic end, type ZBW310, carbon steel, Y

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, 60° sealing cone (DKR), angled 45°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW310-04-04-Y	End. 45° GW 1/4" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBW310-06-05-Y	End 45° GW 3/8" BSP, hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBW310-06-06-Y	End fitting 45° GW 3/8" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBW310-08-06-Y	End fitting 45° GW 1/2" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBW310-08-08-Y	End fitting 45° GW 1/2" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBW310-12-08-Y	End fitting 45° GW 3/4" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBW310-12-10-Y	End fitting 45° GW 3/4" BSP, hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBW310-12-12-Y	End fitting 45° GW 3/4" BSP, hose 3/4", cone 60°	20	-	In stock	Enquiry
TI-ZBW310-16-12-Y	End fitting 45° GW 1" BSP, hose 3/4", cone 60°	20	-	In stock	Enquiry
TI-ZBW310-20-16-Y	End fitting 45° GW 1.1/4" BSP, hose 1", cone 60°	25	-	In stock	Enquiry
TI-ZBW310-24-20-Y	End fitting 45° GW 1.1/2" BSP, hose 1.1/4", cone 60°	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, 60° sealing cone (DKR), angled 45°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.
