Can the DKR hydraulic end for UHP hose carbon steel, type PBW110 be used with non-UHP thermoplastic hoses and the same crimping sleeve?

No. The DKR hydraulic end for UHP hose carbon steel, type PBW110 is specifically designed for UHP thermoplastic hoses and for crimping with a sleeve suitable for that hose type. Its internal geometry (special "tail") and sealing on a 60Â° cone are intended to work with UHP thermoplastic hose dimensions, material properties and the matching crimp sleeve. Using it with non-UHP thermoplastic hoses and the same crimping sleeve risks improper fit, inadequate sealing and compromised crimp integrity, leading to leaks or failure. Always match the fitting, hose type and crimping sleeve per manufacturer specifications or consult the supplier before substituting components.

Is the DKR hydraulic end for UHP hose carbon steel, type PBW110 compatible with different crimping sleeve dimensions?

The DKR hydraulic end for UHP hose carbon steel, type PBW110 is intended to be crimped using a crimping sleeve suitable for the specific UHP thermoplastic hose type. Compatibility with different crimping sleeve dimensions depends on whether the sleeve matches the hose outer diameter and profile required by that hose and ensures secure crimping on the fittingâs tail. In short: PBW110 is compatible only with crimping sleeves sized and profiled for the exact UHP hose specified-using incorrect sleeve dimensions risks poor crimp, leakage or failure. Verify sleeve dimensions against the hose and manufacturerâs crimping specifications before use.

Does the DKR hydraulic end for UHP hose carbon steel, type PBW110 require specific crimping pressure settings?

The DKR hydraulic end for UHP hose carbon steel, type PBW110 does not specify a unique numeric crimping pressure in the provided description. It is designed for crimping in UHP thermoplastic hoses using a crimping sleeve suitable for the hose type, which implies that crimping parameters (pressure/force, die profile and position) must match the hose and sleeve manufacturerâs specifications rather than a universal setting for the fitting itself. Practical guidance: - Use the crimping pressure and die profile recommended by the hose and crimping sleeve manufacturer for the specific UHP thermoplastic hose being used. - Ensure the crimping tool and sleeve are rated for UHP applications and compatible with carbon steel fittings. - Verify crimp dimensions (diameter, indent depth) and perform sample pull/pressure tests per hose maker or industry standards. - Follow assembly instructions for hose preparation, insertion depth, and cleanliness to ensure a reliable crimped connection. If you need an exact pressure value, provide the exact hose model and crimp sleeve part number so the correct crimp specification can be sourced.

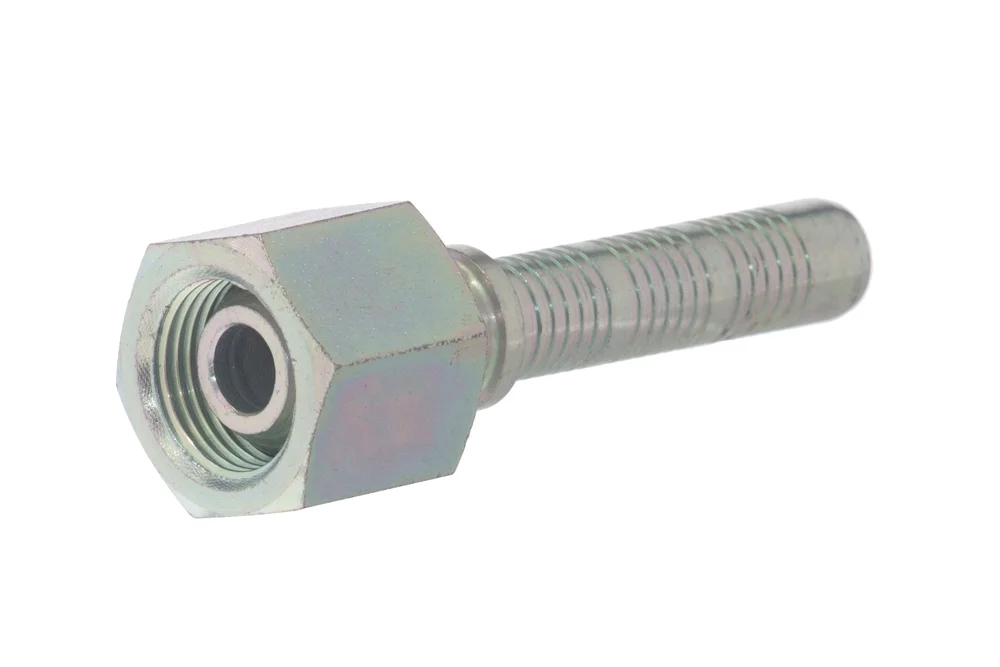

A fitting hydraulic DKR for hose UHP steel carbon, type PBW110

Additional information

Material	CS – steel (cast iron)

A hydraulic fitting (type P – with a special “tail” for a thermoplastic hose) with a thread internal BSP, sealing on a 60° cone (DKR). Intended for crimping in UHP thermoplastic hoses by means of a clamping ferrule appropriate for the hose type. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-PBW110-04-025-TO	Fitting 1/4" BSP female, hose thermoplastic 5/32", 60° DKR	4	800	In stock	Enquiry
TI-PBW110-04-04-TO	Fitting 1/4" BSP female, hose thermoplastic 1/4", 60° DKR	6	800	In stock	Enquiry
TI-PBW110-06-06-TO	Fitting 3/8" BSP female, hose thermoplastic 3/8", 60° DKR	10	800	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A hydraulic fitting (type P – with a special “tail” for a thermoplastic hose) with a thread internal BSP, sealing on a 60° cone (DKR). Intended for crimping in UHP thermoplastic hoses by means of a clamping ferrule appropriate for the hose type. Material: steel carbon, galvanized.
