Can a DKR hydraulic end, type ZBW110, carbon steel, Y with internal BSP thread and nut be crimped using a standard crimping sleeve for hydraulic hoses?

Yes . the DKR hydraulic end, type ZBW110, carbon steel, Y Format with internal BSP thread and nut can be crimped using a standard crimping sleeve for hydraulic hoses, provided the sleeve and crimping parameters match the hose type and manufacturer specifications. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose." Ensure you use a sleeve sized for the hose inner/outer diameter and reinforcement, the correct crimping machine dies and force, and follow the hose and fitting manufacturersâ assembly instructions and recommended crimp dimensions. Also verify material compatibility (galvanized carbon steel) and that the 60Â° sealing cone (DKR) and BSP thread engagement are intact after crimping.

Is the DKR hydraulic end, type ZBW110, carbon steel, Y compatible with crimping sleeves for industrial hose assemblies?

Yes. The DKR hydraulic end, type ZBW110, carbon steel, Y is designed for crimping in hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type. It features an internal BSP thread, nut and a 60Â° sealing cone (DKR), and is made of galvanized carbon steel-making it compatible with standard crimping sleeves for industrial hose assemblies when the sleeve matches the hose specification.

Does the DKR hydraulic end, type ZBW110, carbon steel, Y require a specific crimping die size?

No. the DKR hydraulic end, type ZBW110, carbon steel, Y Format does not require a unique crimping die size specified by the fitting itself. It is designed to be crimped into hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type and size. Therefore you must select the crimping die and sleeve based on the hose manufacturerâs specifications (hose inner/outer diameter, reinforcement type and recommended sleeve dimensions) rather than a proprietary die for this fitting. Ensure the crimping equipment and selected sleeve meet the hose and fitting pressure ratings and industry standards; verify final crimp dimensions and hydraulic integrity with the hose makerâs recommended crimping profile and a pressure/test procedure.

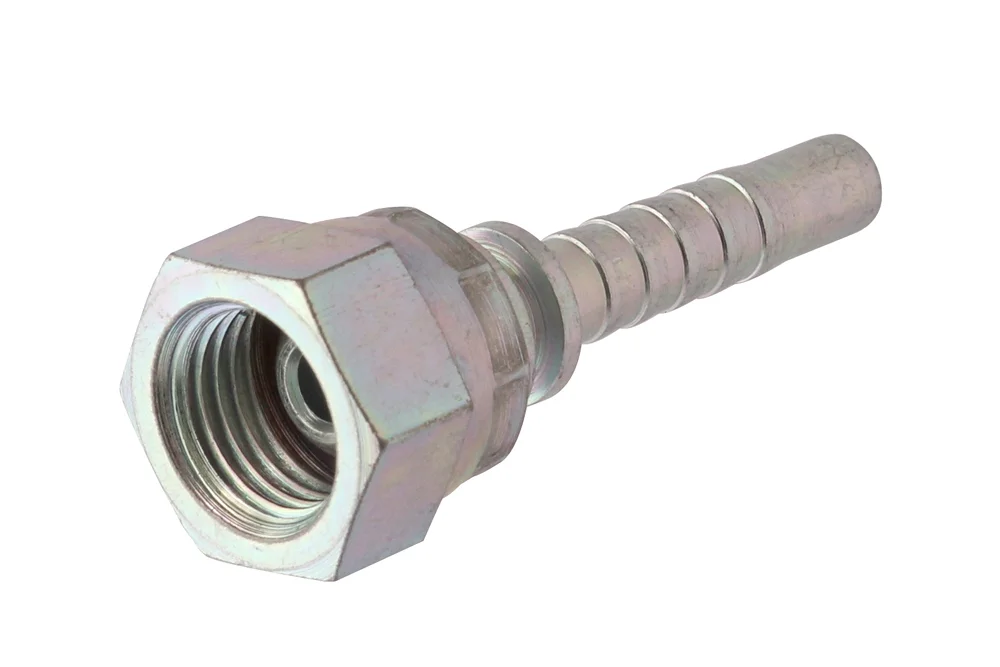

Fitting hydraulic DKR, type ZBW110, carbon steel, Y

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	50

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, 60° sealing cone (DKR). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW110-04-04-Y	Fitting 1/4" BSP female, hose 1/4", 60° cone	6	-	In stock	Enquiry
TI-ZBW110-06-05-Y	Fitting 3/8" BSP female, hose 5/16", 60° cone	8	-	In stock	Enquiry
TI-ZBW110-06-06-Y	Fitting 3/8" BSP female, hose 3/8", 60° cone	10	-	In stock	Enquiry
TI-ZBW110-08-05-Y	Fitting 1/2" BSP female, hose 5/16", 60° cone	8	-	In stock	Enquiry
TI-ZBW110-08-06-Y	Fitting 1/2" BSP female, hose 3/8", 60° cone	10	-	In stock	Enquiry
TI-ZBW110-08-08-Y	Fitting 1/2" BSP female, hose 1/2", 60° cone	12	-	In stock	Enquiry
TI-ZBW110-12-08-Y	Fitting 3/4" BSP female, hose 1/2",60° cone	12	-	In stock	Enquiry
TI-ZBW110-12-12-Y	Fitting 3/4" BSP female, hose 3/4", 60° cone	20	-	In stock	Enquiry
TI-ZBW110-24-24-Y	Fitting 1.1/2" BSP female, hose 1.1/2", 60° cone	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, 60° sealing cone (DKR). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
