Is the DKS hydraulic end, type ZMW112 heavy series made of carbon steel compatible with standard crimping sleeves for hose crimping?

Yes. The DKS hydraulic end, type ZMW112, heavy series, carbon steel is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Its construction . regular hydraulic tail (type Z), internal metric thread with nut, metal-to-metal sealing, and universal 24Â°/60Â° DKS cone . is intended to be secured by a compatible crimping sleeve and crimper rated for heavy-series hose fittings. Ensure the sleeve profile and crimping dimensions match the specific hose and the heavy-series fitting specifications; follow the hose and sleeve manufacturerâs recommended crimp diameter and procedure to guarantee a proper, leak-free assembly.

Can DKS hydraulic end, type ZMW112, heavy series, carbon steel, with internal metric thread and nut, be used with hoses requiring metal-metal sealing?

Yes. DKS hydraulic end, type ZMW112, heavy series, carbon steel, with internal metric thread and nut, can be used with hoses requiring metal-to-metal sealing. The product description specifies metal-metal sealing and a universal 24Â°/60Â° DKS cone, which provides the required metal-to-metal contact. It is designed for crimping onto hydraulic and industrial hoses using an appropriate crimping sleeve matched to the hose type. Ensure you use the correct crimp sleeve and crimping parameters for your hose to achieve a secure, leak-free metal-to-metal seal.

Can DKS hydraulic end, type ZMW112, heavy series, carbon steel, be crimped to hoses with non-standard sleeve profiles?

DKS hydraulic end, type ZMW112, heavy series, carbon steel. can be crimped to hoses with non-standard sleeve profiles? Generally no. it requires a crimping sleeve suitable for the type of hose. ZMW112 is designed for crimping with sleeves that match the hose profile. Using non-standard sleeve profiles risks improper crimping, poor mechanical retention, and loss of sealing integrity. Details: ZMW112 is a heavy-series hydraulic end with a regular hydraulic tail, internal metric thread and nut, metal-to-metal sealing and a universal 24Â°/60Â° DKS cone. It is intended to be crimped using a sleeve that corresponds to both the hose construction and the fitting tail dimensions. Proper crimping depends on sleeve inner geometry, wall thickness and length; non-standard sleeves may not compress the hose correctly onto the fitting tail, causing leaks, blow-offs, or premature failure. Exceptions and precautions: - If a non-standard sleeve is specifically engineered and validated to match the ZMW112 tail dimensions and the hose type, and crimping parameters (crimp diameter, force, mandrel) are verified, safe use may be possible. Such sleeves must be qualified by testing (burst, pull-off, leak). - Never substitute arbitrary sleeves without manufacturer approval or engineering validation. - Always follow hose and fitting manufacturer recommendations for sleeve type, crimping tool, and crimping specs. Recommendation: Use the correct crimping sleeve specified for the hose and ZMW112 fitting or obtain written confirmation from the hose or fitting manufacturer that a particular non-standard sleeve is acceptable after validation testing.

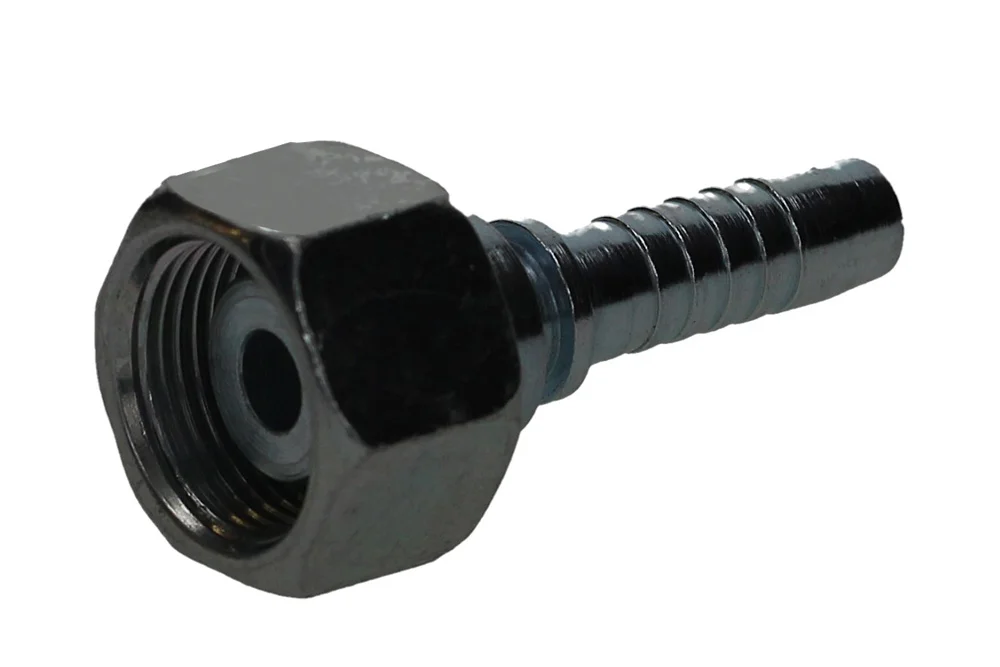

Fitting hydraulic DKS, type ZMW112, series heavy, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing metal – metal, cone uniwersalny 24°/60° (DKS), series heavy. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW112-18-04	Fitting M18x1.5 female, hose 1/4", 24/60°, heavy	6	-	In stock	Enquiry
TI-ZMW112-20-05	Fitting M20x1.5 female, hose 5/16", 24/60°, heavy	8	-	In stock	Enquiry
TI-ZMW112-20-08	Fitting M20x1.5 female, hose 1/2", 24/60°, heavy	12	-	In stock	Enquiry
TI-ZMW112-22-06	Fitting M22x1.5 female, hose 3/8", 24/60°, heavy	10	-	In stock	Enquiry
TI-ZMW112-24-08	Fitting M24x1.5 female, hose 1/2", 24/60°, heavy	12	-	In stock	Enquiry
TI-ZMW112-30-10	Fitting M30x2 female, hose 5/8", 24/60°, heavy	16	-	In stock	Enquiry
TI-ZMW112-36-12	Fitting M36x2 female, hose 3/4", 24/60°, heavy	20	-	In stock	Enquiry
TI-ZMW112-42-12	Fitting M42x2 female, hose 3/4", 24/60°, heavy	20	-	In stock	Enquiry
TI-ZMW112-42-16	Fitting M42x2 female, hose 1", 24/60°, heavy	25	-	In stock	Enquiry
TI-ZMW112-52-20	Fitting M52x2 female, hose 1.1/4", 24/60°, heavy	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing metal – metal, cone uniwersalny 24°/60° (DKS), series heavy. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
