Is DKL hydraulic end, type ZMW111, light series, AISI 316 steel (PH) compatible with sleeves marked "-PH" for crimping industrial hoses?

Yes. DKL hydraulic end, type ZMW111, light series, AISI 316 steel (PH) is compatible with crimping sleeves marked "-PH". The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose and notes to use sleeves marked additionally with the letters "-PH" at the end of the index.

Does DKL hydraulic end, type ZMW111, light series, AISI 316 steel (PH) require special crimping sleeves beyond those marked "-PH"?

No. DKL hydraulic end, type ZMW111, light series, AISI 316 steel (PH) does not require any special crimping sleeves beyond those already indicated by the product description. The description explicitly states that this fitting is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose and instructs to use sleeves marked additionally with the letters â-PHâ at the end of the index. Therefore you should use the standard crimping sleeves specified for the hose type and ensure you select the sleeves with the â-PHâ suffix (which are the appropriate ones for this AISI 316 PH material). No other special sleeves are required.

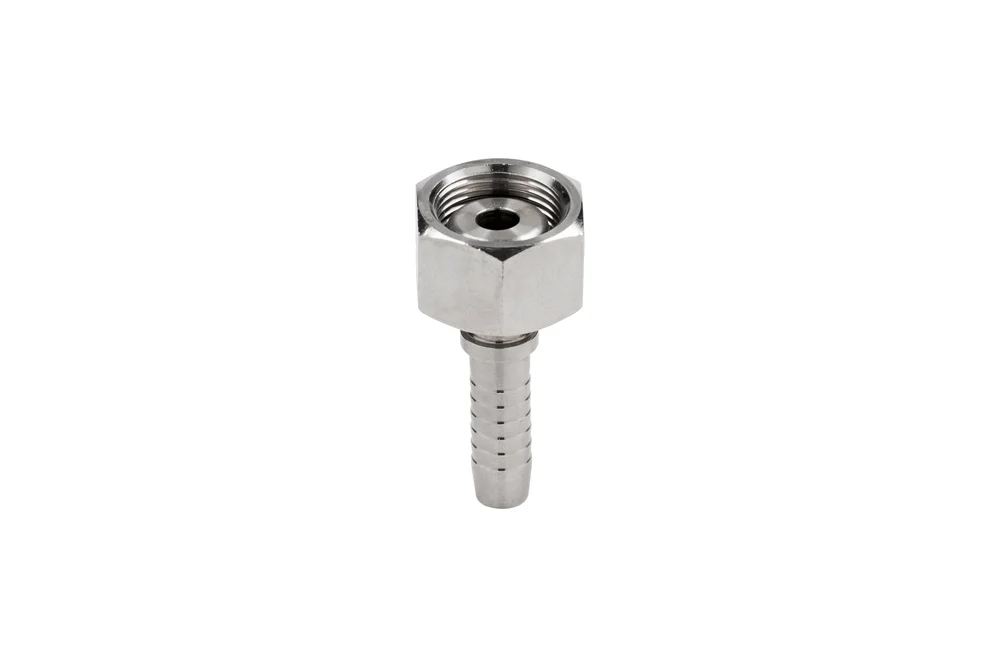

DKL hydraulic end, type ZMW111, light series, AISI 316 steel (PH)

Q: Can DKL hydraulic end, type ZMW111, light series, AISI 316 steel (PH) be crimped using standard crimping sleeves marked "-PH" for hose compatibility?

Yes. The DKL hydraulic end, type ZMW111, light series, AISI 316 steel (PH) is designed for crimping with a sleeve appropriate to the hose type . specifically use crimping sleeves that carry the suffix â-PHâ in the index. The product description explicitly states it is intended for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters â-PHâ). Therefore standard crimping sleeves marked â-PHâ for hose compatibility are the correct choice for crimping this fitting. Ensure you also follow the hose manufacturerâs crimp dimensions, machine settings and quality checks for a reliable assembly.

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW111-12-03-SS-PH	End. GW M12x1.5, hose 3/16", 24°, light, AISI 316	5	-	In stock	Enquiry
TI-ZMW111-12-04-SS-PH	End. GW M12x1.5, hose 1/4", 24°, light, AISI 316	6	-	In stock	Enquiry
TI-ZMW111-14-04-SS-PH	End. GW M14x1.5, hose 1/4", 24/60°, light, AISI 316	6	-	In stock	Enquiry
TI-ZMW111-14-05-SS-PH	End. GW M14x1.5, hose 5/16", 24°, light, AISI 316	8	-	In stock	Enquiry
TI-ZMW111-16-04-SS-PH	End. GW M16x1.5, hose 1/4", 24/60°, light, AISI 316	6	-	In stock	Enquiry
TI-ZMW111-16-05-SS-PH	End. GW M16x1.5, hose 5/16", 24°, light, AISI 316	8	-	In stock	Enquiry
TI-ZMW111-16-06-SS-PH	End. GW M16x1.5, hose 3/8", 24°, light, AISI 316	10	-	In stock	Enquiry
TI-ZMW111-18-05-SS-PH	End. GW M18x1.5, hose 5/16", 24°, light, AISI 316	8	-	In stock	Enquiry
TI-ZMW111-18-06-SS-PH	End. GW M18x1.5, hose 3/8", 24°, light, AISI 316	10	-	In stock	Enquiry
TI-ZMW111-22-06-SS-PH	End. GW M22x1.5, hose 3/8", 24°, light, AISI 316	10	-	In stock	Enquiry
TI-ZMW111-22-08-SS-PH	End. GW M22x1.5, hose 1/2", 24/60°, light, AISI 316	12	-	In stock	Enquiry
TI-ZMW111-26-10-SS-PH	End. GW M26x1.5, hose 5/8", 24°, light, AISI 316	16	-	In stock	Enquiry
TI-ZMW111-30-12-SS-PH	End. GW M30x2, hose 3/4", 24°, light, AISI 316	20	-	In stock	Enquiry
TI-ZMW111-30X1,5-12-SS-PH	End. GW M30x1.5, hose 3/4", 60°, light, AISI 316	20	-	In stock	Enquiry
TI-ZMW111-36-16-SS-PH	End. GW M36x2, hose 1", 24°, light, AISI 316	25	-	In stock	Enquiry
TI-ZMW111-45-20-SS-PH	End. GW M45x2, hose 1.1/4", 24/60°, lightweight, AISI 316	32	-	In stock	Enquiry
TI-ZMW111-52-24-SS-PH	End. GW M52x2, hose 1.1/2", 24°, light, AISI 316	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.
