Is the DKR 90Â° hydraulic end, type ZBW210, carbon steel compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKR 90Â° hydraulic end, type ZBW210, carbon steel is designed specifically for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. It features a regular hydraulic tail (type Z) for hose insertion, an internal BSP thread with nut, and a 60Â° sealing cone (DKR), and is supplied in carbon steel, galvanized. Provided you use a crimping sleeve matched to the hose construction and size and follow the hose and fitting manufacturerâs crimping specifications (sleeve type, crimp diameter, crimp profile, and tooling), the ZBW210 is compatible with standard crimping sleeves for industrial hydraulic hoses.

Can DKR 90Â° hydraulic end, type ZBW210, carbon steel be used with BSP-threaded hoses requiring a 60Â° sealing cone (DKR)?

Yes. The DKR 90Â° hydraulic end, type ZBW210, carbon steel is specified as a standard hydraulic end with internal BSP thread and nut, featuring a 60Â° sealing cone (DKR) and a 90Â° angle, designed for crimping into hydraulic and industrial hoses using an appropriate crimping sleeve. Material and finish (carbon steel, galvanized) match the description. Therefore it is suitable for use with BSP-threaded hoses that require a 60Â° sealing cone, provided the hose, nut and crimping sleeve are matched to the ZBW210 dimensions and pressure ratings.

Does the DKR 90Â° hydraulic end, type ZBW210, carbon steel require a specific crimping sleeve diameter for 1/2" hoses?

Yes. the DKR 90Â° hydraulic end, type ZBW210, carbon steel requires a specific crimping sleeve diameter matched to the hose and fitting. The product description states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type," which means you must use a sleeve sized for the specific 1/2" hose construction (inner/outer diameters, reinforcement layers) and compatible with the ZBW210 fitting geometry. Sleeve diameter is not universal; it depends on the hose manufacturer and model. To ensure a proper, leak-free crimp and maintain pressure ratings, consult the hose manufacturer's crimp dimension table or the crimping sleeve supplier for the correct sleeve length and outer diameter for a 1/2" hose when used with a DKR 90Â° hydraulic end, type ZBW210. If available, follow any crimping specs from the fitting or hose vendor and use calibrated crimping equipment.

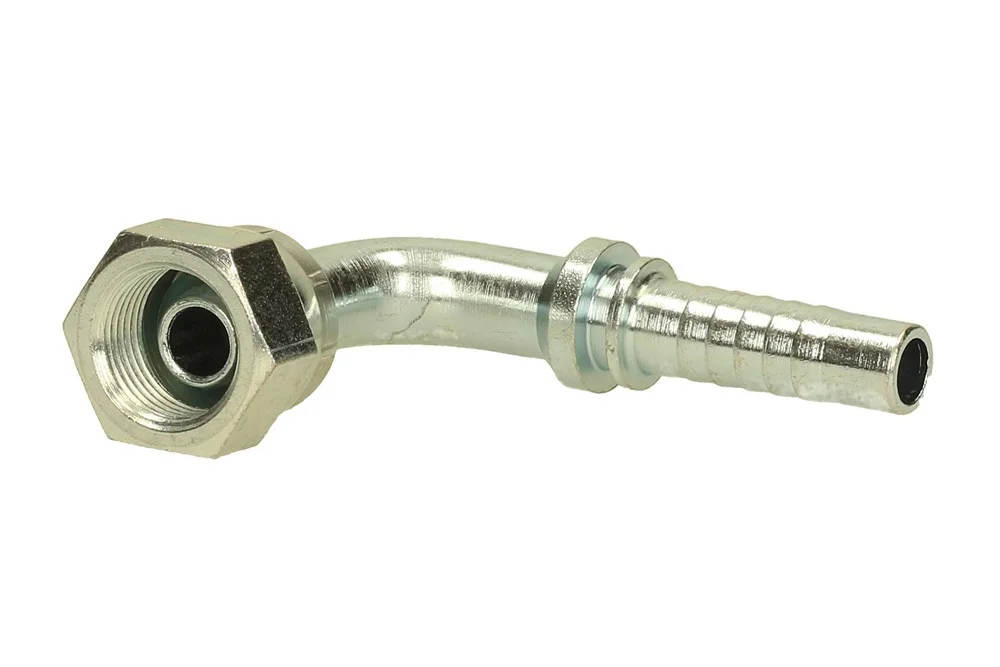

DKR 90° hydraulic end, type ZBW210, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, sealing cone 60° (DKR), angled 90°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW210-02-03	End. 90° G 1/8" BSP hose 3/16", cone 60°	5	-	In stock	Enquiry
TI-ZBW210-02-04	End fitting 90° G 1/8" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBW210-04-03	End. 90° G 1/4" BSP, hose 3/16", cone 60°	5	-	In stock	Enquiry
TI-ZBW210-04-04	End fitting 90° G 1/4" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBW210-04-05	End. 90° G 1/4" BSP hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBW210-04-06	End. 90° G 1/4" BSP hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBW210-06-04	End fitting 90° G 3/8" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBW210-06-05	End. 90° G 3/8" BSP, hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBW210-06-06	End fitting 90° G 3/8" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBW210-06-08	End fitting 90° GW 3/8" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBW210-08-05	End fitting 90° G 1/2" BSP, hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBW210-08-06	End. 90° G 1/2" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBW210-08-08	End fitting 90° GW 1/2" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBW210-08-10	End. 90° G 1/2" BSP hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBW210-10-08	End fitting 90° G 5/8" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBW210-10-10	End. 90° G 5/8" BSP, hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBW210-10-12	End fitting 90° GW 5/8" BSP, hose 3/4", cone 60°	20	-	In stock	Enquiry
TI-ZBW210-12-08	End. 90° G 3/4" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBW210-12-10	End. 90° G 3/4" BSP, hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBW210-12-12	End fitting 90° G 3/4" BSP, hose 3/4", cone 60°	20	-	In stock	Enquiry
TI-ZBW210-16-12	End. 90° G 1" BSP, hose 3/4", cone 60°	20	-	In stock	Enquiry
TI-ZBW210-16-16	End fitting 90° GW 1" BSP, hose 1", cone 60°	25	-	In stock	Enquiry
TI-ZBW210-20-16	End. 90° G 1.1/4" BSP hose 1", cone 60°	25	-	In stock	Enquiry
TI-ZBW210-20-20	Elbow 90° G 1.1/4" BSP, hose 1.1/4", cone 60°	32	-	In stock	Enquiry
TI-ZBW210-24-20	Elbow 90° G 1.1/2" BSP, hose 1.1/4", cone 60°	32	-	In stock	Enquiry
TI-ZBW210-24-24	Elbow 90° G 1.1/2" BSP, hose 1.1/2", cone 60°	38	-	In stock	Enquiry
TI-ZBW210-32-24	End. 90° G 2" BSP, hose 1.1/2", cone 60°	38	-	In stock	Enquiry
TI-ZBW210-32-32	End fitting 90° GW 2" BSP, hose 2", cone 60°	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, sealing cone 60° (DKR), angled 90°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.
