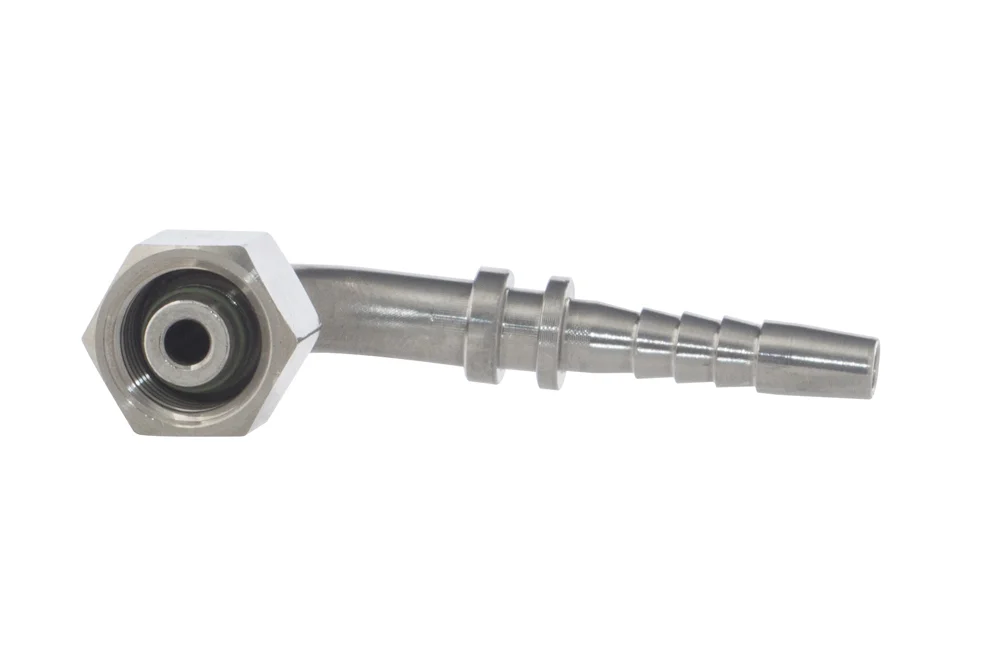

DKOL 90° hydraulic end, type ZMW221, light series, AISI 316 steel (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, O-ring seal on a 24° cone (DKOL), 90° angled, lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves additionally marked with the letters “-PH” at the end of the index). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW221-12-03-SS-PH	End fitting 90° G1/2 M12x1.5, hose 3/16", 24°, o-ring, lightweight, AISI 316	5	-	In stock	Enquiry
TI-ZMW221-12-04-SS-PH	End fitting 90° G1/2 M12x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW221-14-03-SS-PH	End. 90° G1/2 M14x1.5, hose 3/16", 24°, o-ring, lightweight, AISI 316	5	-	In stock	Enquiry
TI-ZMW221-14-04-SS-PH	End. 90° G1/2 M14x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW221-14-05-SS-PH	End. 90° G1/2 M14x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW221-16-04-SS-PH	End. 90° G1/2 M16x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW221-16-05-SS-PH	End. 90° G1/2 M16x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW221-16-06-SS-PH	End. 90° G1/2 M16x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW221-18-04-SS-PH	End fitting 90° G1/2 M18x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW221-18-05-SS-PH	End fitting 90° G1/2 M18x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW221-18-06-SS-PH	End. 90° G1/2 M18x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW221-18-08-SS-PH	End. 90° GW M18x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW221-22-06-SS-PH	End fitting 90° G1/2 M22x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW221-22-08-SS-PH	End. 90° G1/2" M22x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW221-26-08-SS-PH	End. 90° G1 M26x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW221-26-10-SS-PH	End fitting 90° G1 M26x1.5, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW221-26-12-SS-PH	End. 90° G1 M26x1.5, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW221-30-10-SS-PH	End fitting 90° G1/2 M30x2, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW221-30-12-SS-PH	End. 90° G1 M30x2, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW221-36-12-SS-PH	End. 90° G1 M36x2, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW221-36-16-SS-PH	End. 90° GW M36x2, hose 1", 24°, o-ring, lightweight, AISI 316L	25	-	In stock	Enquiry
TI-ZMW221-45-20-SS-PH	End fitting 90° G1/2 M45x2, hose 1.1/4", 24°, o-ring, lightweight, AISI 316	32	-	In stock	Enquiry
TI-ZMW221-45-24-SS-PH	End fitting 90° female thread M45x2, hose 1.1/2", 24°, o-ring, lightweight, AISI 316	38	-	In stock	Enquiry
TI-ZMW221-52-24-SS-PH	End fitting 90° G1/2" M52x2, hose 1.1/2", 24°, o-ring, lightweight, AISI 316	38	-	In stock	Enquiry
