Can Fixed hydraulic end for UHP hose carbon steel, type PNWS110 be sealed with Teflon tape on the internal NPT thread for high-pressure thermoplastic applications?

Yes . Fixed hydraulic end for UHP hose carbon steel, type PNWS110 with an internal NPT thread is intended to be sealed on the thread using Teflon tape or a liquid sealant, per the product description. Teflon (PTFE) tape is commonly used on NPT tapered threads to fill gaps and prevent leakage; when applied correctly it provides an effective seal for many hydraulic applications. However, note these caveats for high-pressure UHP thermoplastic service: - Use high-quality PTFE tape rated for hydraulic/oil service and compatible with the fluid and temperatures in your system. Standard thin plumbing tape may be inadequate. - Wrap tape in the thread direction (clockwise when looking into the fitting) and apply sufficient layers without overbuilding the thread engagement; 2â4 wraps is typical. - Ensure proper torque and thread engagement per fitting/hose manufacturer recommendations; over-torquing can damage threads or fittings. - For ultra-high-pressure (UHP) systems, some installers prefer liquid anaerobic thread sealants specifically rated for high pressure and compatible with hydraulic fluids for a more robust seal. - Verify chemical compatibility and pressure ratings: confirm that both PTFE tape or chosen sealant and the galvanized carbon steel are suitable for your fluid, temperature, and the operating pressure of the UHP thermoplastic hose assembly. - Follow crimp sleeve and hose manufacturer assembly procedures and any industry standards; improper sealing or assembly can lead to leaks or failure. In summary: Fixed hydraulic end for UHP hose carbon steel, type PNWS110 can be sealed with Teflon tape on the internal NPT thread if you use an appropriate PTFE tape and follow proper application, torque, and manufacturer compatibility/assembly guidelines; for demanding UHP service consider using a high-pressure-rated liquid sealant and confirm with the hose/fitting supplier.

Is Fixed hydraulic end for UHP hose carbon steel, type PNWS110 suitable for use with liquid thread sealants on internal NPT threads?

Fixed hydraulic end for UHP hose carbon steel, type PNWS110: Yes. The description states the fitting seals on internal NPT threads using Teflon tape or liquid sealant, so it is suitable for use with liquid thread sealants on internal NPT threads. Ensure proper application of the sealant compatible with carbon steel and the fluid handled, and follow manufacturer torque and installation guidelines to avoid over-torquing or contamination of the UHP hose.

Can Fixed hydraulic end for UHP hose carbon steel, type PNWS110 be crimped with a sleeve designed for thermoplastic UHP hoses?

Yes. Fixed hydraulic end for UHP hose carbon steel, type PNWS110 can be crimped with a sleeve designed for thermoplastic UHP hoses. The product description explicitly states it is a hydraulic end fitting (type P â with a special "tail" for thermoplastic hose), fixed, with internal NPT thread, and is designed for crimping in UHP thermoplastic hoses using a crimp sleeve suitable for the type of hose. Ensure you use a crimp sleeve specified for the particular thermoplastic UHP hose model and follow manufacturer crimp dimensions, tooling, and pressure ratings. Also verify compatibility of sealing method (Teflon tape or liquid sealant on the NPT thread) and that the carbon steel, galvanized material meets your applicationâs corrosion and pressure requirements.

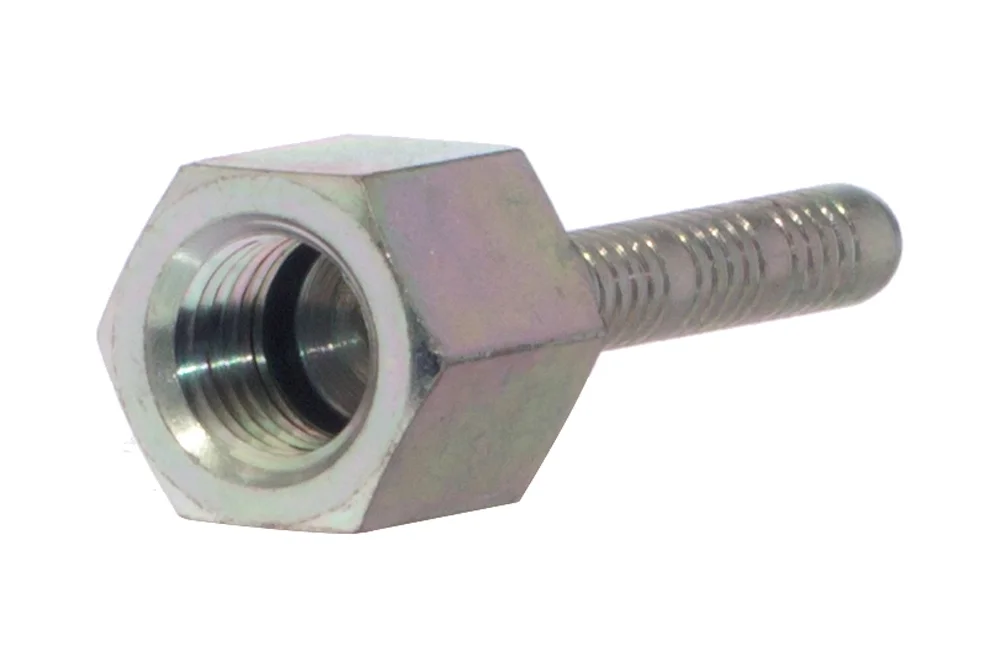

Fixed hydraulic end for UHP hose carbon steel, type PNWS110

Additional information

Material	CS – steel (cast iron)

Hydraulic end fitting (type P – with a special “tail” for thermoplastic hose) with internal NPT thread, fixed, sealing on the thread using Teflon tape or liquid sealant. Designed for crimping in UHP thermoplastic hoses using a crimp sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TI-PNWS110-04-04-TO	End. GW 1/4" NPT, thermoplastic hose 1/4", fixed	6	800	In stock	0 zł		Enquiry
TI-PNWS110-06-04-TO	End. GW 3/8" NPT, thermoplastic hose 1/4", fixed	6	800	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Hydraulic end fitting (type P – with a special “tail” for thermoplastic hose) with internal NPT thread, fixed, sealing on the thread using Teflon tape or liquid sealant. Designed for crimping in UHP thermoplastic hoses using a crimp sleeve suitable for the type of hose. Material: carbon steel, galvanized.
