Is the CES hydraulic end for UHP heavy series hose, carbon steel, type PMZ112 compatible with my thermoplastic hose and which crimping sleeve should be used?

Yes . the CES hydraulic end for UHP heavy series hose, carbon steel, type PMZ112 is intended for use with UHP thermoplastic hoses. It is a Pâtype fitting with a special tail for thermoplastic hose, external metric thread and 24Â° cone sealing (CES), heavy series, made of galvanized carbon steel. It is designed specifically to be crimped into UHP thermoplastic hose assemblies. Which crimping sleeve to use: choose a crimping sleeve that matches the exact thermoplastic hose model and the heavy (UHP) series specification. The sleeve must be sized for the hose O.D. and wall construction and be rated for UHP service; use the manufacturerâs recommended sleeve for your hose type. If available, use the sleeve part number or series specified in the hose makerâs crimping table for heavy/UHP thermoplastic hose when assembled with CES (24Â° cone) fittings. If you provide the exact thermoplastic hose model and O.D., I can recommend the correct sleeve size/part.

Can CES hydraulic end for UHP heavy series hose, carbon steel, type PMZ112 be used with different inner diameters of thermoplastic hose and which crimp sleeve fits?

Yes - the CES hydraulic end for UHP heavy series hose, carbon steel, type PMZ112 is intended for use with UHP thermoplastic hoses having different inner diameters, provided you select the correct matching crimp sleeve for the specific hose ID. PMZ112 is a Pâtype fitting with a special tail for thermoplastic hose and seals on a 24Â° cone (CES); it is crimped onto the hose using a sleeve sized to the hose construction and inner diameter. To ensure proper assembly, use the crimp sleeve recommended by the hose manufacturer for that hose model and ID and follow their crimp dimensions and tooling specifications. Incorrect sleeve size or crimp parameters will compromise seal and safety.

What crimping pressure and die specifications are required for CES hydraulic end for UHP heavy series hose, carbon steel, type PMZ112?

For the CES hydraulic end for UHP heavy series hose, carbon steel, type PMZ112, crimping must be performed with a compatible UHP thermoplastic hose crimping sleeve sized for the heavy series. Die and pressure requirements depend on the exact hose outer diameter (OD) and sleeve design; typical specifications are: - Die type: heavy-series UHP thermoplastic hose dies matching the hose OD (use dies for the specific sleeve profile supplied for PMZ112). Dies must support full, even compression of the crimping sleeve without deforming the hose or fitting tail. - Crimping pressure: follow manufacturerâs recommended pressure for heavy-series UHP thermoplastic hosesâcommonly in the range of 700â1600 bar (10,000â23,000 psi) depending on hose size and material. Select the precise setting from the hose and sleeve data sheet. - Crimp diameter/tolerance: final crimp diameter is determined by the die set and sleeve; use the die index value provided for the specific hose OD and sleeve. Typical tolerance Â±0.2 mm; verify with manufacturer chart. - Procedure notes: ensure correct sleeve-to-hose alignment on the PMZ112 tail, use calibrated hydraulic crimper, perform pull and pressure tests per hose manufacturer and ISO standards after crimping. - If no exact chart available, obtain the hose and sleeve manufacturerâs crimping table for the heavy series UHP thermoplastic hose and apply the die number and crimp force specified for the hose OD when using PMZ112. Always confirm final die number and hydraulic pressure from the hose/sleeve manufacturerâs technical sheet for CES hydraulic end for UHP heavy series hose, carbon steel, type PMZ112 before crimping.

A fitting hydraulic CES for hose UHP series heavy, steel carbon, type PMZ112

Additional information

Material	CS – steel (cast iron)

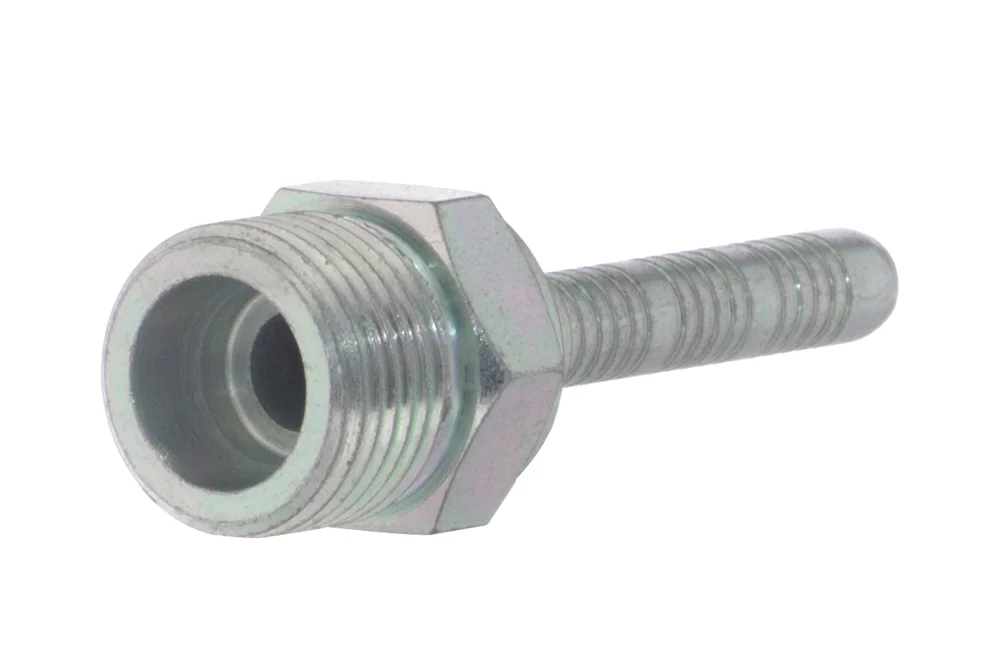

A hydraulic fitting (type P – with a special “tail” for a thermoplastic hose) with a thread external metric, sealing on a 24° cone (CES), series heavy. Intended for crimping in UHP thermoplastic hoses by means of a clamping ferrule appropriate for the hose type. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TI-PMZ112-18-04-TO	Fitting M18x1.5 male, hose thermoplastic 1/4", 24°, heavy, CES	6	800	In stock	0 zł		Enquiry
TI-PMZ112-22-06-TO	Fitting M22x1.5 male, hose thermoplastic 3/8", 24°, heavy, CES	10	800	In stock	0 zł		Enquiry
