Can Single braided steel hydraulic hose EN 853 1SN be used continuously at +125Â°C or only temporarily?

Single braided steel hydraulic hose EN 853 1SN cannot be used continuously at +125Â°C. According to the provided specification, its normal operating temperature range is -40Â°C to +100Â°C; the +125Â°C value is explicitly marked as a temporary (short-term) limit. For water and air the continuous maximum is even lower (+70Â°C). Therefore continuous exposure to +125Â°C would exceed the recommended operating temperature and may degrade the inner/outer rubber, reduce working pressure capability and shorten service life . only short-term use at +125Â°C is permitted.

Does Single braided steel hydraulic hose EN 853 1SN require outer layer micro-perforation when used with compressed air above 17 bar?

Yes. Single braided steel hydraulic hose EN 853 1SN requires outer layer micro-perforation when used with compressed air above 17 bar, per the provided General-purpose hydraulic hose description.

Is Single braided steel hydraulic hose EN 853 1SN suitable for use with water at temperatures up to +70Â°C?

Yes. Single braided steel hydraulic hose EN 853 1SN is suitable for use with water at temperatures up to +70Â°C. The general-purpose specification lists an operating temperature range of -40Â°C to +100Â°C (temporarily +125Â°C), and specifically states that for water and air the maximum operating temperature is +70Â°C. Ensure other application factors (pressure, hose diameter, and any additional requirements such as micro-perforation for air above 17 bar) are met.

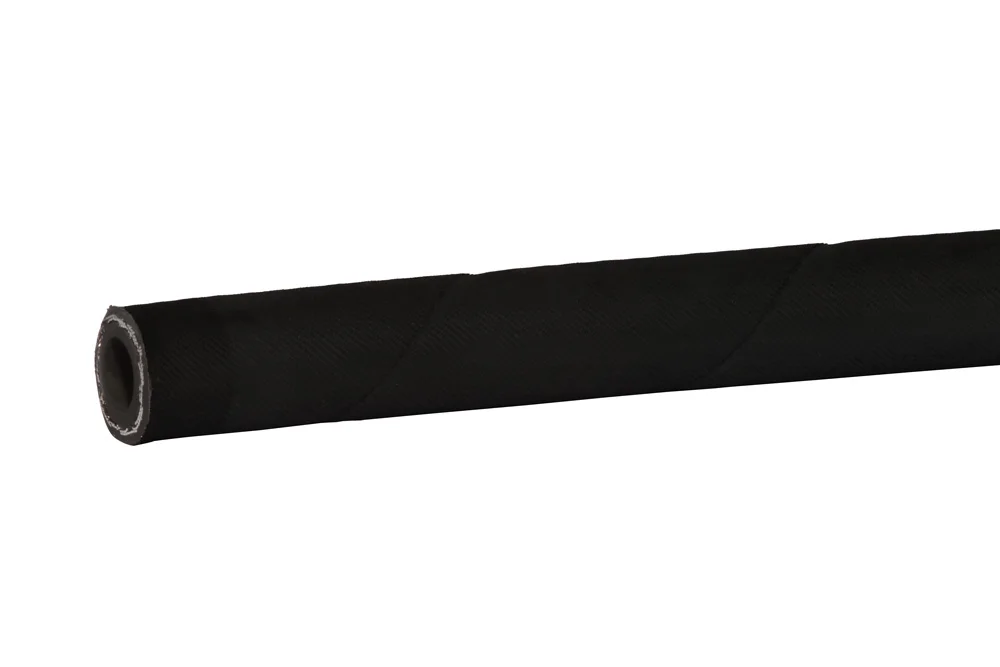

Hydraulic hose with single a braid steel EN 853 1SN

All products, Hydraulic rubber hoses/

Additional information

Material	synthetic rubber
Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-40
Standard length [m]	80

A general-purpose hydraulic hose. standards: EN 853 1SN, ISO 1436-1SN/R1AT, SAE 100R1AT. Inner layer: black, oil-resistant synthetic rubber. Reinforcement: a single steel braid. Outer layer: black, oil-resistant synthetic rubber. Working pressure: from 40 bar to 250 bar depending on the diameter hose. Operating temperature: od -40°C up to +100°C (momentarily +125°C). For water and air, the maximum working temperature is +70°C. For air above 17 bar, microperforation of the outer layer is required.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HW-1SN-06	Hydraulic hose EN 853 1SN 1/4"	6	225	In stock	Enquiry
HW-1SN-08	Hydraulic hose EN 853 1SN 5/16"	8	215	In stock	Enquiry
HW-1SN-10	Hydraulic hose EN 853 1SN 3/8"	10	180	In stock	Enquiry
HW-1SN-13	Hydraulic hose EN 853 1SN 1/2"	12	160	In stock	Enquiry
HW-1SN-16	Hydraulic hose EN 853 1SN 5/8"	16	130	In stock	Enquiry
HW-1SN-19	Hydraulic hose EN 853 1SN 3/4"	20	105	In stock	Enquiry
HW-1SN-25	Hydraulic hose EN 853 1SN 1"	25	88	In stock	Enquiry
HW-1SN-32	Hydraulic hose EN 853 1SN 1.1/4"	32	63	In stock	Enquiry
HW-1SN-38	Hydraulic hose EN 853 1SN 1.1/2"	38	50	In stock	Enquiry
HW-1SN-51	Hydraulic hose EN 853 1SN 2"	50	40	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A general-purpose hydraulic hose. standards: EN 853 1SN, ISO 1436-1SN/R1AT, SAE 100R1AT. Inner layer: black, oil-resistant synthetic rubber. Reinforcement: a single steel braid. Outer layer: black, oil-resistant synthetic rubber. Working pressure: from 40 bar to 250 bar depending on the diameter hose. Operating temperature: od -40°C up to +100°C (momentarily +125°C). For water and air, the maximum working temperature is +70°C. For air above 17 bar, microperforation of the outer layer is required.
