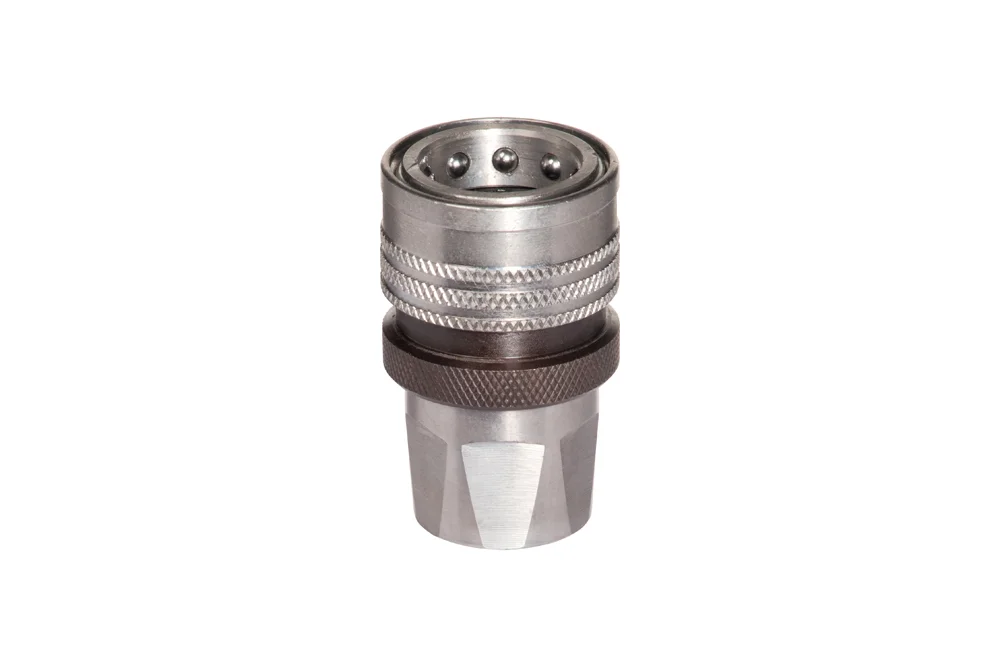

A hydraulic quick coupling with a valve and a pressure eliminator, socket with female thread BSP, of zinc-nickel coated steel, HOLMBURY
Quick-coupling socket HOLMBURY (NORDIC INTERCHANGE) with a shut-off valve and a BSP female thread, it has a built-in pressure eliminator that facilitates connection when high residual pressure is present in the system. The quick couplings are intended for heavy-duty operating conditions. The sockets have an additional O-ring, which makes them ideally suited for gas installations, and a ring to prevent accidental disconnection. Applications: general industrial, power hydraulics (hydraulic oil). Material: steel with a zinc-nickel coating. Working pressure: up to 350 bar (depending on the diameter). Safety factor 4:1. Sealing: NBR rubber. Operating temperature: from -25°C to +100°C. The flow is given for a pressure drop of 3 bar.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Quick-coupling socket HOLMBURY (NORDIC INTERCHANGE) with a shut-off valve and a BSP female thread, it has a built-in pressure eliminator that facilitates connection when high residual pressure is present in the system. The quick couplings are intended for heavy-duty operating conditions. The sockets have an additional O-ring, which makes them ideally suited for gas installations, and a ring to prevent accidental disconnection. Applications: general industrial, power hydraulics (hydraulic oil). Material: steel with a zinc-nickel coating. Working pressure: up to 350 bar (depending on the diameter). Safety factor 4:1. Sealing: NBR rubber. Operating temperature: from -25°C to +100°C. The flow is given for a pressure drop of 3 bar.
Additional information
| Material | CS – steel (cast iron) |
|---|
