Is the Hydraulic quick coupling with valve, socket with GW BSP, in steel, DNP PTV1 compatible with Tema series T quick couplings?

Yes. Hydraulic quick coupling with valve, socket with GW BSP, in steel, DNP PTV1 is compatible with Tema series T quick couplings. The product description explicitly states it is interchangeable with Tema series T quick couplings. It is made of galvanized steel, uses an internal BSP threaded valve, has NBR socket sealing, supports hydraulic oil (and gas with additional Oâring), operates from â25Â°C to +100Â°C, and handles working pressures up to 370 bar depending on size.so compatibility applies within those material, temperature and pressure limits.

Can the Hydraulic quick coupling with valve, socket with GW BSP, in steel, DNP PTV1 be used with gas installations due to its O-ring sealing?

Yes. Hydraulic quick coupling with valve, socket with GW BSP, in steel, DNP PTV1 can be used with gas installations thanks to its additional O-ring sealing. The product description specifies intended use in hydraulic systems (hydraulic oil) and, thanks to the O-ring, for gas installations. Sealing material is NBR, operating temperature â25Â°C to +100Â°C, and working pressure up to 370 bar (size-dependent). Verify compatibility with the specific gas type, pressure, temperature range and applicable standards/regulations before installation.

Does the Hydraulic quick coupling with valve, socket with GW BSP, in steel, DNP PTV1 meet ISO interchangeability standards?

Hydraulic quick coupling with valve, socket with GW BSP, in steel, DNP PTV1 Format: Based on the provided description, the DNP PTV1 socket is stated to be interchangeable with Tema series T quick couplings. Tema T series are commonly manufactured to ISO quick coupling dimensions (many Tema-compatible products follow ISO 7241-1/-2 or similar ISO interchangeability standards). However, the description does not explicitly state compliance with a specific ISO standard number or certification. Therefore, while the claim of interchangeability with Tema series T suggests functional compatibility with widely used ISO-formatted couplings, you cannot conclusively confirm ISO interchangeability without explicit manufacturer certification or a reference to the exact ISO standard (e.g., ISO 7241-1 or ISO 7241-2) and size designation. To be certain, request from the supplier/manufacturer: (1) the exact ISO standard(s) the product conforms to, (2) size/type designation consistent with ISO, and (3) any test/certification documents proving interchangeability.

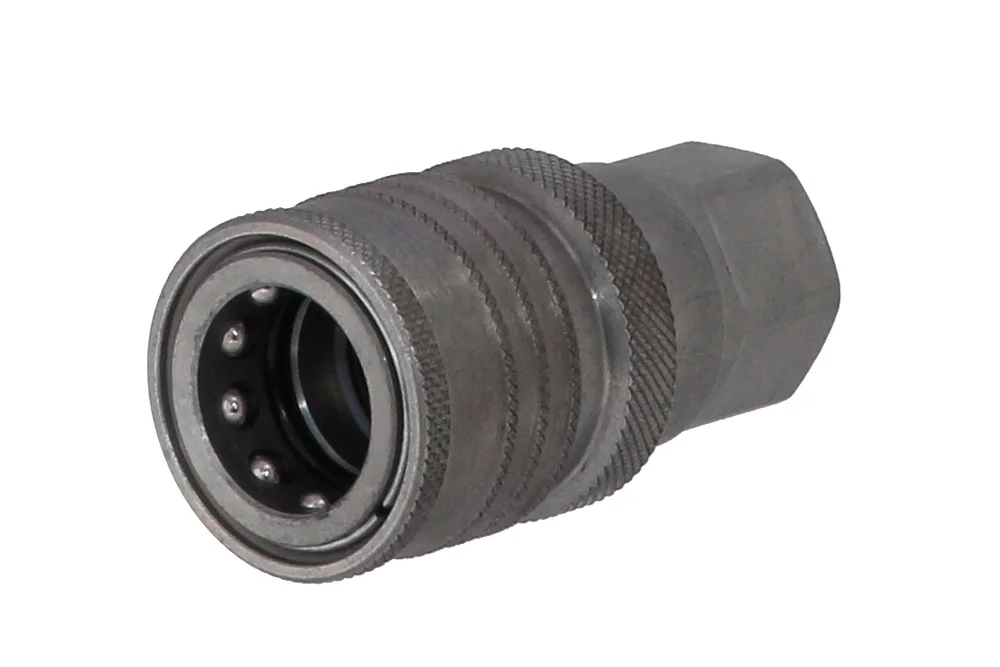

Hydraulic quick coupling with valve, socket with GW BSP, in steel, DNP PTV1

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 2

DNP PTV1 quick coupling socket with internal BSP threaded valve, for use in hydraulic systems (hydraulic oil) and, thanks to additional sealing in the form of an O-ring, for gas installations. Interchangeable with Tema series T quick couplings. Material: galvanized steel. Socket sealing: NBR. Operating temperature: from -25°C to +100°C. Working pressure: up to 370 bar (depending on the size of the quick coupling).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-PTV1-1010002	DN10 socket with 3/8" BSP female thread, nitrile seal	-	370	In stock	Enquiry
DP-PTV1-1313002	Socket DN13 with 1/2" BSP female thread, nitrile seal	-	350	In stock	Enquiry
DP-PTV1-2019002	DN20 socket with 3/4" BSP female thread, nitrile seal	-	300	In stock	Enquiry
DP-PTV1-2525002	DN25 socket with 1" BSP female thread, nitrile seal	-	300	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DNP PTV1 quick coupling socket with internal BSP threaded valve, for use in hydraulic systems (hydraulic oil) and, thanks to additional sealing in the form of an O-ring, for gas installations. Interchangeable with Tema series T quick couplings. Material: galvanized steel. Socket sealing: NBR. Operating temperature: from -25°C to +100°C. Working pressure: up to 370 bar (depending on the size of the quick coupling).
