Is the Hydraulic quick coupling with valve, socket with GW BSP, NPT, TEMA STANDARD suitable for gas installations and equipped with a safety ring to prevent accidental disconnection?

Hydraulic quick coupling with valve, socket with GW BSP, NPT, TEMA STANDARD Format . Yes. The socket version of the TEMA STANDARD (NORDIC RANGE) with shut-off valve and internal BSP/NPT thread is equipped with an additional Oâring (besides the standard 3/16") making it suitable for gas installations, and it features a safety ring to prevent accidental disconnection. It is a one-sided shut-off coupling usable in sizes 3/16" and 1/4" only from the socket side, designed for heavyâduty conditions. Materials, sealing options (Viton, NBR), working pressures (up to 450 bar depending on diameter), safety factor 4:1 and operating temperature ranges support use with gases (within specified limits). Ensure chosen size, seal material and pressure/temperature conditions match your specific gas type and installation standards before use.

Can the Hydraulic quick coupling with valve, socket with GW BSP, NPT, TEMA STANDARD be used only from the socket side for 3/16" and 1/4" sizes?

Hydraulic quick coupling with valve, socket with GW BSP, NPT, TEMA STANDARD Format: Yes. This one-sided shut-off quick coupling is designed to be used exclusively from the socket side for sizes 3/16" and 1/4". The socket (NORDIC RANGE) includes an additional O-ring (making the 3/16" suitable for gas installations) and a safety ring to prevent accidental disconnection. It is intended for heavy-duty hydraulic and industrial applications (hydraulic oil, water, steam, fuels, oils, gases, chemicals), with materials chrome-plated brass up to 1" and galvanized steel above, working pressures up to 450 bar (depending on diameter), sealing in Viton or NBR, operating temperatures -30Â°C to +100Â°C (NBR) and -15Â°C to +200Â°C (Viton), safety factor 4:1.

Does the Hydraulic quick coupling with valve, socket with GW BSP, NPT, TEMA STANDARD use Viton or NBR seals for different temperatures?

Hydraulic quick coupling with valve, socket with GW BSP, NPT, TEMA STANDARD uses both Viton and NBR seals depending on the temperature range of the application. NBR seals are suitable for temperatures from â30Â°C to +100Â°C; Viton seals are suitable for temperatures from â15Â°C to +200Â°C. Choose NBR for lower-temperature or standard hydraulic applications and Viton for higher-temperature or chemically aggressive environments.

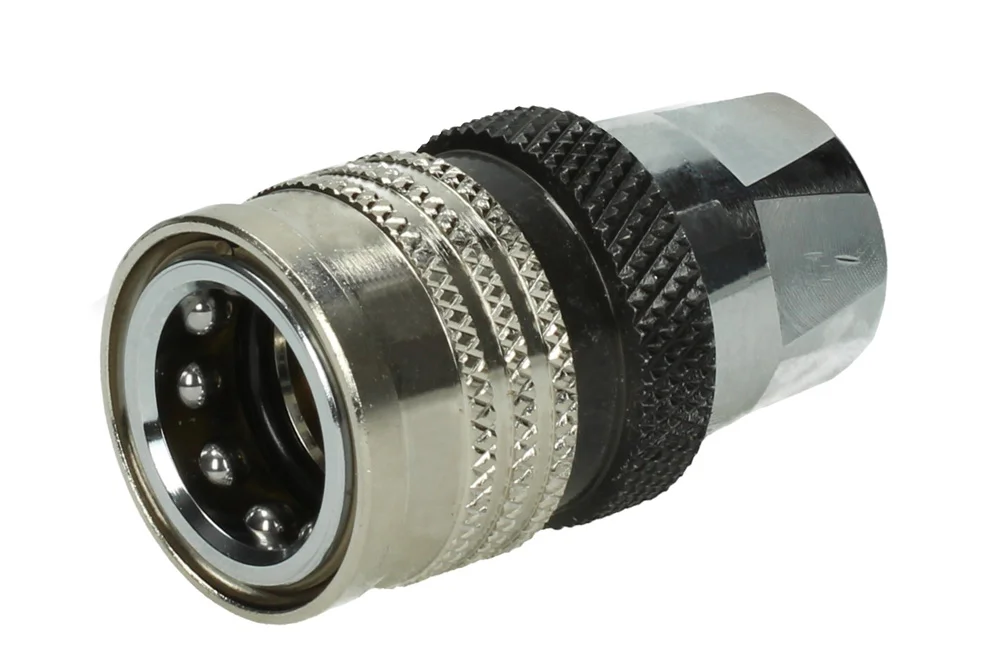

Hydraulic quick coupling with valve, socket with GW BSP, NPT, TEMA STANDARD

All products, Hydraulic quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10, 2

TEMA STANDARD quick coupling socket (NORDIC RANGE) with shut-off valve and internal BSP and NPT thread. The socket has an additional o-ring (besides the size 3/16″), making it suitable for gas installations. It also features a safety ring to prevent accidental disconnection. As a one-sided shut-off quick coupling, it can only be used for sizes 3/16″ and 1/4″, exclusively from the socket side. It is designed for heavy-duty working conditions. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: chrome-plated brass up to size 1″, galvanized steel above 1″. Working pressure: up to 450 bar (depending on diameter). Safety factor 4:1. Sealing: viton, NBR. Operating temperature: from -30°C to +100°C (for NBR), from -15°C to +200°C (for viton). Flow has been provided for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TA-H-10010	Socket with 1" BSP thread, nitrile seal, with valve	-	250	In stock	Enquiry
TA-H-10010NPT	1" NPT socket, nitrile seal, with valve	-	250	In stock	Enquiry
TA-H-10010V	Socket with 1" BSP thread, Viton seal, with valve	-	250	In stock	Enquiry
TA-H-15010	Socket with GW 1.1/2" BSP, nitrile seal, with valve	-	200	In stock	Enquiry
TA-H-15010V	Socket with GW 1.1/2" BSP, Viton seal, with valve	-	200	In stock	Enquiry
TA-H-20010	Socket with 2" BSP thread, nitrile seal, with valve	-	180	In stock	Enquiry
TA-H-20010V	Socket with 2" BSP thread, Viton seal, with valve	-	180	In stock	Enquiry
TA-H-2310	Socket with GW 1/8" BSP, nitrile seal, with valve	-	200	In stock	Enquiry
TA-H-2310V	Socket with GW 1/8" BSP, Viton seal, with valve	-	200	In stock	Enquiry
TA-H-2510	Socket with 1/4" BSP thread, nitrile seal, with valve	-	450	In stock	Enquiry
TA-H-2510NPT	Socket with 1/4" NPT, nitrile seal, with valve	-	450	In stock	Enquiry
TA-H-2510V	Socket with 1/4" BSP thread, Viton seal, with valve	-	450	In stock	Enquiry
TA-H-3810	Socket with GW 3/8" BSP, nitrile seal, with valve	-	450	In stock	Enquiry
TA-H-3810NPT	3/8" NPT socket, nitrile seal, with valve	-	450	In stock	Enquiry
TA-H-3810V	Socket with GW 3/8" BSP, Viton seal, with valve	-	450	In stock	Enquiry
TA-H-5010	Socket with GW 1/2" BSP, nitrile seal, with valve	-	300	In stock	Enquiry
TA-H-5010NPT	Socket with GW 1/2" NPT, nitrile seal, with valve	-	300	In stock	Enquiry
TA-H-5010V	Socket with GW 1/2" BSP, Viton seal, with valve	-	300	In stock	Enquiry
TA-H-7510	Socket with GW 3/4" BSP, nitrile seal, with valve	-	280	In stock	Enquiry
TA-H-7510NPT	Socket with 3/4" NPT, nitrile seal, with valve	-	280	In stock	Enquiry
TA-H-7510V	Socket with GW 3/4" BSP, Viton seal	-	280	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

TEMA STANDARD quick coupling socket (NORDIC RANGE) with shut-off valve and internal BSP and NPT thread. The socket has an additional o-ring (besides the size 3/16″), making it suitable for gas installations. It also features a safety ring to prevent accidental disconnection. As a one-sided shut-off quick coupling, it can only be used for sizes 3/16″ and 1/4″, exclusively from the socket side. It is designed for heavy-duty working conditions. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: chrome-plated brass up to size 1″, galvanized steel above 1″. Working pressure: up to 450 bar (depending on diameter). Safety factor 4:1. Sealing: viton, NBR. Operating temperature: from -30°C to +100°C (for NBR), from -15°C to +200°C (for viton). Flow has been provided for a pressure drop of 3 bar.
