Is the Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD suitable for gas installations thanks to the additional O-ring and safety ring?

Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD Format . Yes. The socket includes an additional O-ring (besides the standard 3/16"), specifically noted as making it suitable for gas installations, and it also features a safety ring to prevent accidental disconnection. Materials (chrome-plated brass up to 1", galvanized steel above 1"), available seal materials (Viton or NBR), and the specified working pressure (up to 450 bar depending on diameter) further support safe use with gases when the correct seal material is chosen for the gas type and operating temperature. Important notes: confirm compatibility of seal material (Viton vs NBR) with the specific gas and temperature range, ensure pressure and safety factor meet your application requirements, and follow applicable gas installation standards and local regulations.

Can the Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD be used with steam and hot oils given its NBR/Viton seals and temperature limits?

Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD: Yes, it can be used with steam and hot oils only if the Viton (FKM) sealing option is fitted and the service temperature does not exceed +200Â°C. NBR seals are limited to +100Â°C and are unsuitable for high-temperature steam/hot-oil applications. Also verify compatibility of chrome-plated brass (â¤1") or galvanized steel (>1") with the specific steam/oil chemistry and operating pressure, ensure the working pressure (up to 450 bar depending on size) and safety factor meet system demands, and account for thermal expansion and application-specific standards before use.

Does the Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD require special maintenance for gas-service O-rings?

Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD Format. does it require special maintenance for gas-service O-rings? Yes. Because the socket includes an additional O-ring specifically to make it suitable for gas installations, you should follow special maintenance practices for gas-service O-rings: - Use the correct O-ring material: ensure O-rings are viton (FKM) or NBR as specified; for many gases, viton is preferable due to broader chemical compatibility and higher temperature resistance. - Inspect frequently: inspect O-rings and sealing surfaces regularly for cuts, nicks, hardening, swelling or chemical attack, especially before connecting for gas service. - Replace proactively: replace O-rings on a scheduled basis or immediately if any damage or deformation is found; do not rely solely on visual signs when used with gases. - Clean and lubricate correctly: clean seating surfaces with compatible solvents and apply a thin film of manufacturer-recommended, gas-compatible lubricant to ease assembly and protect the seal. - Avoid cross-contamination: use dedicated O-rings or couplings for gas service when possible; avoid mixing O-rings previously exposed to incompatible fluids. - Follow temperature and pressure limits: operate within the specified temperature ranges (-30Â°C to +100Â°C for NBR; -15Â°C to +200Â°C for viton) and working pressure ratings to prevent premature seal failure. - Torque and assembly: ensure proper assembly without over-stretching or twisting O-rings; verify the safety ring and coupling engagement to prevent accidental disconnection. Following these precautions ensures safe, leak-free operation of Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD Format in gas applications.

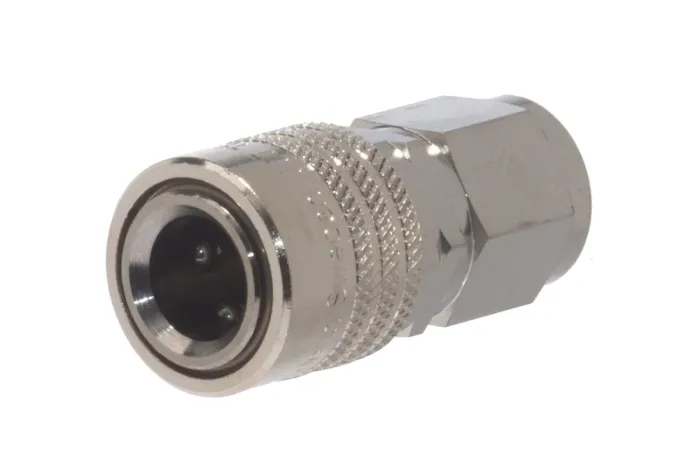

Hydraulic quick coupling without valve, socket with GW BSP, TEMA STANDARD

All products, Hydraulic quick couplings/

Additional information

Material	B – brass (bronze)

Socket without valve quick coupling TEMA STANDARD (NORDIC RANGE) with internal BSP thread. The socket has an additional o-ring (besides size 3/16″), making it suitable for gas installations. It also features a safety ring to prevent accidental disconnection. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: chrome-plated brass up to size 1″, galvanized steel above 1″. Working pressure: up to 450 bar (depending on diameter). Safety factor 4:1. Sealing: viton or NBR. Operating temperature: from -30°C to +100°C (for NBR), from -15°C to +200°C (for viton). Flow rate is given at Δp = 3 bar [l/min].

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TA-H-10010UV	Socket with 1" BSP thread, nitrile seal, without valve	-	250	In stock	Enquiry
TA-H-10010VUV	Socket with 1" BSP thread, Viton seal, without valve	-	250	In stock	Enquiry
TA-H-15010UV	Socket with GW 1.1/2" BSP, nitrile seal, without valve	-	200	In stock	Enquiry
TA-H-15010VUV	Socket with GW 1.1/2" BSP, Viton seal, without valve	-	200	In stock	Enquiry
TA-H-20010UV	Socket with 2" BSP thread, nitrile seal, without valve	-	180	In stock	Enquiry
TA-H-20010VUV	Socket with 2" BSP thread, Viton seal, without valve	-	180	In stock	Enquiry
TA-H-2310UV	Socket with GW 1/8" BSP, nitrile seal, without valve	-	200	In stock	Enquiry
TA-H-2310VUV	Socket with GW 1/8" BSP, Viton seal, without valve	-	200	In stock	Enquiry
TA-H-2510UV	Socket with 1/4" BSP thread, nitrile seal, without valve	-	450	In stock	Enquiry
TA-H-2510VUV	Socket with 1/4" BSP thread, Viton seal, without valve	-	450	In stock	Enquiry
TA-H-3810UV	Socket with GW 3/8" BSP, nitrile seal, without valve	-	450	In stock	Enquiry
TA-H-3810VUV	Socket with GW 3/8" BSP, Viton seal, without valve	-	450	In stock	Enquiry
TA-H-5010UV	Socket with GW 1/2" BSP, nitrile seal, without valve	-	300	In stock	Enquiry
TA-H-5010VUV	Socket with GW 1/2" BSP, Viton seal, without valve	-	300	In stock	Enquiry
TA-H-7510UV	Socket with GW 3/4" BSP, nitrile seal, without valve	-	280	In stock	Enquiry
TA-H-7510VUV	Socket with GW 3/4" BSP, Viton seal, without valve	-	280	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Socket without valve quick coupling TEMA STANDARD (NORDIC RANGE) with internal BSP thread. The socket has an additional o-ring (besides size 3/16″), making it suitable for gas installations. It also features a safety ring to prevent accidental disconnection. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: chrome-plated brass up to size 1″, galvanized steel above 1″. Working pressure: up to 450 bar (depending on diameter). Safety factor 4:1. Sealing: viton or NBR. Operating temperature: from -30°C to +100°C (for NBR), from -15°C to +200°C (for viton). Flow rate is given at Δp = 3 bar [l/min].
