Is the IBC connector for GW/GW pallet containers, polypropylene compatible with standard IBC container trapezoidal threads per DIN EN 12713?

Yes. The IBC connector for GW/GW pallet containers, polypropylene is compatible with standard IBC container trapezoidal threads per DIN EN 12713. The connector features internal trapezoidal threads compliant with DIN EN 12713, and these standard trapezoidal threads are stated to be 100% compatible with threads in IBC containers from various manufacturers. Material and seal (polypropylene body, LDPE seal), plus specified pressure and temperature ratings, support reliable use with standard DIN EN 12713-threaded IBC containers.

Can the IBC connector for GW/GW pallet containers, polypropylene, withstand continuous use at +80Â°C without seal degradation?

IBC connector for GW/GW pallet containers, polypropylene: No - continuous use at +80Â°C is not recommended. Specification lists an operating temperature range of -10Â°C to +70Â°C with only temporary exposure up to +80Â°C. The seal is low-density polyethylene (LDPE), which will be more prone to softening and accelerated aging at sustained +80Â°C, risking degradation and loss of tightness. For safe long-term performance and to maintain seal integrity choose continuous-use temperatures within the stated +70Â°C limit or consult the manufacturer for high-temperature seal options or validated testing at +80Â°C.

Does the IBC connector for GW/GW pallet containers, polypropylene include LDPE seals suitable for food-grade use?

Yes. The IBC connector for GW/GW pallet containers, polypropylene includes a seal made of low-density polyethylene (LDPE). LDPE is commonly used in food-contact applications and, when produced under appropriate food-grade manufacturing and quality controls, is suitable for food-grade use. The product data specifies LDPE seals, working pressure up to 7 bar and operating temperature -10Â°C to +70Â°C (briefly up to +80Â°C), but it does not explicitly state a food-grade certification (e.g., EU Regulation 10/2011 or FDA). If you require formal food-grade confirmation, request the manufacturer's certification or declaration of conformity for food contact materials to ensure compliance with the relevant regulations for your market.

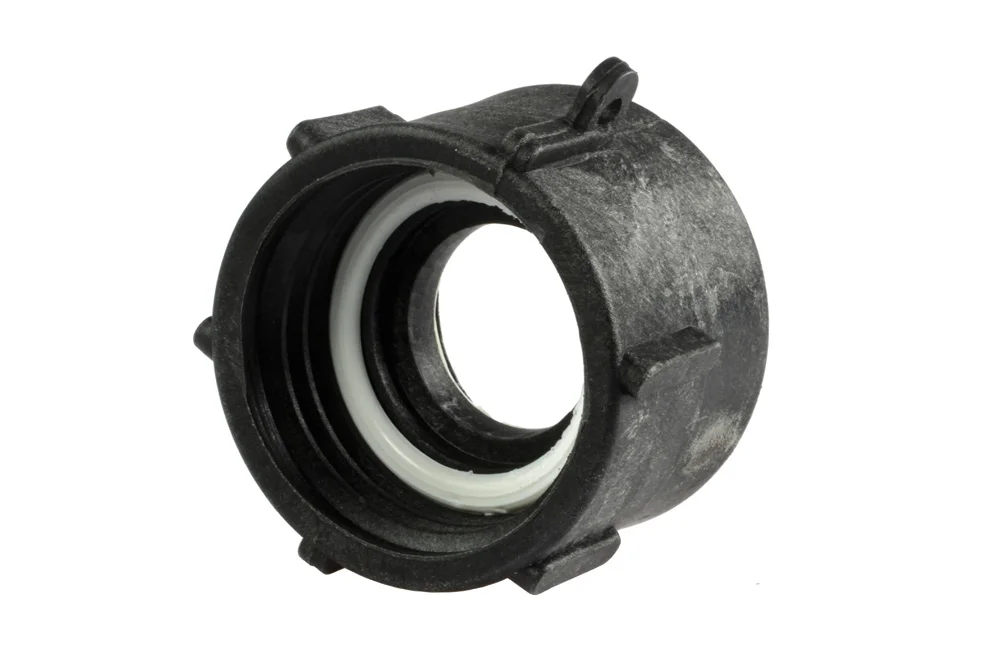

Coupling IBC for IBC containers with female thread/female, polypropylene

Additional information

Material	P – material (plastic)

Coupling IBC on both sides with a thread internal trapezoidal compliant with the DIN EN 12713 standard. The trapezoidal threads that the IBC couplings are fitted with as standard match 100% the threads in the IBC containers of various manufacturers. Material: polypropylene. gasket: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (momentarily up to +80°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-IBF060-F050X	Coupling IBC with female S60x6 / 1/2" BSP female	-	7	In stock	Enquiry
AC-IBF060-F075X	Coupling IBC with female S60x6 / 3/4" BSP female	-	7	In stock	Enquiry
AC-IBF060-F100X	Coupling IBC with female S60x6 / 1" BSP female	-	7	In stock	Enquiry
AC-IBF060-F125	Coupling IBC with female S60x6 / 1.1/4" BSP female	-	7	In stock	Enquiry
AC-IBF060-F150	Coupling IBC with female S60x6 / 1.1/2" BSP female	-	7	In stock	Enquiry
AC-IBF060-F150X	Coupling IBC with female S60x6 / 1.1/2" BSP female	-	7	In stock	Enquiry
AC-IBF060-F200	Coupling IBC with female S60x6 / 2" BSP female	-	7	In stock	Enquiry
AC-IBF060-F200X	Coupling IBC with female S60x6 / 2" BSP female	-	7	In stock	Enquiry
AC-IBF100-F075	Coupling IBC with female S100x8 / 3/4" BSP female	-	7	In stock	Enquiry
AC-IBF100-F100	Coupling IBC with female S100x8 / 1" BSP female	-	7	In stock	Enquiry
AC-IBF100-F200	Coupling IBC with female S100x8 / 2" BSP female	-	7	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Coupling IBC on both sides with a thread internal trapezoidal compliant with the DIN EN 12713 standard. The trapezoidal threads that the IBC couplings are fitted with as standard match 100% the threads in the IBC containers of various manufacturers. Material: polypropylene. gasket: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (momentarily up to +80°C).
