Is the Through elbow, HP type 40130 compatible with polyurethane hoses of Shore A 98Â° and rated for operation from -15Â°C to +130Â°C at 30 bar with Viton sealing?

Yes. Through elbow, HP type 40130 is compatible with polyurethane hoses of Shore A 98Â° rated for operation from -15Â°C to +130Â°C at 30 bar with Viton sealing. The product description specifies it is for joining plastic hoses (minimum hardness Shore A 98Â°), is made of nickel-plated brass, has an operating temperature range of -15Â°C to +130Â°C, a working pressure of 30 bar, and uses Viton sealing.matching the hose specifications you provided.

Does the Through elbow, HP type 40130 require nickel-plated brass construction and Viton seals for 30 bar use with Shore A 98Â° polyurethane hoses?

Yes. Through elbow, HP type 40130 requires nickel-plated brass construction and Viton seals for 30 bar use with polyurethane hoses of Shore A 98Â°. The product description specifies nickel-plated brass material, Viton sealing, and a working pressure of 30 bar, and it requires polyurethane hoses with a minimum hardness of Shore A 98Â°.

Can Through elbow, HP type 40130 be used with polyurethane hoses (Shore A 98Â°) at 30 bar and -15Â°C to +130Â°C?

Yes. Through elbow, HP type 40130 can be used with polyurethane hoses (Shore A 98Â°) at 30 bar and -15Â°C to +130Â°C. The product specification explicitly states suitability for polyurethane hoses requiring a minimum hardness of Shore A 98Â°, a working pressure of 30 bar, and an operating temperature range of -15Â°C to +130Â°C. Materials and sealing (nickel-plated brass body and Viton seal) match those conditions. Ensure hose and installation meet all applicable safety and compatibility checks (assembly, clamp type, and system pressure testing) before use.

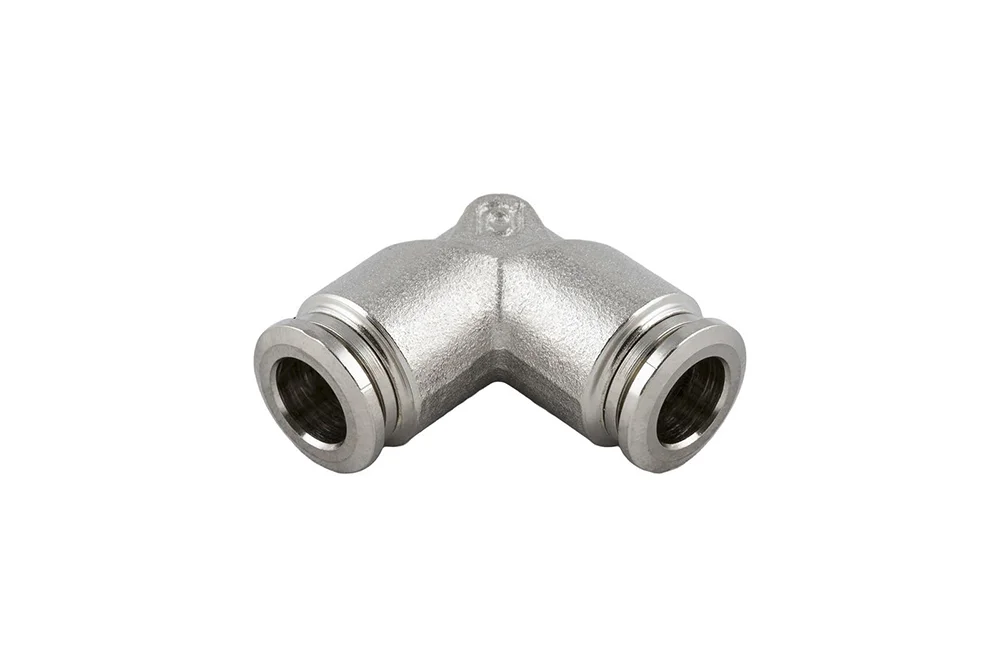

Elbow through-flow, HP type 40130

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Elbow through-flow for connecting hoses with plastics (for hoses polyurethane required minimum Hardness per Shore (A): 98°). Material: brass nickel-plated. Operating temperature: od -15°C up to +130°C. Working pressure: 30 bar. sealing: Viton.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-40130-04-04	Fitting angled (elbow), hose 4 mm - hose 4 mm	-	30	In stock	Enquiry
AI-40130-06-06	Fitting angled (elbow), hose 6 mm - hose 6 mm	-	30	In stock	Enquiry
AI-40130-08-08	Fitting angled (elbow), hose 8 mm - hose 8 mm	-	30	In stock	Enquiry
AI-40130-10-10	Fitting angled (elbow), hose 10 mm - hose 10 mm	-	30	In stock	Enquiry
AI-40130-12-12	Fitting angled (elbow), hose 12 mm - hose 12 mm	-	30	In stock	Enquiry
AI-40130-14-14	Fitting angled (elbow), hose 14 mm - hose 14 mm	-	30	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Elbow through-flow for connecting hoses with plastics (for hoses polyurethane required minimum Hardness per Shore (A): 98°). Material: brass nickel-plated. Operating temperature: od -15°C up to +130°C. Working pressure: 30 bar. sealing: Viton.
