Can the ISO-A hydraulic quick connector plug with GW BSP with valve, type PAV1, handle hydraulic oil at 350 bar and temperatures from -25Â°C to +100Â°C?

Yes. The ISO-A hydraulic quick connector plug with GW BSP with valve, type PAV1 is designed for power hydraulics (hydraulic oil), uses galvanized steel with NBR seals rated for -25Â°C to +100Â°C, and has a working pressure up to 350 bar (size-dependent) with a 4:1 safety factor. Therefore it can handle hydraulic oil at 350 bar and temperatures from -25Â°C to +100Â°C, provided you select the appropriate coupling size that supports the 350 bar working pressure.

Is the ISO-A hydraulic quick connector plug with GW BSP with valve, type PAV1 compatible with other ISO-A "euro couplings" from different manufacturers?

Yes. The ISO-A hydraulic quick connector plug with GW BSP with valve, type PAV1 is an ISO-A (euro) coupling designed for power hydraulics and agricultural machinery and is specified as interchangeable with ISO-A quick couplings from other manufacturers. Made of galvanized steel with NBR seals (â25Â°C to +100Â°C), rated up to 350 bar (size-dependent) and safety factor 4:1, it should mate with other ISO-A (euro) couplings that conform to the same ISO-A standards. Always verify matching size, thread (GW BSP internal), and condition of seals before use.

Does the ISO-A hydraulic quick connector plug with GW BSP with valve, type PAV1 support NBR seals for agricultural hydraulic oil applications?

Yes. The ISO-A hydraulic quick connector plug with GW BSP with valve, type PAV1 supports NBR seals for agricultural hydraulic oil applications. The product description explicitly states the coupling seal is NBR, with an operating temperature range of â25 Â°C to +100 Â°C, and it is intended for power hydraulics (hydraulic oil) and agricultural machinery. NBR (nitrile rubber) is commonly used and suitable for mineral hydraulic oils used in agricultural equipment, and the couplingâs pressure and material specifications (galvanized steel, up to 350 bar depending on size) are consistent with typical agricultural hydraulic system requirements.

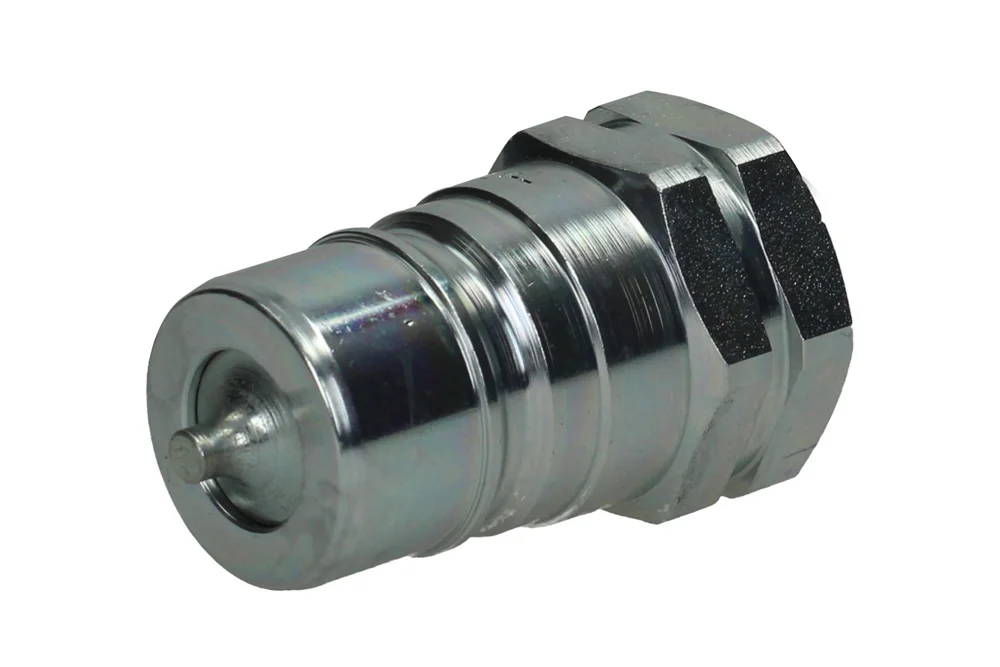

ISO-A hydraulic quick connector plug with GW BSP with valve, type PAV1

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic quick coupling with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Seal of the coupling: NBR (operating temperature from -25°C to +100°C). Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-PAV1-0606003	DN6 plug with 1/4" BSP female thread, nitrile seal	-	350	In stock	Enquiry
DP-PAV1-1010003	DN10 plug with 3/8" BSP female thread, nitrile seal	-	350	In stock	Enquiry
DP-PAV1-1313003	DN13 plug with 1/2" BSP female thread, nitrile seal	-	250	In stock	Enquiry
DP-PAV1-2019003	DN20 plug with 3/4" BSP female thread, nitrile seal	-	250	In stock	Enquiry
DP-PAV1-2525003	DN25 plug with 1" BSP female thread, nitrile seal	-	200	In stock	Enquiry
DP-PAV1-3031003	DN30 plug with 1.1/4" BSP female thread, nitrile seal	-	200	In stock	Enquiry
DP-PAV1-3939003	DN39 plug with 1.1/2" BSP thread, nitrile seal	-	190	In stock	Enquiry
DP-PAV1-5051003	DN50 plug with 2" BSP female thread, nitrile seal	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick coupling with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Seal of the coupling: NBR (operating temperature from -25°C to +100°C). Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].
