Is the ISO-A hydraulic quick connect plug with METRIC GW with valve, type PAV1 interchangeable with other ISO-A euro couplings at 250 bar?

Yes. The ISO-A hydraulic quick connect plug with METRIC GW with valve, type PAV1 is interchangeable with other ISOâA (Euro) couplings at 250 bar. The product description states it is an ISOâA quick coupling with shutâoff valve and internal metric thread, intended for power hydraulics, and explicitly says it is interchangeable with ISOâA quick couplings from other manufacturers. Its rated working pressure (250 bar), standardized ISOâA design, compatible materials/seals (galvanized steel, NBR) and adherence to the ISOâA form factor support safe interchangeability at that pressure, provided mating couplers are also ISOâA rated to the same pressure and compatible with NBR seals and the applicationâs temperature range.

Can the ISO-A hydraulic quick connect plug with METRIC GW with valve, type PAV1 be used with NBR seals across the full -25Â°C to +100Â°C temperature range?

Yes. The ISO-A hydraulic quick connect plug with METRIC GW with valve, type PAV1 uses NBR seals and its specified operating temperature range is â25Â°C to +100Â°C, so NBR seals are suitable for the full stated range for the intended hydraulic oil application. Ensure actual service fluids and conditions (pressure up to 250 bar, flow, and environmental factors) match specifications and consult manufacturer if exposure to aggressive fluids or temperatures beyond the stated limits is expected.

Does ISO-A hydraulic quick connect plug with METRIC GW with valve, type PAV1 require special maintenance for agricultural use?

The ISO-A hydraulic quick connect plug with METRIC GW with valve, type PAV1 does not require special maintenance beyond standard care for agricultural hydraulic couplings. Recommended routine maintenance: - Regular inspection: check for visible damage, corrosion on the galvanized steel, wear on the valve, and condition of the NBR seal. - Seal care: replace NBR seals if hardened, cracked or leaking. NBR is suitable for â25Â°C to +100Â°C; prolonged exposure near limits accelerates wear. - Cleanliness: keep coupling faces and valve area free of dirt, crop debris and moisture to prevent contamination of hydraulic oil and valve sticking. - Lubrication: light film of compatible hydraulic oil on the sealing surfaces is sufficient; avoid heavy greases that attract dirt. - Pressure checks: verify leak-free connections at working pressure (up to 250 bar) and avoid pressure spikes; follow safety factor 4:1 during testing. - Connection practice: mate/unmate under low or no pressure when possible; ensure correct engagement to avoid seal or valve damage. - Storage: store in a clean, dry place; protect ends with caps/plugs to prevent ingress. Follow tractor/machine and hydraulic oil manufacturer recommendations and replace coupling when performance or safety is compromised. Regular basic maintenance will ensure reliable performance in agricultural use.

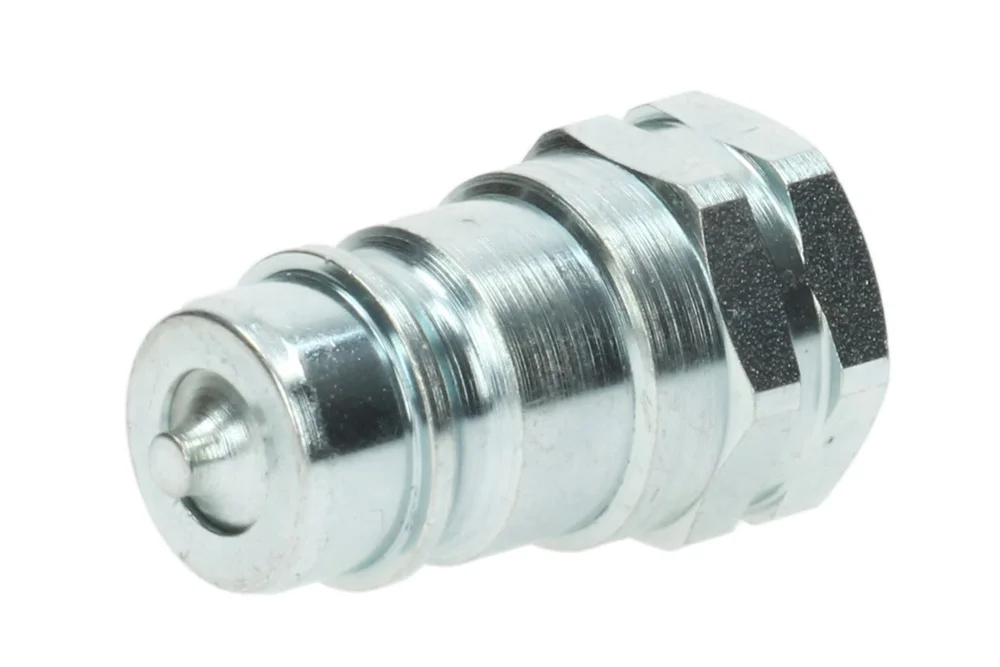

ISO-A hydraulic quick connect plug with METRIC GW with valve, type PAV1

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic quick coupling with shut-off valve and internal metric thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Seal of the coupling: NBR. Operating temperature: from -25°C to +100°C. Working pressure: 250 bar. Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
DP-PAV1-1322103	DN13 plug with G1/2 M22x1.5, nitrile seal	-	250	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick coupling with shut-off valve and internal metric thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Seal of the coupling: NBR. Operating temperature: from -25°C to +100°C. Working pressure: 250 bar. Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].
