Is the ISO-A hydraulic quick connect plug with GW BSP with valve and eliminator, type IA suitable for hydraulic oil up to 250 bar and -25Â°C to +100Â°C?

Yes. The ISO-A hydraulic quick connect plug with GW BSP with valve and eliminator, type IA is suitable for hydraulic oil up to 250 bar and for temperatures from â25Â°C to +100Â°C. The product description specifies application in power hydraulics (hydraulic oil), working pressure up to 250 bar, and an operating temperature range of â25Â°C to +100Â°C. Material (galvanized steel) and NBR seals are consistent with typical hydraulic oil service in that temperature range.

Can the ISO-A hydraulic quick connect plug with GW BSP with valve and eliminator, type IA be used interchangeably with other ISO-A euro couplings?

Yes. The ISO-A hydraulic quick connect plug with GW BSP with valve and eliminator, type IA is designed as an ISO-A (euro) coupling and is interchangeable with ISO-A quick couplings from other manufacturers. It suits power hydraulics (hydraulic oil), is made of galvanized steel, uses NBR seals, operates from -25Â°C to +100Â°C, handles up to 250 bar with a 4:1 safety factor, and its flow rating is given at Îp = 3 bar.

Does the ISO-A hydraulic quick connect plug with GW BSP with valve and eliminator, type IA require specific maintenance intervals for optimal performance?

ISO-A hydraulic quick connect plug with GW BSP with valve and eliminator, type IA does not mandate a universal, fixed maintenance schedule in the product description, but optimal performance and long service life require regular checks and simple maintenance based on operating conditions. Recommended maintenance guidance: - Visual inspection: before each use or daily in heavy duty/agricultural operation. check for external damage, corrosion of galvanized steel, thread condition (internal BSP), and integrity of the eliminator and valve. - Seal check and replacement: inspect NBR seal for wear, hardening, cuts or swelling at least monthly in frequent-use applications or every 3â6 months in light use; replace immediately if damaged. NBR performs well from â25Â°C to +100Â°C but degrades faster with heat, contamination or aggressive fluids. - Cleanliness: keep coupling faces, valve and eliminator clean of dirt, debris and contamination; clean with compatible hydraulic oil and lint-free cloth before connection. Avoid ingress of contaminants when disconnected. - Leakage and pressure test: monitor for leaks during operation up to the rated 250 bar; perform functional tests after seal replacement, repair, or annually as part of hydraulic system maintenance. - Lubrication and corrosion protection: ensure moving parts operate freely; apply manufacturer-recommended anti-corrosion treatment if stored in corrosive environments. - Service intervals by usage: heavy agricultural use or dusty/dirty environments. inspect weekly to monthly; normal use. inspect monthly to quarterly; storage/low use. inspect before each use and at least annually. - Replace rather than repair if threads, valve or eliminator are damaged, or if safety factor/performance is compromised. Follow system-level hydraulic maintenance practices (fluid cleanliness, filtration, and pressure control). For precise intervals and replacement parts, consult the coupling supplierâs detailed maintenance instructions.

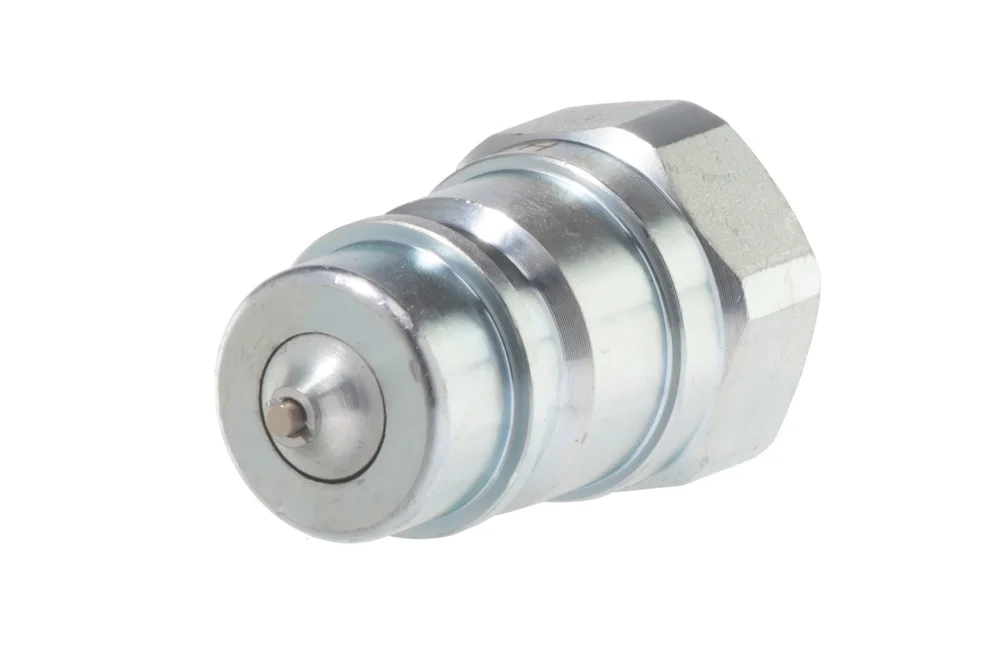

ISO-A hydraulic quick-coupling plug with female thread BSP with a valve and eliminator, type IA

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic quick-coupling plug with a shut-off valve, a BSP female thread and a pressure eliminator. Application: power hydraulics (hydraulic oil). The quick coupling is used mainly in agricultural machinery. Commonly called “euro couplings”. interchangeable with quick coupling ISO-A from other manufacturers. Material: galvanized steel. sealing plug: NBR. Operating temperature: from -25°C to +100°C. Working pressure: up to 250 bar. Safety factor 4:1. The flow is given at Δp = 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HQ-IA12C-M-08G	Plug ISO A DN12 with 1/2" BSP female with an eliminator	-	250	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick-coupling plug with a shut-off valve, a BSP female thread and a pressure eliminator. Application: power hydraulics (hydraulic oil). The quick coupling is used mainly in agricultural machinery. Commonly called “euro couplings”. interchangeable with quick coupling ISO-A from other manufacturers. Material: galvanized steel. sealing plug: NBR. Operating temperature: from -25°C to +100°C. Working pressure: up to 250 bar. Safety factor 4:1. The flow is given at Δp = 3 bar.
