Is the ISO-A hydraulic quick coupling socket with GW BSP with valve, type PAV1 compatible with other manufacturers' ISO-A (euro) couplings under 350 bar?

Yes. The ISO-A hydraulic quick coupling socket with GW BSP with valve, type PAV1 is compatible with other manufacturersâ ISO-A (euro) couplings up to 350 bar. It is described as an ISO-A (euro) quick coupling with shut-off valve and internal BSP thread for power hydraulics, commonly used in agricultural machinery and explicitly stated to be interchangeable with ISO-A couplings from other manufacturers. Its materials and sealing (galvanized steel, NBR) and working pressure rating (up to 350 bar, depending on size) match typical ISO-A specifications, so interchangeability under the same ISO-A standard and pressure range is expected. Ensure matching size and confirm condition and seal type before interchange to guarantee leak-free and safe operation.

Can the ISO-A hydraulic quick coupling socket with GW BSP with valve, type PAV1 be used with NBR seals at temperatures down to -25Â°C?

Yes. ISO-A hydraulic quick coupling socket with GW BSP with valve, type PAV1 uses NBR seals specified for an operating temperature range of -25Â°C to +100Â°C, so it can be used down to -25Â°C. Ensure system conditions (pressure up to 350 bar, hydraulic oil compatibility, and application-specific requirements) remain within product specifications and consider potential seal stiffness or reduced elasticity at the lower limit.

Does the ISO-A hydraulic quick coupling socket with GW BSP with valve, type PAV1 meet a 4:1 safety factor for agricultural hydraulic systems?

Yes. Based on the provided description, the ISO-A hydraulic quick coupling socket with GW BSP with valve, type PAV1 is specified with a safety factor 4:1 for use in agricultural power hydraulics. With a rated working pressure up to 350 bar (depending on size) and construction in galvanized steel with NBR seals (â25Â°C to +100Â°C), the coupling is designed to meet the 4:1 safety factor requirement for agricultural hydraulic systems. Ensure you select the correct size/version whose rated working pressure corresponds to your system peak pressures and verify compatibility/interchangeability with other ISO-A components in your installation.

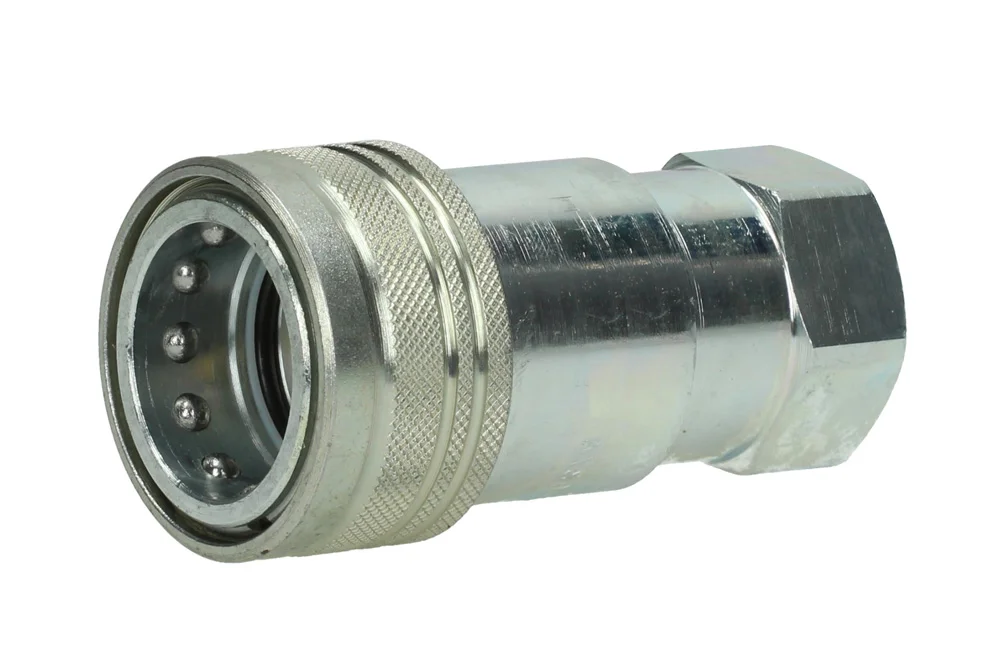

ISO-A hydraulic quick coupling socket with GW BSP with valve, type PAV1

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic quick coupling socket with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR (operating temperature from -25°C to +100°C). Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-PAV1-0606002	DN6 socket with 1/4" BSP female thread, nitrile seal	-	350	In stock	Enquiry
DP-PAV1-1010002	DN10 socket with 3/8" BSP female thread, nitrile seal	-	350	In stock	Enquiry
DP-PAV1-1313002	DN13 socket with 1/2" BSP female thread, nitrile seal	-	250	In stock	Enquiry
DP-PAV1-2019002	DN20 socket with 3/4" BSP female thread, nitrile seal	-	250	In stock	Enquiry
DP-PAV1-2525002	DN25 socket with 1" BSP female thread, nitrile seal	-	200	In stock	Enquiry
DP-PAV1-3031002	DN30 socket with 1.1/4" BSP thread, nitrile seal	-	200	In stock	Enquiry
DP-PAV1-3939002	Socket DN39 with G1 1/2" BSP, nitrile seal	-	190	In stock	Enquiry
DP-PAV1-5051002	DN50 socket with 2" BSP female thread, nitrile seal	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick coupling socket with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR (operating temperature from -25°C to +100°C). Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].
