Is the ISO-A hydraulic quick-connect bulkhead socket with METRIC GZ with valve, PUSH PULL, type PPV3 compatible and interchangeable with other manufacturersâ ISO-A euro couplings?

Yes. The ISO-A hydraulic quick-connect bulkhead socket with METRIC GZ with valve, PUSH PULL, type PPV3 is compatible and interchangeable with other manufacturersâ ISO-A (euro) couplings. It is built to the ISO-A standard for power-hydraulic quick couplings, uses the common external metric thread format, features a shut-off valve, and the push-pull automatic disconnection mechanism expected in euro couplings. With galvanized steel construction, NBR seals (â25Â°C to +100Â°C), 250 bar working pressure, and a 4:1 safety factor, it matches the typical dimensions and performance of ISO-A couplings used in agricultural machinery and should mate with other ISO-A compliant couplers from different manufacturers.

Is the ISO-A hydraulic quick-connect bulkhead socket with METRIC GZ with valve, PUSH PULL, type PPV3 suitable for use in agricultural hydraulic systems with hydraulic oil?

Yes. The ISO-A hydraulic quick-connect bulkhead socket with METRIC GZ with valve, PUSH PULL, type PPV3 is suitable for agricultural hydraulic systems using hydraulic oil. It is explicitly specified for power hydraulics (hydraulic oil) and is commonly used in agricultural machinery. Construction and specs support this use: galvanized steel body, NBR seals rated -25Â°C to +100Â°C, working pressure 250 bar with 4:1 safety factor, and automatic âpush-pullâ disconnection for hose tension protection. It is interchangeable with ISO-A couplings from other manufacturers. Ensure compatibility with your systemâs thread, flow/pressure requirements and temperature range before installation.

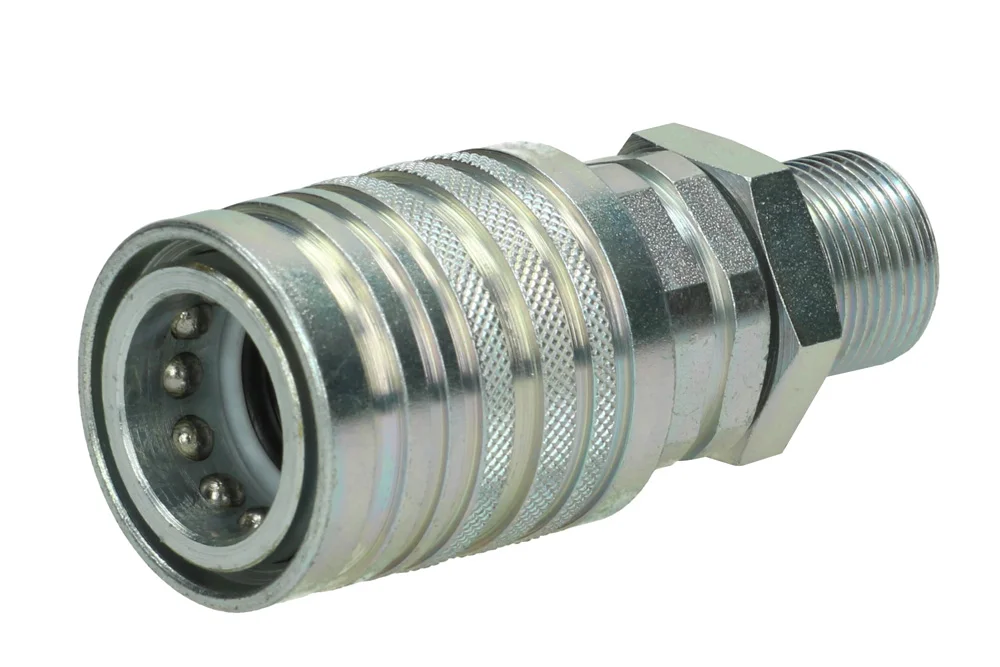

ISO-A hydraulic quick-connect bulkhead socket with METRIC GZ with valve, PUSH PULL, type PPV3

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic quick coupling socket with shut-off valve and external metric thread. “Push-pull” version – automatic disconnection upon accidental tensioning of the hose. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR (operating temperature from -25°C to +100°C). Working pressure: 250 bar. Safety factor 4:1. Flow is specified for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-PPV3-1316502	DN12 socket with GZ M16x1.5 (10L), grooved, nitrile seal	-	250	In stock	Enquiry
DP-PPV3-1318502	Socket DN12 with GZ M18x1.5 (12L), grooved, nitrile seal	-	250	In stock	Enquiry
DP-PPV3-1322502	DN12 socket with GZ M22x1.5 (15L), grooved, nitrile seal	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick coupling socket with shut-off valve and external metric thread. “Push-pull” version – automatic disconnection upon accidental tensioning of the hose. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR (operating temperature from -25°C to +100°C). Working pressure: 250 bar. Safety factor 4:1. Flow is specified for a pressure drop of 3 bar.
