Is the ISO-B quick-connect plug with GW (1/8" Ã· 1") in brass, HANSEN, type HK suitable for steam service when fitted with EPDM236 seals?

Yes. The ISO-B quick-connect plug with GW (1/8" Ã· 1") in brass, HANSEN, type HK fitted with EPDM236 seals is suitable for steam service. The product data explicitly lists steam among its industrial applications and specifies EPDM236 as the sealing material for use with steam at temperatures above +149Â°C. Ensure selection of the correct size and verify the working pressure for your specific coupling (up to 207 bar depending on size) and that operating temperatures and pressure drops in your steam system stay within the couplingâs rated limits.

Can the ISO-B quick-connect plug with GW (1/8" Ã· 1") in brass, HANSEN, type HK be used with hydraulic oil at 207 bar continuous?

Yes. The ISO-B quick-connect plug with GW (1/8" Ã· 1") in brass, HANSEN, type HK can be used with hydraulic oil at 207 bar continuous, provided you select the appropriate size/version rated for the 207 bar working pressure and suitable seal material (NBR or EPDM as compatible with the specific hydraulic oil and temperature range). The product is designed for hydraulic power, compliant with ISO 7241-1 B, and its working pressure is specified up to 207 bar depending on coupling size; confirm exact size rating and seal compatibility for your oil and operating temperature before installation.

Can the ISO-B quick-connect plug with GW (1/8" Ã· 1") in brass, HANSEN, type HK be used with steam at temperatures above +149Â°C when fitted with EPDM236?

Yes. ISO-B quick-connect plug with GW (1/8" Ã· 1") in brass, HANSEN, type HK fitted with EPDM236 is specified for use with steam at temperatures above +149Â°C. The product description explicitly states EPDM236 is "for use with steam at temperatures above +149Â°C," so this sealing material is suitable for higher-temperature steam service. Ensure that the specific size and assembly meet the working pressure and flow requirements for your application (working pressure up to 207 bar depending on size) and that installation and operating conditions (pressure, temperature cycles, media compatibility) fall within the manufacturer's limits.

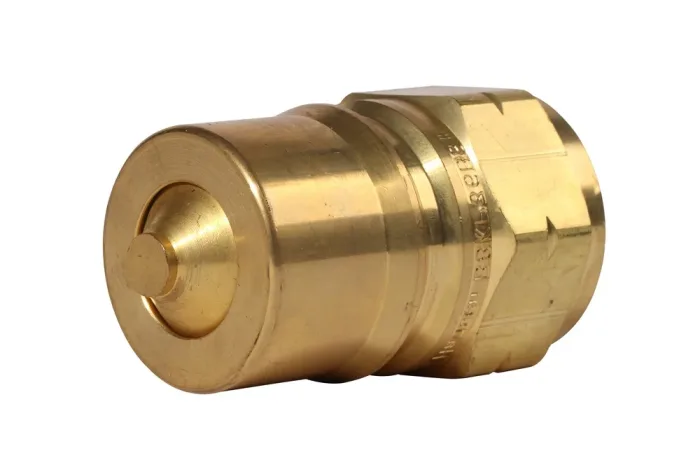

ISO-B quick-connect plug with GW (1/8″ ÷ 1″) in brass, HANSEN, type HK

All products, Hydraulic quick couplings/

Additional information

Material	B – brass (bronze)

HANSEN quick coupling plug type HK with internal BSP or NPT thread. Compliant with ISO 7241-1 B standard. Interchangeable with ISO-B quick couplings from other manufacturers. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases, chemicals). Material: brass. Sealing: NBR (operating temperature from -40°C to +121°C), EPDM (operating temperature from -54°C to +149°C), EPDM236 (for use with steam at temperatures above +149°C). Working pressure: up to 207 bar (depending on the size of the quick coupling). Flow has been provided for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HA-B1K11	1-HK standard plug, GW 1/8" NPT, brass	-	207	In stock	Enquiry
HA-B2K16	2-HK standard plug, GW 1/4" NPT, brass	-	186	In stock	Enquiry
HA-B2K16BS	2-HK standard plug, GW 1/4" BSP, brass	-	186	In stock	Enquiry
HA-B3K21	3-HK standard plug, GW 3/8" NPT, brass	-	152	In stock	Enquiry
HA-B3K21BS	3-HK standard plug, GW 3/8" BSP, brass	-	152	In stock	Enquiry
HA-B3K21BS-E	3-HK standard plug, GW 3/8" BSP, brass, EPDM	-	152	In stock	Enquiry
HA-B3K21BS-E2	3-HK standard plug, GW 3/8" BSP, brass, EPDM236	-	152	In stock	Enquiry
HA-B4KP26	4-HKP standard plug, GW 1/2" NPT, brass	-	155	In stock	Enquiry
HA-B4KP26BS	4-HKP standard plug, GW 1/2" BSP, brass	-	155	In stock	Enquiry
HA-B6KP31	6-HKP standard plug, GW 3/4" NPT, brass	-	138	In stock	Enquiry
HA-B6KP31BS	6-HKP standard plug, GW 3/4" BSP, brass	-	138	In stock	Enquiry
HA-B8KP36	8-HKP standard plug, GW 1" NPT, brass	-	103	In stock	Enquiry
HA-B8KP36BS	8-HKP standard plug, GW 1" BSP, brass	-	103	In stock	Enquiry
HA-B8KP36BS-E	8-HKP standard plug, GW 1" BSP, brass, EPDM	-	103	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

HANSEN quick coupling plug type HK with internal BSP or NPT thread. Compliant with ISO 7241-1 B standard. Interchangeable with ISO-B quick couplings from other manufacturers. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases, chemicals). Material: brass. Sealing: NBR (operating temperature from -40°C to +121°C), EPDM (operating temperature from -54°C to +149°C), EPDM236 (for use with steam at temperatures above +149°C). Working pressure: up to 207 bar (depending on the size of the quick coupling). Flow has been provided for a pressure drop of 3 bar.
