Does the JIC plug with stainless steel UNF GZ, type ROV provide reliable sealing on the external 37Â° cone when made from AISI 316 steel?

Yes. The JIC plug with stainless steel UNF GZ, type ROV Format made from AISI 316 steel can provide reliable sealing on the external 37Â° cone when manufactured and assembled correctly. AISI 316 offers good corrosion resistance and mechanical strength suitable for fittings; the 37Â° JIC cone design achieves metal-to-metal sealing when surfaces are free of damage, properly machined, and tightened to the specified torque. Key factors for reliable sealing: - Machining accuracy: cone angle, surface finish and concentricity must meet JIC tolerances. - Surface condition: smooth, undamaged cone faces without burrs, scratches or corrosion. - Thread fit and torque: correct UNF thread engagement and recommended torque ensure proper seat without over- or under-tightening. - Compatibility: mating component must be the matching JIC 37Â° female with proper dimensions. - Application conditions: pressure, temperature, vibration and media must be within AISI 316 and JIC joint capability; for extreme conditions consider additional measures (back-up rings, coatings or different materials). If these conditions are observed, the JIC plug with stainless steel UNF GZ, type ROV Format in AISI 316 will deliver a reliable seal on the external 37Â° cone.

Can JIC plug with stainless steel UNF GZ, type ROV in AISI 316 resist corrosion while ensuring a leak-free seal on the external 37Â° cone?

Yes. A JIC plug with stainless steel UNF GZ, type ROV Format made of AISI 316 can resist corrosion and provide a leak-free seal on the external 37Â° cone, provided conditions are suitable: AISI 316 offers good general corrosion and pitting resistance (better than 304) in many environments; the 37Â° metal-to-metal cone seal is robust if surfaces are free of damage, properly machined, and tightened to the correct torque; use of compatible mating fittings (also corrosion-resistant) prevents galvanic corrosion; ensure clean threads, correct UNF engagement, and appropriate surface finish/flatness on the cone. Limitations: AISI 316 may suffer in highly chlorinated, acidic, or high-temperature chloride-containing environments-consider 316L, 317, duplex stainless, or coatings for severe conditions. Regular inspection and proper assembly are required for long-term leak-free performance.

Is the JIC plug with stainless steel UNF GZ, type ROV compatible with AISI 316 for high-pressure 37Â° cone sealing?

Yes. The JIC plug with stainless steel UNF GZ, type ROV Format described as "JIC 37Â° plug with external UNF thread (sealing on the external 37Â° cone). Material: AISI 316 steel" is compatible with AISI 316 mating components for high-pressure 37Â° cone sealing. Because both the plug and the mating fitting use AISI 316 stainless steel and the sealing is on the external 37Â° cone, material compatibility and proper metal-to-metal cone geometry are met, ensuring reliable high-pressure sealing when threads, dimensions (UNF), torque, surface finish and gasket/backup requirements (if any) follow the relevant specifications. Ensure correct thread engagement, proper torque, and that both cone surfaces are undamaged and manufactured to the same JIC 37Â° standards for optimal high-pressure performance.

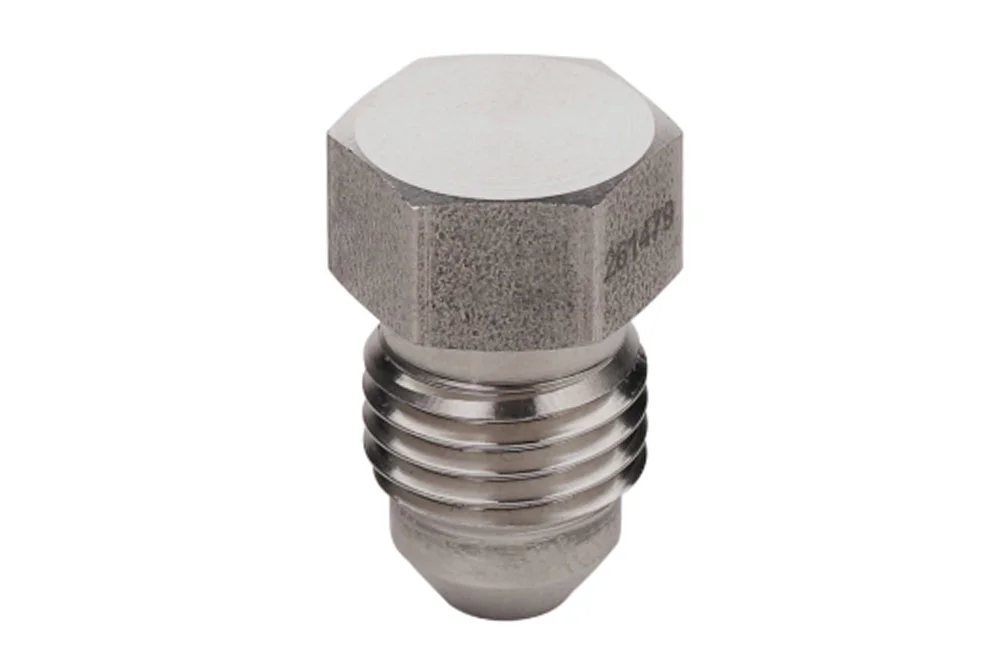

Plug JIC with UNF male of stainless steel, type ROV

Additional information

Material	SS – stainless steel

Plug JIC 37° with UNF male thread (sealing on the external 37° cone). Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-ROV-07-SS	Plug with male JIC 7/16"-20, AISI 316	-	450	In stock	Enquiry
HJ-ROV-08-SS	Plug with male JIC 1/2"-20, AISI 316	-	450	In stock	Enquiry
HJ-ROV-09-SS	Plug with male JIC 9/16"-18, AISI 316	-	350	In stock	Enquiry
HJ-ROV-12-SS	Plug with male JIC 3/4"-16, AISI 316	-	350	In stock	Enquiry
HJ-ROV-14-SS	Plug with male JIC 7/8"-14, AISI 316	-	350	In stock	Enquiry
HJ-ROV-17-SS	Plug with male JIC 1.1/16"-12, AISI 316	-	350	In stock	Enquiry
HJ-ROV-21-SS	Plug with male JIC 1.5/16"-12, AISI 316	-	290	In stock	Enquiry
HJ-ROV-26-SS	Plug with male JIC 1.5/8"-12, AISI 316	-	240	In stock	Enquiry
HJ-ROV-30-SS	Plug with male JIC 1.7/8"-12, AISI 316	-	240	In stock	Enquiry
