Is the Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H compatible with aggressive chemical environments and high-temperature applications?

Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H is made from AISI 316 stainless steel and is specifically intended for chemical, petrochemical, pharmaceutical, energy, nuclear power and process engineering industries. AISI 316 offers good corrosion resistance to many aggressive chemicals (chlorides, organic acids, some oxidizing agents) and retains strength at elevated temperatures compared with standard stainless steels, so the fitting is generally suitable for many aggressive chemical environments and high-temperature applications encountered in those sectors. However, compatibility depends on the specific chemical media, concentration, temperature, pressure and exposure time. AISI 316 can be attacked by strong acids (e.g., concentrated hydrochloric or sulfuric acid), chloride-rich high-temperature environments (risk of pitting/crevice corrosion or stress corrosion cracking) and certain halogenated or highly oxidizing media. For very high temperatures, specialized alloys (e.g., duplex, superaustenitic, or nickel-based alloys) may be required. Conclusion: Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H is broadly suitable for many aggressive chemical and elevated-temperature applications typical of its target industries, but final suitability must be verified against the exact media, concentration, temperature and pressure.consult material chemical-resistance charts or a corrosion specialist and consider higher-alloy options when exposure is severe.

Does the Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H meet nuclear industry material and testing standards?

Based on the provided description, the Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H is made of AISI 316 stainless steel and is intended for use in the nuclear power industry. However, simply stating AISI 316 and intended application does not confirm compliance with specific nuclear industry material and testing standards (e.g., ASME NQAâ1, ASTM standards for nuclear applications, 10 CFR Part 50, or project-specific nuclear quality assurance and traceability, material certification, heat treatment, nonâdestructive testing, and qualification/testing records). Therefore, without documented evidence of certification, traceability, and nuclearâspecific testing/qualification, one cannot conclude that the Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H meets nuclear industry material and testing standards.

Can the Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H be used in sanitary/pharmaceutical piping systems?

Yes. with conditions. The Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H is made of AISI 316 stainless steel and is designed for industries including pharmaceutical and process engineering, which makes it a suitable base material and design for sanitary/pharmaceutical piping. AISI 316 offers good corrosion resistance and is commonly accepted in pharmaceutical applications. However, compliance with sanitary/pharmaceutical use depends on additional factors beyond base material and thread types: - Surface finish: Pharmaceutical systems typically require smooth, polished finishes (electropolished or Ra-specified) to prevent bacterial retention. Confirm the actual internal and external surface roughness and any polishing treatments. - Cleanability and crevice-free design: Sanitary systems favor crevice-free, drainable geometries. Threaded connections can harbor contaminants unless appropriately sealed, protected, or used in non-product-contact zones. - Certifications and standards: Verify conformity with relevant standards (e.g., FDA, USP, EHEDG, 3-A, ASME BPE) as required by your facility and product. The 3750Hâs intended industries suggest suitability, but documented certification may be necessary. - Compatibility with sterilization/CIP: Ensure the component withstands required cleaning, sterilization, and CIP conditions (temperatures, chemicals). - Seal materials and installation practice: Use sanitary-approved seals (if any) and installation methods to avoid dead legs and contamination risks. Conclusion: The Screw-in T-piece "L" with 2 x GW NPT/GZ NPT stainless steel, 3750H can be used in sanitary/pharmaceutical piping if its surface finish, certifications, seal materials, and installation meet the specific sanitary requirements of your application. Verify documentation and, if needed, request sanitary finishing or certified versions.

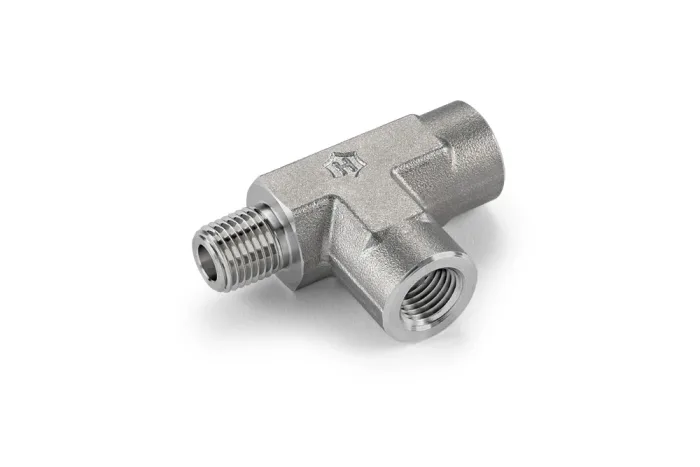

A tee “L” screw-in with 2 x NPT female/NPT male steel stainless, 3750H

All products, Precision threaded fasteners/

Additional information

Material	SS – stainless steel

A tee “L” screw-in with 2 x a thread internal NPT orawith a thread external NPT, type 3750H, intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-P3750H-02-SS	Tee L screw-in, 2 x 1/8" NPT female / 1 x 1/8" NPT male, SS	-	448	In stock	Enquiry
HM-P3750H-04-SS	Tee L screw-in, 2 x 1/4" NPT female / 1 x 1/4" NPT male, SS	-	455	In stock	Enquiry
HM-P3750H-06-SS	Tee L screw-in, 2 x 3/8" NPT female / 1 x 3/8" NPT male, SS	-	366	In stock	Enquiry
HM-P3750H-08-SS	Tee L screw-in, 2 x 1/2" NPT female / 1 x 1/2" NPT male, SS	-	338	In stock	Enquiry
HM-P3750H-12-SS	Tee L screw-in, 2 x 3/4" NPT female / 1 x 3/4" NPT male, SS	-	317	In stock	Enquiry
HM-P3750H-16-SS	Tee L screw-in, 2 x 1" NPT female / 1 x 1" NPT male, SS	-	303	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A tee “L” screw-in with 2 x a thread internal NPT orawith a thread external NPT, type 3750H, intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.
