Does the Pressure indicator LAM L (thread - hose) work with both oiled and non-oiled compressed air within -20Â°C to +60Â°C?

Yes. The Pressure indicator LAM L (thread - hose) works with both oiled and non-oiled compressed air within the temperature range of â20Â°C to +60Â°C. Its specifications state operation with filtered compressed air, oiled or non-oiled, and an operating temperature from â20Â°C to +60Â°C (operating pressure 2â10 bar).

Can the Pressure indicator LAM L (thread - hose) reliably signal aeration at pressures between 2 and 10 bar?

Yes. The Pressure indicator LAM L (thread - hose) is designed to signal aeration reliably within its specified operating pressure range of 2 Ã· 10 bar. It provides a clear visual indication (green or orange) when the system is pressurized and shows an "empty" sight glass when vented. Its specifications-suitable operating temperature (-20Â°C to +60Â°C) and compatibility with filtered compressed air (oiled or non-oiled)-support reliable function under normal conditions. Ensure proper installation, sealing (O-ring), and that the medium is filtered to prevent contamination that could impair visibility or operation.

Is the Pressure indicator LAM L (thread - hose) suitable for use with filtered compressed air in systems that are periodically oiled?

Yes. The Pressure indicator LAM L (thread - hose) is suitable for use with filtered compressed air in systems that are periodically oiled. The product description explicitly states the medium can be "filtered compressed air, oiled or non-oiled," and its operating pressure (2â10 bar) and temperature range (â20Â°C to +60Â°C) support typical compressed air applications. Ensure compatibility with your systemâs exact oil type and maintenance procedures, and verify that pressure and temperature stay within the specified limits.

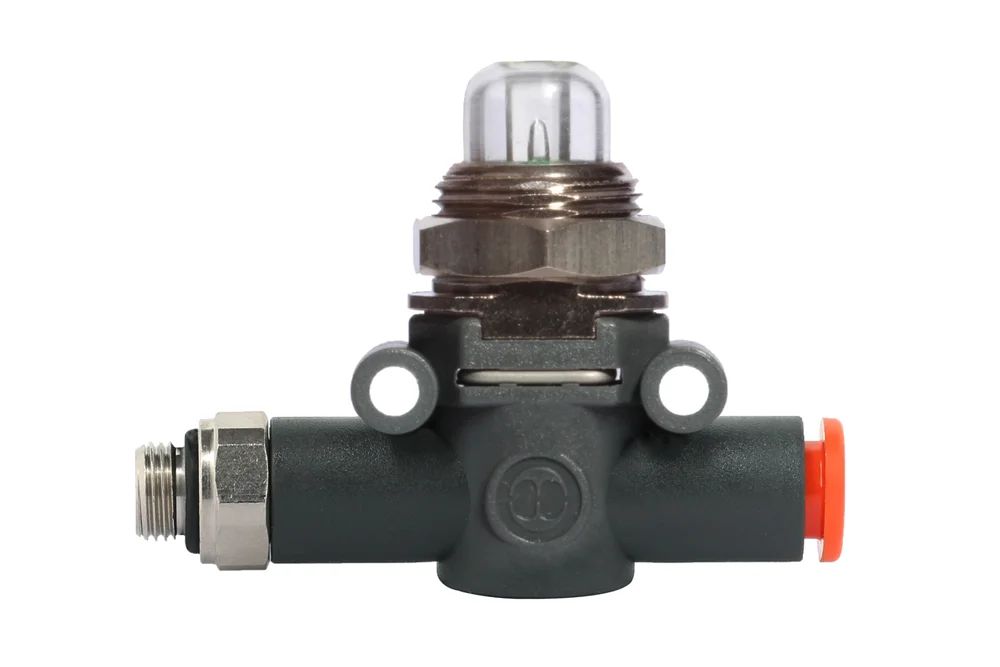

Pressure indicator LAM L (thread – hose)

All products, Functional fittings/

Additional information

Material	P – material (plastic)

The LAM L pressure indicator in the version with a threaded connection with an O-ring on one side and a plug connection on the other side (thread – hose) is used to signal (green or orange signal) the aeration of the system; when the system is vented, the sight glass indicator is “empty.” Operating pressure: 2 ÷ 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9068108	Orange pressure gauge LAM L, GZ BSP 1/8" - hose 6 mm	-	10	In stock	Enquiry
MW-9068109	Orange pressure gauge LAM L, GZ BSP 1/4" - hose 6 mm	-	10	In stock	Enquiry
MW-9068110	Orange pressure gauge LAM L, GZ BSP 1/8" - hose 8 mm	-	10	In stock	Enquiry
MW-9068111	Orange pressure indicator LAM L, GZ BSP 1/4" - hose 8 mm	-	10	In stock	Enquiry
MW-9068112	Orange pressure gauge LAM L, GZ BSP 3/8" - hose 8 mm	-	10	In stock	Enquiry
MW-9068308	Green pressure indicator LAM L, GZ BSP 1/8" - hose 6 mm	-	10	In stock	Enquiry
MW-9068309	Pressure indicator green LAM L, GZ BSP 1/4" - hose 6 mm	-	10	In stock	Enquiry
MW-9068310	Pressure indicator green LAM L, GZ BSP 1/8" - hose 8 mm	-	10	In stock	Enquiry
MW-9068311	Pressure gauge green LAM L, GZ BSP 1/4" - hose 8 mm	-	10	In stock	Enquiry
MW-9068312	Pressure indicator green LAM L, GZ BSP 3/8" - hose 8 mm	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The LAM L pressure indicator in the version with a threaded connection with an O-ring on one side and a plug connection on the other side (thread – hose) is used to signal (green or orange signal) the aeration of the system; when the system is vented, the sight glass indicator is “empty.” Operating pressure: 2 ÷ 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.
