Is the Pneumatic quick-drain valve VSR L (line - line) compatible with both oiled and non-oiled compressed air at 10 bar and -20Â°C to +60Â°C?

Yes. The Pneumatic quick-drain valve VSR L (line - line) is specified for filtered compressed air, both oiled and un-oiled, with a working pressure up to 10 bar and an operating temperature range from -20Â°C to +60Â°C . therefore it is compatible with both oiled and non-oiled compressed air under those pressure and temperature conditions.

Can the Pneumatic quick-drain valve VSR L (line - line) with plug couplings handle filtered compressed air at 10 bar in both hose-to-hose installations?

Yes. The Pneumatic quick-drain valve VSR L (line - line) with plug couplings is specified for filtered compressed air (oiled or un-oiled) and a working pressure of 10 bar. In the hose-to-hose (lineâline) installation described - both ends terminated with plug couplings and discharge routed through the plug coupling - it is designed to handle that medium and pressure within the stated operating temperature range (â20Â°C to +60Â°C). Ensure installation and maintenance follow manufacturer instructions and that air is properly filtered to protect valve life.

Does the Pneumatic quick-drain valve VSR L (line - line) with plug couplings allow discharge through the coupling at 10 bar?

Yes. The Pneumatic quick-drain valve VSR L (line - line) with plug couplings allows discharge through the coupling at 10 bar. The VSR L is specified for a working pressure of 10 bar and is designed to route discharge through the plug coupling when both ends are terminated with plug couplings (hoseâhose). Its operating range (â20 Â°C to +60 Â°C) and compatibility with filtered compressed air, oiled or unâoiled, support safe operation at that pressure.

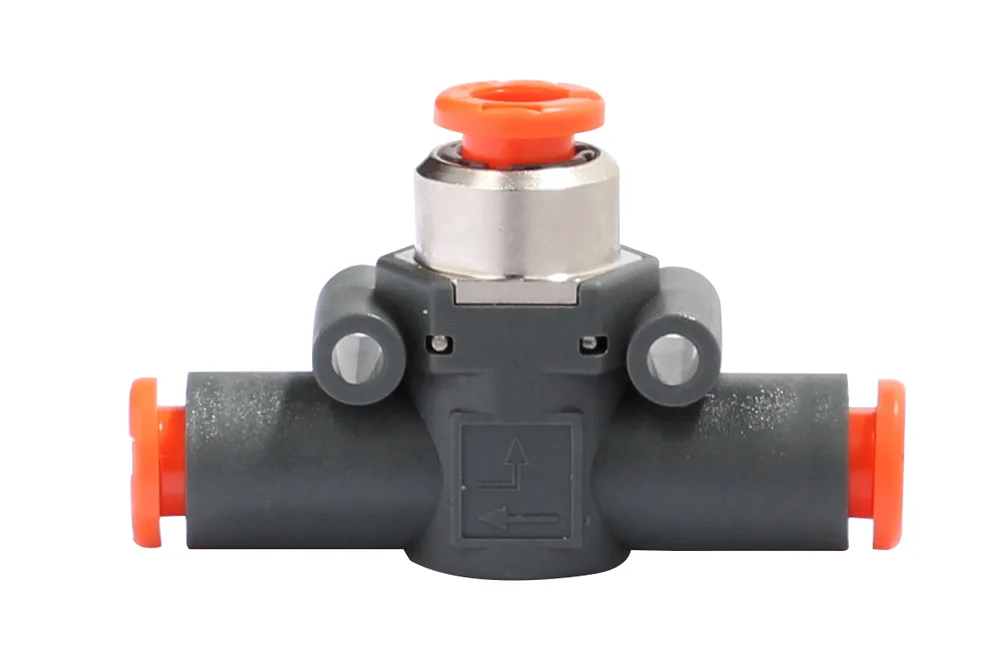

Pneumatic quick exhaust valve VSR L (hose – hose)

All products, Functional fittings/

Additional information

Material	P – material (plastic)
Standard length [m]	3

Quick exhaust valve type VSR L, terminated with push-in connections on both sides (hose – hose), with the exhaust discharged through the push-in connection. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9063001	Quick exhaust valve VSR L, hose 4 mm - hose 4 mm - hose 4 mm (exhaust)	-	10	In stock	Enquiry
MW-9063016	Quick exhaust valve VSR L, hose 6 mm - hose 6 mm - hose 6 mm (exhaust)	-	10	In stock	Enquiry
MW-9063024	Quick exhaust valve VSR L, hose 8 mm - hose 8 mm - hose 8 mm (exhaust)	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick exhaust valve type VSR L, terminated with push-in connections on both sides (hose – hose), with the exhaust discharged through the push-in connection. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.
