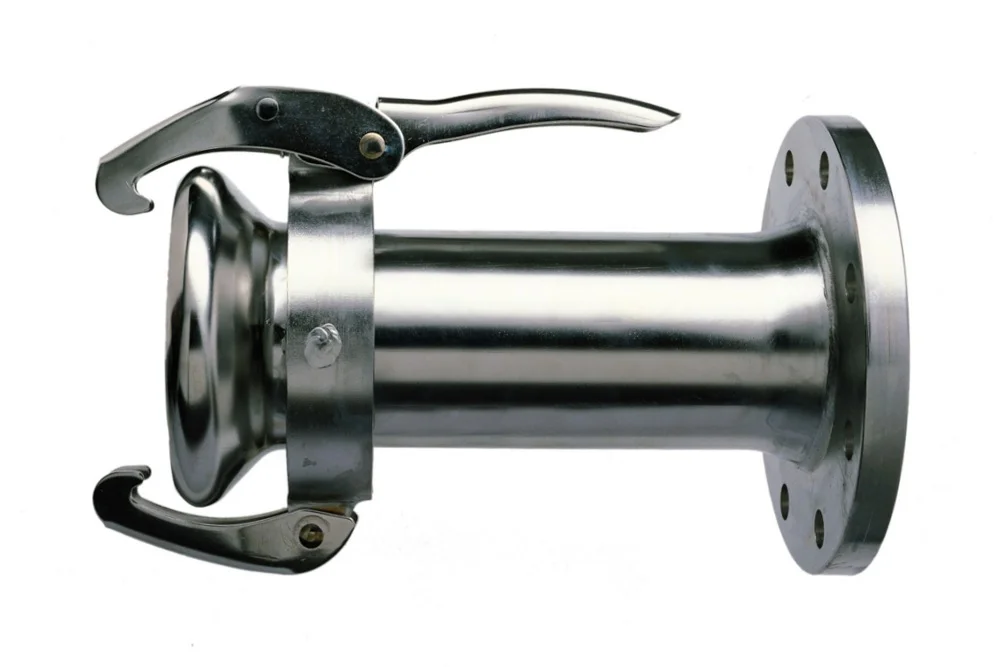

LAUX 42 lever connector socket with flange PN 10/16, carbon steel, KE
LAUX 42 lever connector socket with PN 10/16 flange for wide applications, e.g.: for the transport and unloading of bulk materials (grains, flours, feeds, granulates, cement, minerals), for pressure and vacuum pumps, for the construction of temporary water and air installations in construction, mining, agriculture, for irrigation systems. When selecting a connector for a medium other than water, attention should be paid to the correct selection of sealing material. The standard sealing is an EPDM gasket. Material: carbon steel, galvanized. Maximum working pressure: 12.5 bar (for liquids), 8 bar (for air). Tightness under vacuum. Operating temperature: from -50°C to +120°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
LAUX 42 lever connector socket with PN 10/16 flange for wide applications, e.g.: for the transport and unloading of bulk materials (grains, flours, feeds, granulates, cement, minerals), for pressure and vacuum pumps, for the construction of temporary water and air installations in construction, mining, agriculture, for irrigation systems. When selecting a connector for a medium other than water, attention should be paid to the correct selection of sealing material. The standard sealing is an EPDM gasket. Material: carbon steel, galvanized. Maximum working pressure: 12.5 bar (for liquids), 8 bar (for air). Tightness under vacuum. Operating temperature: from -50°C to +120°C.
Additional information
| Material | CS – steel (cast iron) |
|---|
