Is the BC left-handed bridge clamp for spiral reinforced hoses, AISI 430 steel, suitable for use with Kevlar- and Teflon-lined CL hoses?

Yes. The BC left-handed bridge clamp for spiral reinforced hoses, AISI 430 steel, is suitable for use with Kevlar- and Teflon-lined CL hoses. It is specifically intended for CLIP/CL-type hoses (e.g., KEVLAR SI CL, TEFLON CL) with a left-wound spiral; the bridge encompasses the spiral wire to ensure precise, non-damaging compression. The clampâs unique worm mechanism, compact housing and cold-extruded smooth inner thread provide secure, repeated tightening without harming the hose surface. Screw is galvanized steel; band and bridge are AISI 430.

Can the BC left-handed bridge clamp for spiral reinforced hoses, AISI 430 steel, be reused after multiple installations without compromising sealing?

BC left-handed bridge clamp for spiral reinforced hoses, AISI 430 steel can be reused multiple times without compromising sealing, provided it is inspected and not mechanically damaged. Its bridge design that encompasses the spiral and the smooth, coldâextruded internal thread allow secure repeated tightening and a nonâdamaging grip on impregnated fabric and spiralâreinforced hoses (e.g., KEVLAR SI CL, SILICON CL, TEFLON CL, GRIPFLEX). Reuse is acceptable when the band, bridge segments and galvanized screw show no deformation, corrosion or wear that would prevent even compression; replace the clamp if the bridge or thread is distorted, the screw strips, or sealing performance degrades.

Does the BC left-handed bridge clamp for spiral reinforced hoses, AISI 430 steel, resist corrosion in coastal environments?

BC left-handed bridge clamp for spiral reinforced hoses, AISI 430 steel does offer some corrosion resistance but is not ideal for harsh coastal environments. AISI 430 is a ferritic stainless steel with moderate resistance to atmospheric corrosion, but it has lower chloride (salt) corrosion resistance compared with austenitic grades (e.g., AISI 304 or 316). In coastal or marine atmospheres, prolonged exposure to salt spray, humidity and pollutants can cause pitting and rusting of AISI 430 over time, especially at joints, threads or where different metals contact (the screw is galvanized steel, which is also prone to corrosion in salty conditions). If the clamps will be used in coastal environments with frequent salt exposure, consider: - Choosing clamps made from higher-corrosion-resistant materials (AISI 316 or 316L), or fully stainless screws rather than galvanized; - Using protective coatings or periodic maintenance (wash off salt deposits, inspect and replace corroded parts); - Avoiding galvanic couples by matching materials. For occasional, short-term coastal exposure the BC left-handed bridge clamp in AISI 430 may be acceptable, but for continuous or long-term marine conditions select more resistant materials.

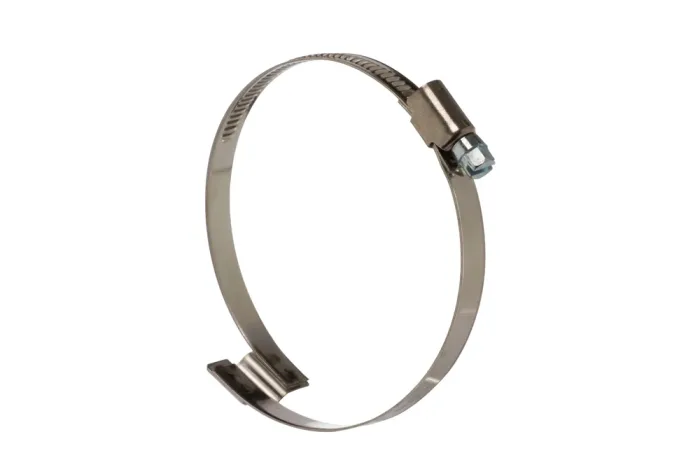

BC left-hand bridge clamp for spiral-reinforced hoses, AISI 430 steel

All products, Clamps for mounting ends/

Additional information

Material	SS – stainless steel

Left-hand bridge worm-drive clamp with a band width of 9 and 12 mm, intended for quick and easy repeated fastening of hoses reinforced with a steel spiral, e.g., ventilation hoses. The bridge’s task is to enclose the spiral wire and ensure the clamp fits the hose accurately. Using a bridge in the clamp provides a tight connection that does not damage the hose. The left-hand OML clamp is intended for mounting CLIP type hoses (hoses of this type are made of impregnated fabric, and the left-wound spiral is made of sheet metal and steel wire), e.g., KEVLAR SI CL, SILICON CL, TEFLON CL, GRIPFLEX. The clamp’s unique worm mechanism in a compact housing and the cold-formed thread in the band, smooth on the inside, ensure a secure, repeated grip without damaging the hose surface. The number of segments depends on the clamp’s minimum/maximum diameter. Material: AISI 430 steel (screw made of galvanized steel).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CL-OML-040-097-W2	Clamp 25÷40 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-040-127-W2	Clamp 25÷40 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-050-097-W2	Clamp 32÷50 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-050-127-W2	Clamp 32÷50 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-060-097-W2	Clamp 40÷60 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-060-127-W2	Clamp 40÷60 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-070-097-W2	Clamp 50÷70 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-070-127-W2	Clamp 50÷70 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-080-097-W2	Clamp 60÷80 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-080-127-W2	Clamp 60÷80 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-090-097-W2	Clamp 70÷90 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-090-127-W2	Clamp 70÷90 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-100-097-W2	Clamp 80÷100 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-100-127-W2	Clamp 80÷100 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-110-097-W2	Clamp 90÷110 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-110-127-W2	Clamp 90÷110 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-120-097-W2	Clamp 100÷120 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-120-127-W2	Clamp 100÷120 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-130-097-W2	Clamp 110÷130 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-130-127-W2	Clamp 110÷130 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-140-097-W2	Clamp 120÷140 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-140-127-W2	Clamp 120÷140 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-150-097-W2	Clamp 130÷150 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-150-127-W2	Clamp 130÷150 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-160-097-W2	Clamp 140÷160 mm left, width 9 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-160-127-W2	Clamp 140÷160 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-170-127-W2	Clamp 150÷170 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-180-127-W2	Clamp 160÷180 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-190-127-W2	Clamp 170÷190 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-200-127-W2	Clamp 180÷200 mm left, width 12 mm, bridge 7 mm, W2	-	-	In stock	Enquiry
CL-OML-215-126-W2	Clamp 195÷215 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-215-128-W2	Clamp 195÷215 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-225-126-W2	Clamp 205÷225 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-225-128-W2	Clamp 205÷225 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-235-126-W2	Clamp 215÷235 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-235-128-W2	Clamp 215÷235 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-245-126-W2	Clamp 225÷245 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-245-128-W2	Clamp 225÷245 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-255-126-W2	Clamp 235÷255 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-255-128-W2	Clamp 235÷255 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-265-126-W2	Clamp 225÷265 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-265-128-W2	Clamp 225÷265 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-275-126-W2	Clamp 235÷275 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-275-128-W2	Clamp 235÷275 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-285-126-W2	Clamp 245÷285 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-285-128-W2	Clamp 245÷285 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-295-126-W2	Clamp 255÷295 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-295-128-W2	Clamp 255÷295 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-315-126-W2	Clamp 275÷315 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-315-128-W2	Clamp 275÷315 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-335-126-W2	Clamp 295÷335 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-335-128-W2	Clamp 295÷335 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-365-126-W2	Clamp 325÷365 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-365-128-W2	Clamp 325÷365 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-415-126-W2	Clamp 355÷415 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-415-128-W2	Clamp 355÷415 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-435-126-W2	Clamp 375÷435 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-435-128-W2	Clamp 375÷435 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-465-126-W2	Clamp 405÷465 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-465-128-W2	Clamp 405÷465 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-515-126-W2	Clamp 455÷515 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-515-128-W2	Clamp 455÷515 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-615-126-W2	Clamp 535÷615 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-615-128-W2	Clamp 535÷615 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-715-126-W2	Clamp 635÷715 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-715-128-W2	Clamp 635÷715 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-815-126-W2	Clamp 735÷815 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-815-128-W2	Clamp 735÷815 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
CL-OML-915-126-W2	Clamp 835÷915 mm left, width 12 mm, bridge 6 mm, W2	-	-	In stock	Enquiry
CL-OML-915-128-W2	Clamp 835÷915 mm left, width 12 mm, bridge 8 mm, W2	-	-	In stock	Enquiry
