Is the Lever gate valve with GW BSP, type 0560 suitable for continuous operation at +90Â°C and full rated pressure per PED 2014/68/EU?

Yes. Lever gate valve with GW BSP, type 0560 is suitable for continuous operation at +90Â°C and full rated pressure per PED 2014/68/EU. The product description explicitly states compliance with PED 2014/68/EU and specifies an operating temperature range of â20Â°C to +90Â°C with âMaximum constant working pressure across the full range of operating temperatures.â Materials (brass body and valve, NBR body sealing, fiber stem sealing, carbon steel lever) are listed and the valve is intended for industrial and agricultural use. Ensure selection matches the exact rated pressure class and installation conditions for your application and verify any site-specific requirements or additional certifications if needed.

Can the Lever gate valve with GW BSP, type 0560 be used for agricultural and sewage tanker applications at -20Â°C to +90Â°C?

Yes. Lever gate valve with GW BSP, type 0560 is specified for use in agriculture and sewage tanker equipment and has an operating temperature range of -20Â°C to +90Â°C. Its double-jointed disc provides good sealing, body and valve made of brass, lever of carbon steel, stem sealing in fiber, body sealing in NBR, and BSP thread connection. It complies with PED Directive 2014/68/EU and is rated for maximum constant working pressure across the full operating temperature range, making it suitable for the stated applications and temperatures.

Does the Lever gate valve with GW BSP, type 0560 meet PED 2014/68/EU for max constant working pressure across all temperatures?

Yes. Lever gate valve with GW BSP, type 0560 meets PED 2014/68/EU and is specified as having a maximum constant working pressure across the full range of operating temperatures (-20Â°C to +90Â°C). The product description explicitly states compliance with PED 2014/68/EU and that the maximum constant working pressure applies across the entire operating temperature range.

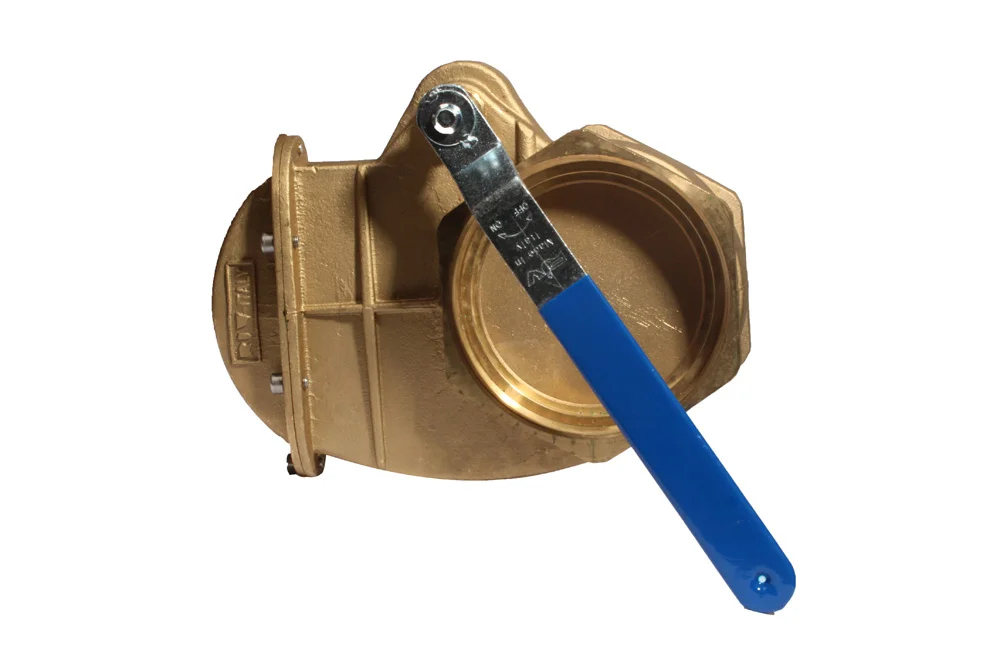

Lever gate valve with GW BSP, type 0560

All products, Gate valves/

Additional information

Material	B – brass (bronze)

Lever valve allowing for quick opening and closing of flow. The design of the valve with a double-jointed disc ensures good sealing. Used in agriculture, equipment for sewage tankers, and in industry. Complies with the requirements of the PED Directive 2014/68/EU. Maximum constant working pressure across the full range of operating temperatures. Body material: brass. Valve material: brass. Lever material: carbon steel. Stem sealing: fiber. Body sealing: NBR. Connection: BSP thread. Operating temperature: from -20°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RV-0560-050	Lever gate valve type 560 GW 2	50	16	In stock	Enquiry
RV-0560-065	Lever gate valve type 560 GW 2.1/2	65	16	In stock	Enquiry
RV-0560-075	Lever gate valve type 560 GW 3	75	10	In stock	Enquiry
RV-0560-100	Lever gate valve type 560 GW 4	100	10	In stock	Enquiry
RV-0560-150	Lever gate valve type 560 GW 6	150	8	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Lever valve allowing for quick opening and closing of flow. The design of the valve with a double-jointed disc ensures good sealing. Used in agriculture, equipment for sewage tankers, and in industry. Complies with the requirements of the PED Directive 2014/68/EU. Maximum constant working pressure across the full range of operating temperatures. Body material: brass. Valve material: brass. Lever material: carbon steel. Stem sealing: fiber. Body sealing: NBR. Connection: BSP thread. Operating temperature: from -20°C to +90°C.
