Is the Long arc 90Â° with BSP/external BSPT female thread, cast iron, type 1/13 suitable for continuous operation at 300Â°C and 20 bar?

Yes. The Long arc 90Â° with BSP/external BSPT female thread, cast iron, type 1/13 is suitable for continuous operation at 300Â°C and 20 bar. The product specification states an operating temperature up to +300Â°C with a working pressure of 20 bar at temperatures up to +300Â°C, so it meets the stated conditions. Ensure correct installation and compatibility with mating threads and system materials, and verify any applicable standards or certification requirements for your specific application.

Can Long arc 90Â° with BSP/external BSPT female thread, cast iron, type 1/13 be used continuously at 300Â°C with reduced pressure limits?

Yes - Long arc 90Â° with BSP/external BSPT female thread, cast iron, type 1/13 can be used continuously at 300Â°C provided the working pressure is limited to the specified 20 bar for that temperature. The product specification states operation up to +300Â°C with a working pressure of 25 bar up to +120Â°C and 20 bar up to +300Â°C. Ensure all other system factors (gaskets, bolting, adjacent fittings, corrosion allowances, and applicable standards) are compatible with continuous 300Â°C service and that installation and inspection meet relevant codes.

Does Long arc 90Â° with BSP/external BSPT female thread, cast iron, type 1/13 meet safety standards for 300Â°C operation?

Based on the provided description, Long arc 90Â° with BSP/external BSPT female thread, cast iron, type 1/13 appears designed for operation up to +300Â°C: material is ductile iron and the stated operating temperature is âup to +300Â°C.â The working pressure rating is given as 25 bar up to +120Â°C and 20 bar up to +300Â°C. Therefore, for safe operation at 300Â°C the fitting must be used within the reduced pressure limit of 20 bar and under the same service conditions assumed in the specification (compatible media, installation practice, and absence of additional mechanical or thermal stresses). However, final confirmation of safety requires: - Verification that the specific application (fluid/media, cyclic thermal loads, external stresses, corrosion, standards/regulations) is compatible with ductile iron at 300Â°C. - Confirmation that threads (BSP internal and BSPT external) and joint assembly meet pressure-tightness requirements at 300Â°C. - Compliance checks against relevant codes/standards and manufacturerâs installation and inspection instructions. In summary: Long arc 90Â° with BSP/external BSPT female thread, cast iron, type 1/13 is rated for temperatures up to +300Â°C but only at the reduced working pressure of 20 bar; ensure application-specific compatibility and standards compliance before declaring it safe for your 300Â°C service.

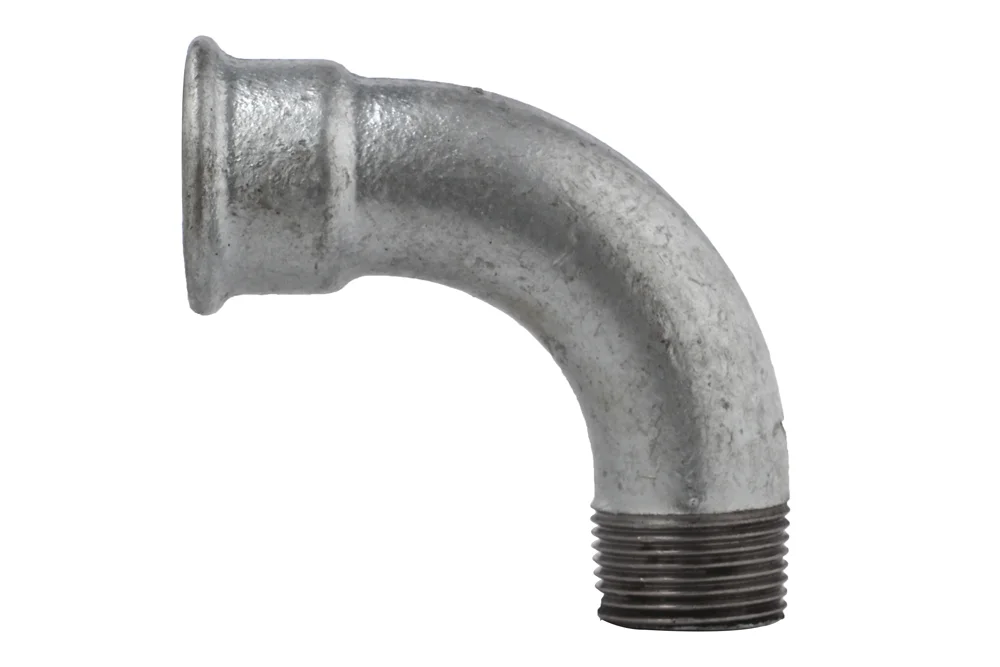

Long arc 90° with BSP/external BSPT female thread, cast iron, type 1/13

Additional information

Material	CS – steel (cast iron)

Long 90° bend with internal BSP thread and external BSPT thread for use in piping connections of industrial installations. Material: ductile iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-113-04	Long 90° bend with GW BSP / GZ BSPT 1/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-06	Long 90° bend with GW BSP / GZ BSPT 3/8", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-08	Long 90° bend with GW BSP / GZ BSPT 1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-12	Long 90° bend with GW BSP / GZ BSPT 3/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-16	Long 90° bend with GW BSP / GZ BSPT 1", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-20	Long 90° bend with GW BSP / GZ BSPT 1.1/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-24	Long 90° bend with GW BSP / GZ BSPT 1.1/2", galvanized cast iron.	-	20	In stock	Enquiry
EE-113-32	Long 90° bend with GW BSP / GZ BSPT 2", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-40	Long 90° bend with GW BSP / GZ BSPT 2.1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-48	Long 90° bend with GW BSP / GZ BSPT 3", galvanized cast iron.	-	25	In stock	Enquiry
EE-113-64	Long 90° bend with GW BSP / GZ BSPT 4", galvanized cast iron.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Long 90° bend with internal BSP thread and external BSPT thread for use in piping connections of industrial installations. Material: ductile iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).
