Is the M nut WALProÂ® DIN 2353 with ring, carbon steel compatible with Eaton Walterscheidâ¢ couplings across LL, L, and S series?

Yes. The M nut WALProÂ® DIN 2353 with ring, carbon steel Format is compatible with Eaton Walterscheidâ¢ couplings across the LL (very light), L (light) and S (heavy) series. Itâs specifically the WALProÂ® nut with metric thread and locking ring for DIN 2353 Eaton Walterscheidâ¢ couplings, type M, and is offered for LL, L and S series. Made of carbon steel with Guardian Sealâ¢ coating, it is designed to meet the DIN 2353 interface and fit the corresponding Eaton Walterscheidâ¢ coupling sizes in those series.

Can the M nut WALProÂ® DIN 2353 with ring, carbon steel be used interchangeably across LL, L, and S Eaton Walterscheidâ¢ coupling series?

No - the M nut WALProÂ® DIN 2353 with ring, carbon steel cannot be assumed interchangeable across LL, L, and S Eaton Walterscheidâ¢ coupling series. Although the M nut WALProÂ® DIN 2353 with ring, carbon steel is offered for LL (very light), L (light) and S (heavy) series, each series has specific dimensional and pressure ratings; correct fit and sealing depend on matching the nut to the corresponding series size and pressure class. Use the nut version specified for the exact Eaton Walterscheidâ¢ coupling series and size to ensure proper assembly, safe operation, and leak-free performance.

Does the M nut WALProÂ® DIN 2353 with ring, carbon steel fit Eaton Walterscheidâ¢ M couplings in LL, L, and S series?

Yes. The M nut WALProÂ® DIN 2353 with ring, carbon steel is designed for Eaton Walterscheidâ¢ couplings, type M, and is available specifically for the LL (very light), L (light) and S (heavy) series. Material and Guardian Sealâ¢ coating match the intended usage, so it will fit those LL, L and S series Eaton Walterscheidâ¢ M couplings.

Nut M WALPro® DIN 2353 with a ring, carbon steel

Additional information

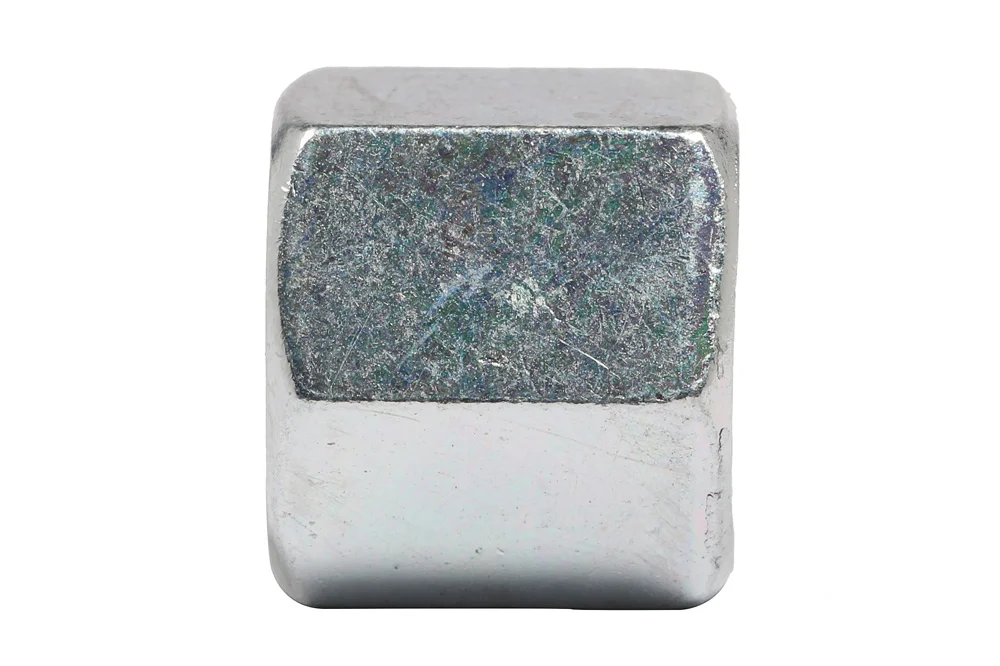

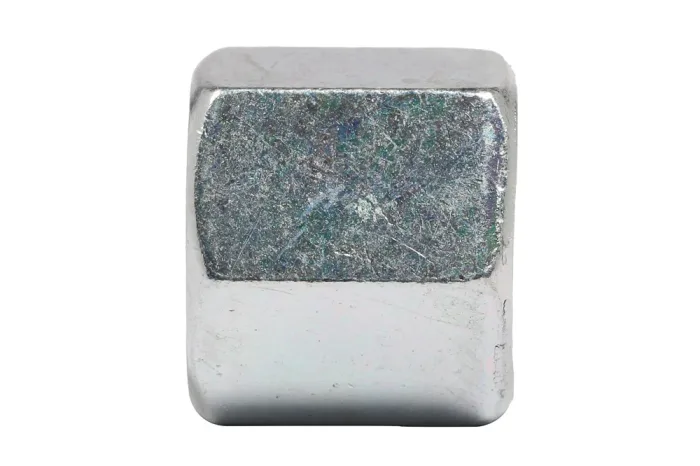

Nut WALPro® with metric thread and a ring cutting for DIN 2353 fittings Eaton Walterscheid™, type M. Available as: LL (extra-light series), L (series light), S (series heavy). Material: carbon steel, Guardian Seal coating™.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-MWP-04LL-W	Nut DIN 2353 with ring WALPro MWP 4LL M8x1	-	-	In stock	Enquiry
HD-MWP-06L-W	Nut DIN 2353 with ring WALPro MWP 6L M12x1.5	-	-	In stock	Enquiry
HD-MWP-06LL-W	Nut DIN 2353 with ring WALPro MWP 6LL M10x1	-	-	In stock	Enquiry
HD-MWP-06S-W	Nut DIN 2353 with ring WALPro MWP 6S M14x1.5	-	-	In stock	Enquiry
HD-MWP-08L-W	Nut DIN 2353 with ring WALPro MWP 8L M14x1.5	-	-	In stock	Enquiry
HD-MWP-08LL-W	Nut DIN 2353 with ring WALPro MWP 8LL M12x1	-	-	In stock	Enquiry
HD-MWP-08S-W	Nut DIN 2353 with ring WALPro MWP 8S M16x1.5	-	-	In stock	Enquiry
HD-MWP-10L-W	Nut DIN 2353 with ring WALPro MWP 10L M16x1.5	-	-	In stock	Enquiry
HD-MWP-10S-W	Nut DIN 2353 with ring WALPro MWP 10S M18x1.5	-	-	In stock	Enquiry
HD-MWP-12L-W	Nut DIN 2353 with ring WALPro MWP 12L M18x1.5	-	-	In stock	Enquiry
HD-MWP-12S-W	Nut DIN 2353 with ring WALPro MWP 12S M20x1.5	-	-	In stock	Enquiry
HD-MWP-14S-W	Nut DIN 2353 with ring WALPro MWP 14S M22x1.5	-	-	In stock	Enquiry
HD-MWP-15L-W	Nut DIN 2353 with ring WALPro MWP 15L M22x1.5	-	-	In stock	Enquiry
HD-MWP-16S-W	Nut DIN 2353 with ring WALPro MWP 16S M24x1.5	-	-	In stock	Enquiry
HD-MWP-18L-W	Nut DIN 2353 with ring WALPro MWP 18L M26x1.5	-	-	In stock	Enquiry
HD-MWP-20S-W	Nut DIN 2353 with ring WALPro MWP 20S M30x2	-	-	In stock	Enquiry
HD-MWP-22L-W	Nut DIN 2353 with ring WALPro MWP 22L M30x2	-	-	In stock	Enquiry
HD-MWP-25S-W	Nut DIN 2353 with ring WALPro MWP 25S M36x2	-	-	In stock	Enquiry
HD-MWP-28L-W	Nut DIN 2353 with ring WALPro MWP 28L M36x2	-	-	In stock	Enquiry
HD-MWP-30S-W	Nut DIN 2353 with ring WALPro MWP 30S M42x2	-	-	In stock	Enquiry
HD-MWP-35L-W	Nut DIN 2353 with ring WALPro MWP 35L M45x2	-	-	In stock	Enquiry
HD-MWP-38S-W	Nut DIN 2353 with ring WALPro MWP 38S M52x2	-	-	In stock	Enquiry
HD-MWP-42L-W	Nut DIN 2353 with ring WALPro MWP 42L M52x2	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Nut WALPro® with metric thread and a ring cutting for DIN 2353 fittings Eaton Walterscheid™, type M. Available as: LL (extra-light series), L (series light), S (series heavy). Material: carbon steel, Guardian Seal coating™.
