Is the ESV weldable straight bulkhead fitting, oiled carbon steel, available in both L (light) and S (heavy) series and compliant with DIN 2353 specifications?

Yes. The ESV weldable straight bulkhead fitting, oiled carbon steel is available in both L (light) and S (heavy) series and is compliant with DIN 2353, described as a 24Â° DIN 2353 socket with external metric thread and welding connection, made of oil-treated carbon steel.

Can the ESV weldable straight bulkhead fitting, oiled carbon steel, 24Â° DIN 2353 socket with external metric thread, be welded to thin-walled tubes?

Yes. The ESV weldable straight bulkhead fitting, oiled carbon steel, 24Â° DIN 2353 socket with external metric thread can be welded to thinâwalled tubes provided appropriate welding technique and joint preparation are used. As a weldable DIN 2353 straight wall fitting (type ESV) it is designed for welding connection; choose the correct series (L for light, S for heavy) to match tube wall thickness and mechanical requirements, ensure proper alignment, cleaning (remove oil if required by welding spec), and use a suitable welding process and filler metal compatible with oilâtreated carbon steel. Follow applicable welding standards and pressure ratings for safe, leakâfree joints.

Does the ESV weldable straight bulkhead fitting, oiled carbon steel, require post-weld heat treatment?

Based on the provided description of the ESV weldable straight bulkhead fitting, oiled carbon steel (24Â° DIN 2353 socket with external metric thread and welding connection; available in L and S series; material: oil-treated carbon steel), a general conclusion is: Post-weld heat treatment (PWHT) is not explicitly required by the DIN 2353 description itself. However, whether PWHT is necessary depends on several factors not specified in the product text: the exact carbon content and alloying of the steel, the thickness and mass of the fitting and mating components, the welding procedure and heat input, applicable piping or pressure-vessel codes or standards, and the service conditions (operating temperature, pressure, and sour/corrosive environment). For typical lowâcarbon, oilâtreated carbon steel fittings welded in standard applications, PWHT is often not mandatory, but higher carbon equivalents, heavy sections, or critical/highâtemperature/highâpressure services may require PWHT per relevant codes (e.g., EN, ASME) or customer specifications. Recommendation: Consult the manufacturerâs welding/WPS documentation and the applicable code or project specifications to confirm whether PWHT is required for your specific ESV weldable straight bulkhead fitting, oiled carbon steel, application.

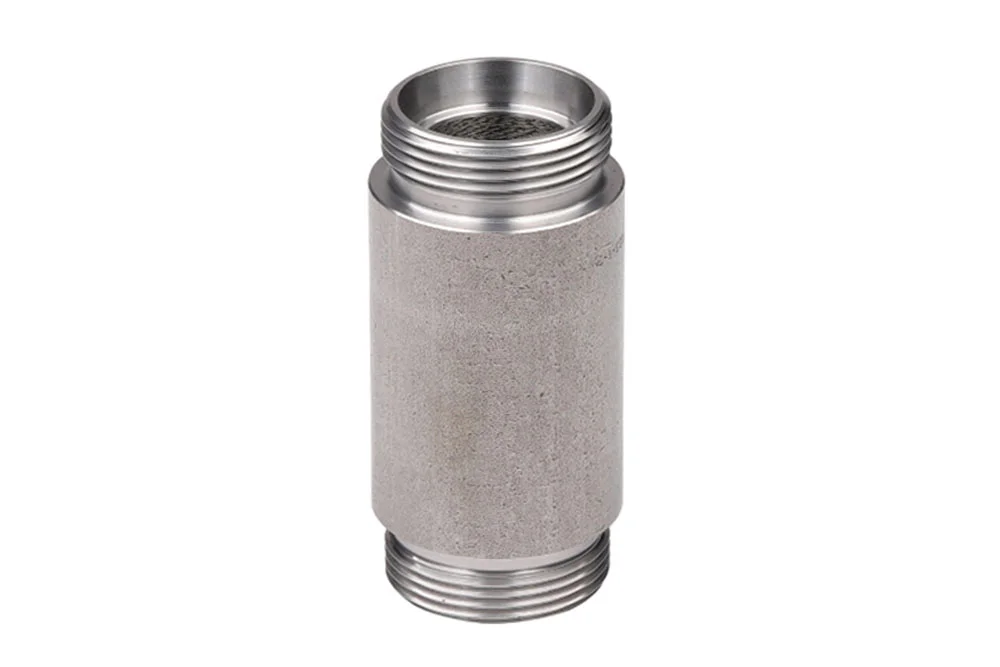

Fitting straight bulkhead for welding ESV, oiled carbon steel

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 straight bulkhead for welding, type ESV: 24° DIN 2353 socket with metric male thread and with connection for welding. Available as: L (series light), S (series heavy). Material: oiled carbon steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-ESV-06L	Fitting DIN 2353 ESV 6L	-	315	In stock	Enquiry
HD-ESV-06S	Fitting DIN 2353 ESV 6S	-	630	In stock	Enquiry
HD-ESV-08L	Fitting DIN 2353 ESV 8L	-	315	In stock	Enquiry
HD-ESV-08S	Fitting DIN 2353 ESV 8S	-	630	In stock	Enquiry
HD-ESV-10L	Fitting DIN 2353 ESV 10L	-	315	In stock	Enquiry
HD-ESV-10S	Fitting DIN 2353 ESV 10S	-	630	In stock	Enquiry
HD-ESV-12L	Fitting DIN 2353 ESV 12L	-	315	In stock	Enquiry
HD-ESV-12S	Fitting DIN 2353 ESV 12S	-	630	In stock	Enquiry
HD-ESV-14S	Fitting DIN 2353 ESV 14S	-	630	In stock	Enquiry
HD-ESV-15L	Fitting DIN 2353 ESV 15L	-	315	In stock	Enquiry
HD-ESV-16S	Fitting DIN 2353 ESV 16S	-	400	In stock	Enquiry
HD-ESV-18L	Fitting DIN 2353 ESV 18L	-	315	In stock	Enquiry
HD-ESV-20S	Fitting DIN 2353 ESV 20S	-	400	In stock	Enquiry
HD-ESV-22L	Fitting DIN 2353 ESV 22L	-	160	In stock	Enquiry
HD-ESV-25S	Fitting DIN 2353 ESV 25S	-	400	In stock	Enquiry
HD-ESV-28L	Fitting DIN 2353 ESV 28L	-	160	In stock	Enquiry
HD-ESV-30S	Fitting DIN 2353 ESV 30S	-	400	In stock	Enquiry
HD-ESV-35L	Fitting DIN 2353 ESV 35	-	160	In stock	Enquiry
HD-ESV-38S	Fitting DIN 2353 ESV 38S	-	315	In stock	Enquiry
HD-ESV-42L	Fitting DIN 2353 ESV 42L	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 straight bulkhead for welding, type ESV: 24° DIN 2353 socket with metric male thread and with connection for welding. Available as: L (series light), S (series heavy). Material: oiled carbon steel.
