Can the Pressure gauge for reducers with rear connection, square disc, type M be used with SYNTESI, BIT, SKILLAIR, and NEW DEAL reducers at operating temp up to +50Â°C?

Yes. Pressure gauge for reducers with rear connection, square disc, type M can be used with SYNTESI, BIT, SKILLAIR, and NEW DEAL reducers at operating temperatures up to +50Â°C. The described gauge is specified for use with those reducer types, has an operating temperature limit of +50Â°C, and matches the physical and performance details provided (1/8" size, 40x40 mm square dial, aluminum dial, plastic housing, dry/filling none). Ensure you select a measurement range (0â4 or 0â12 bar) so the working pressure does not exceed 75% of the gaugeâs maximum range and confirm the chosen range covers both bar and PSI readings as required.

Can the Pressure gauge for reducers with rear connection, square disc, type M be used with SYNTESI, BIT, SKILLAIR, and NEW DEAL reducers if the working pressure stays below 75% of its max range?

Yes - Pressure gauge for reducers with rear connection, square disc, type M can be used with SYNTESI, BIT, SKILLAIR, and NEW DEAL reducers provided the selected measurement range keeps the working pressure below 75% of the gaugeâs maximum range. Choose either 0â4 bar or 0â12 bar scale so that the reducerâs normal operating pressure does not exceed 75% of that range (e.g., for a 0â4 bar gauge working pressure should stay â¤3.0 bar; for 0â12 bar gauge â¤9.0 bar). Ensure 1/8" fitting, ambient temperature â¤ +50Â°C, and note the gauge is dry, plastic housing, aluminum dial.

Product: Pressure gauge for reducers with rear connection, square dial, type M - Mounting: universal, for reducers SYNTESI, BIT, SKILLAIR, NEW DEAL - Connection size: 1/8" (rear) - Dial shape/size: square, 40 Ã 40 mm - Scale: dual scale, bars and PSI - Measurement ranges (select so working pressure â¤75% of max): 0â4 bar or 0â12 bar - Operating temperature: up to +50Â°C - Housing material: plastic - Dial material: aluminum - Filling: none (dry gauge) FAQ (English) Q: Can the Pressure gauge for reducers with rear connection, square disc, type M be fitted to SYNTESI, BIT, SKILLAIR, and NEW DEAL reducers with a 40Ã40 mm square dial?

Yes. The Pressure gauge for reducers with rear connection, square disc, type M can be fitted to SYNTESI, BIT, SKILLAIR, and NEW DEAL reducers. It is a universal rearâmounted gauge with a 1/8" connection and a 40 Ã 40 mm square dial. Choose the measurement range so the reducerâs normal working pressure does not exceed 75% of the gaugeâs full scale (available ranges: 0â4 bar or 0â12 bar). The scale shows bars and PSI; operating temperature up to +50Â°C. Housing is plastic, dial is aluminum, and the gauge is dry (no filling).

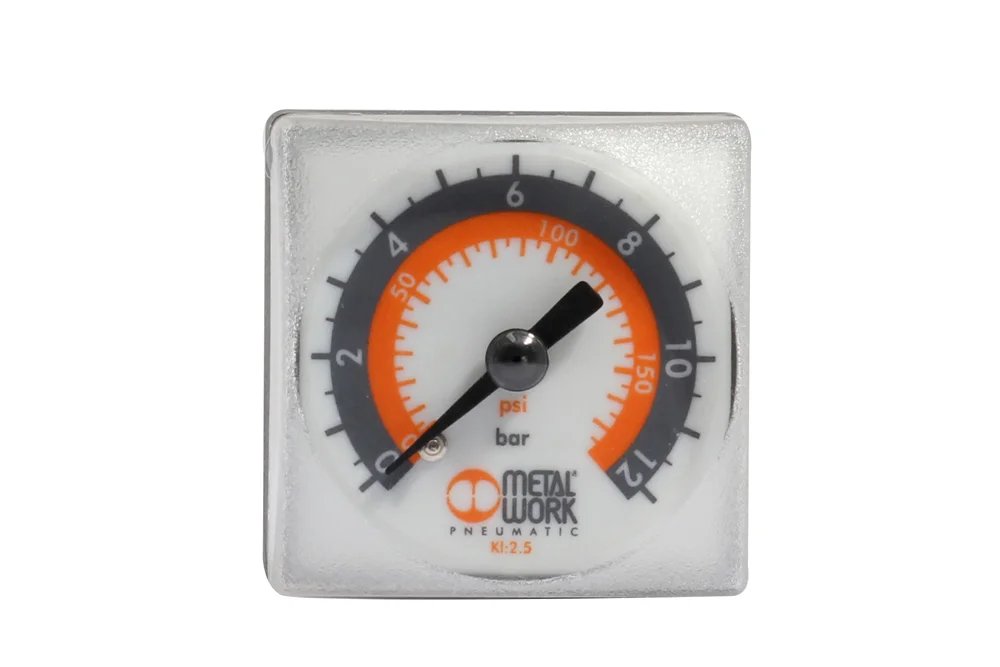

Pressure gauge for reducers with rear connection, square disc, type M

Accessories for FRL, All products/

Additional information

Maximum operating temperature [°C]	50

Universal pressure gauge mounted to reducers of types SYNTESI, BIT, SKILLAIR, and NEW DEAL with a square dial. The measurement range should be selected appropriately to the working pressure so that it does not exceed 75% of the maximum range. Scale expressed in bars and PSI. Size: 1/8″. Operating temperature: up to +50°C. Dial diameter: 40×40 mm. Measurement range: 0 ÷ 4 or 0 ÷ 12 bar. Housing material: plastic. Dial material: aluminum. Filling: none (dry gauge).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-9700109	Pressure gauge M 40x40 1/8, 0÷4 bar	-	-	In stock	0 zł		Enquiry
MW-9700110	Pressure gauge M 40x40 1/8 0÷12 bar	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal pressure gauge mounted to reducers of types SYNTESI, BIT, SKILLAIR, and NEW DEAL with a square dial. The measurement range should be selected appropriately to the working pressure so that it does not exceed 75% of the maximum range. Scale expressed in bars and PSI. Size: 1/8″. Operating temperature: up to +50°C. Dial diameter: 40×40 mm. Measurement range: 0 ÷ 4 or 0 ÷ 12 bar. Housing material: plastic. Dial material: aluminum. Filling: none (dry gauge).
