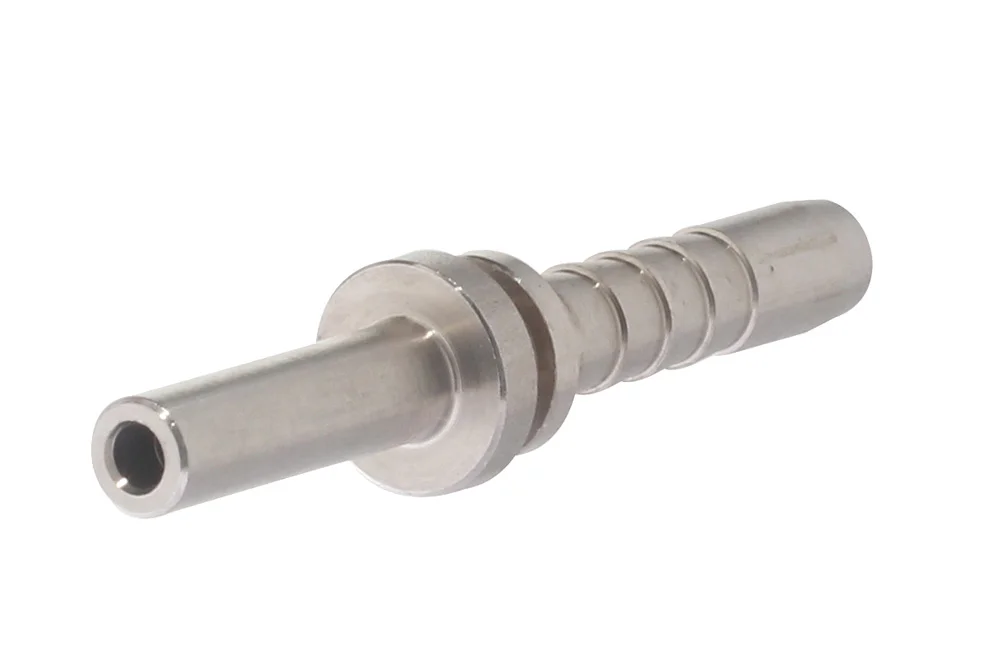

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for the hose), with a metric tube, sealing with a cutting ring (BEL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.
List of product variants
Article number
Product variant name
Nominal inner diameter
Working pressure [bar]
Enquiry
Catalogue
TI-ZMR111-06-02-SS
End fitting 6 mm, hose 1/8", lightweight, AISI 316L
3
-
TI-ZMR111-06-03-SS
End fitting 6 mm, hose 3/16", lightweight, AISI 316L
5
-
TI-ZMR111-06-04-SS
End, tubular 6 mm, hose 1/4", lightweight, AISI 316L
6
-
TI-ZMR111-08-04-SS
End fitting 8 mm, hose 1/4", lightweight, AISI 316L
6
-
TI-ZMR111-08-05-SS
End cap 8 mm, hose 5/16", lightweight, AISI 316L
8
-
TI-ZMR111-08-06-SS
End cap 8 mm, hose 3/8", lightweight, AISI 316L
10
-
TI-ZMR111-10-05-SS
End cap 10 mm, hose 5/16", lightweight, AISI 316L
8
-
TI-ZMR111-10-06-SS
End cap 10 mm, hose 3/8", lightweight, AISI 316L
10
-
TI-ZMR111-12-06-SS
End cap 12 mm, hose 3/8", lightweight, AISI 316L
10
-
TI-ZMR111-12-08-SS
End, tubular 12 mm, hose 1/2", lightweight, AISI 316L
12
-
TI-ZMR111-15-06-SS
End cap 15 mm, hose 3/8", lightweight, AISI 316L
10
-
TI-ZMR111-15-08-SS
End cap 15 mm, hose 1/2", lightweight, AISI 316L
12
-
TI-ZMR111-18-08-SS
End cap 18 mm, hose 1/2", lightweight, AISI 316L
12
-
TI-ZMR111-18-10-SS
End cap 18 mm, hose 5/8", lightweight, AISI 316L
16
-
TI-ZMR111-18-12-SS
End cap 18 mm, hose 3/4", lightweight, AISI 316L
20
-
TI-ZMR111-22-10-SS
End cap 22 mm, hose 5/8", lightweight, AISI 316L
16
-
TI-ZMR111-22-12-SS
End cap 22 mm, hose 3/4", lightweight, AISI 316L
20
-
TI-ZMR111-28-16-SS
End cap 28 mm, hose 1", lightweight, AISI 316L
25
-
TI-ZMR111-35-20-SS
End cap 35 mm, hose 1.1/4", lightweight, AISI 316L
32
-
TI-ZMR111-42-24-SS
End cap 42 mm, hose 1.1/2", lightweight, AISI 316L
38
-
Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for the hose), with a metric tube, sealing with a cutting ring (BEL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.
