What maintenance is required for the Miniature reducing valve RML (thread - wire) to ensure reliable pressure regulation between 1â8 bar?

To ensure reliable pressure regulation between 1â8 bar for the Miniature reducing valve RML (thread - wire), perform the following maintenance: - Regular visual inspection: check for external damage, corrosion, loose connections and intact O-ring at the inlet and secure plug connection at the outlet. - Leak checks: periodically pressurize the system and inspect all joints, inlet O-ring and outlet plug for leaks. Replace O-ring or tighten plug if leakage found. - Filter and medium quality: use only filtered compressed air; inspect and clean/replace upstream filters regularly to prevent contamination that can foul the valve internals. - Drain moisture and contaminants: if condensate accumulates, drain upstream dryers/separators and ensure media is within spec (oiled or non-oiled acceptable). - Functional test: cycle the valve under normal operating conditions and verify stable downstream pressure across the 1â8 bar range. Adjust setpoint and confirm no drift. - Cleaning and debris removal: if response is sluggish or regulation unstable, depressurize, remove valve following safety procedures and clean internal parts of debris; avoid aggressive solvents that damage seals. - Seal replacement: replace O-rings and wear parts at scheduled intervals or if signs of wear, hardening or cracking appear. - Temperature and pressure limits: ensure operation within -20Â°C to +60Â°C and below 10 bar working pressure to prevent premature failure. - Service interval and records: establish periodic maintenance intervals based on duty cycle and environment, and log inspections, tests and replacements. Following these steps preserves function and prolongs service life of the Miniature reducing valve RML (thread - wire).

How does the Miniature reducing valve RML (thread - wire) perform with oiled vs. non-oiled compressed air in the 1â8 bar range?

The Miniature reducing valve RML (thread - wire) works reliably with both oiled and non-oiled compressed air in the 1â8 bar output range. Its design for filtered compressed air and specified materials allows stable pressure reduction up to the 10 bar working pressure, maintaining set output between 1 and 8 bar across the -20Â°C to +60Â°C temperature range. Oiled air can improve lubrication of internal moving parts and may reduce wear and sticking in long-term or high-cycle use; non-oiled air is acceptable if filtration is adequate to prevent contamination. For best long-term stability and minimal maintenance, follow filtration and maintenance recommendations and avoid particulate or liquid ingress regardless of oil content.

Can the Miniature reducing valve RML (thread - wire) be used continuously at 8 bar without reduced lifespan?

Yes. the Miniature reducing valve RML (thread - wire) can be used continuously at an output pressure of 8 bar without inherently reducing its lifespan, provided operating conditions remain within the specified limits. Key points to ensure reliable, long-term operation: - The valveâs specified output pressure range is 1â8 bar and its working (maximum upstream) pressure is 10 bar. Running at an output of 8 bar is within the designed range. - Ensure the supply (upstream) pressure does not exceed the 10 bar working pressure; frequent or sustained overpressure will shorten service life. - Use only the specified medium: filtered compressed air (oiled or non-oiled). Contaminants or unfiltered air accelerate wear and may cause malfunction. - Maintain operating temperature within â20Â°C to +60Â°C. Exceeding this range can degrade seals and internal components. - Proper installation: threaded inlet with O-ring and correct outlet plug connection; avoid mechanical stress, misalignment or torque beyond recommendations. - Regular maintenance: periodic inspection, filtration element checks and replacement of worn O-rings/seals will preserve lifespan when operating continuously at high output pressure. - If duty involves frequent pressure cycling, pulsations, or aggressive contaminants, consider additional measures (dampers, pulsation absorbers, higher-filtration) or consult the manufacturer. In summary, continuous use at 8 bar is within the valveâs design limits and should not by itself reduce lifespan if upstream pressure, medium quality, temperature, installation and maintenance adhere to the specifications.

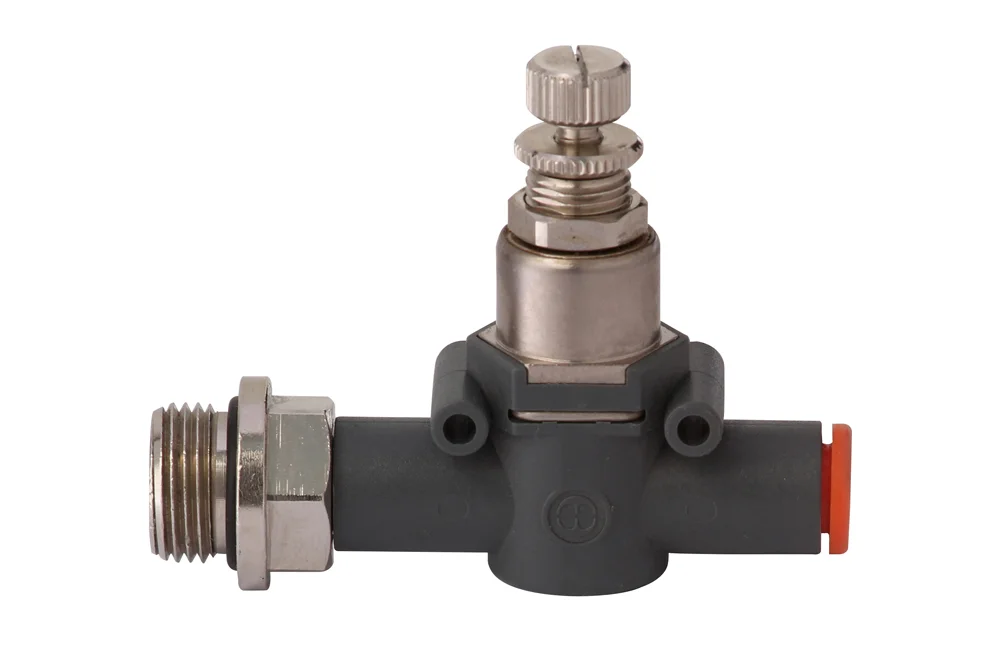

Miniature reducing valve RML (thread – wire)

All products, Functional fittings/

Additional information

Material	P – material (plastic)

Miniature RML type pressure reducing valve (threaded connection with O-ring at the inlet and plug connection at the outlet) designed to reduce higher pressure to lower pressure downstream of the valve. Output pressure range: 1 ÷ 8 bar. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9061408	RML pressure reducing valve, GZ BSP 1/8" - hose 6 mm (outlet)	-	10	In stock	Enquiry
MW-9061409	RML pressure reducing valve, GZ BSP 1/4" - hose 6 mm (outlet)	-	10	In stock	Enquiry
MW-9061410	RML pressure reducing valve, GZ BSP 1/8" - hose 8 mm (outlet)	-	10	In stock	Enquiry
MW-9061411	RML pressure reducing valve, GZ BSP 1/4" - hose 8 mm (outlet)	-	10	In stock	Enquiry
MW-9061412	RML pressure reducing valve, GZ BSP 3/8" - hose 8 mm (outlet)	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Miniature RML type pressure reducing valve (threaded connection with O-ring at the inlet and plug connection at the outlet) designed to reduce higher pressure to lower pressure downstream of the valve. Output pressure range: 1 ÷ 8 bar. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.
