What maintenance is required for the Miniature reduction valve RML (wire - wire) to ensure reliable pressure control of 1â8 bar with filtered compressed air?

To ensure reliable pressure control of 1â8 bar with filtered compressed air, perform the following maintenance for the Miniature reduction valve RML (wire - wire): - Regular inspection: check valve body, connections and wiring for visible damage, corrosion or leaks every 3â6 months depending on duty cycle. - Filter maintenance: keep the upstream air filter clean.replace or clean filter elements per manufacturer schedule or when differential pressure rises.to prevent particulates entering the valve. - Drain condensate: regularly remove condensate from the air system and any local separators to avoid moisture contamination; frequency depends on environmental humidity. - Lubrication: the valve is suitable for oiled or non-oiled air; if using non-oiled air and the application requires lubrication, follow system-wide lubrication practice. Do not apply external lubricants to internal valve parts unless specified by manufacturer. - Functional check: cycle the valve and verify stable downstream pressure across the 1â8 bar range; confirm setpoint retention and absence of pressure drift. - Leak test: perform pressure-hold and leak tests on inlet/outlet plugâin connections (wireâwire) and seals; tighten or replace fittings and seals if leaks are found. - Clean internals when performance degrades: if control becomes erratic or sluggish, remove valve, clean internal components with appropriate compressed-air-compatible solvent, inspect diaphragms/seals and replace worn parts. - Seal and diaphragm replacement: replace wear parts (seals, diaphragms, Oârings) proactively per operating hours or if inspection shows deterioration. - Temperature and pressure limits: ensure operating conditions remain within â20Â°C to +60Â°C and max 10 bar working pressure to prevent premature failure. - Record keeping: log maintenance actions, findings and any setpoint adjustments. Following these steps will help maintain stable pressure reduction and prolong service life of the Miniature reduction valve RML (wire - wire).

How does the Miniature reduction valve RML (wire - wire) perform with oiled versus non-oiled filtered compressed air?

The Miniature reduction valve RML (wire - wire) is designed for filtered compressed air and is compatible with both oiled and non-oiled air. In both cases it reduces inlet pressure (up to 10 bar working) to an adjustable output between 1 and 8 bar and operates reliably from â20 Â°C to +60 Â°C. Oiled air can provide slightly smoother internal lubrication and may reduce wear over long service life in heavily cycled systems; non-oiled air avoids oil contamination downstream. Filtration remains essential for either medium to protect the valve internals and ensure stable pressure regulation and longevity.

Can the Miniature reduction valve RML (wire - wire) handle rapid pressure surges up to 10 bar without damage?

Miniature reduction valve RML (wire - wire) has a maximum working pressure of 10 bar and an output pressure range of 1â8 bar. Short, occasional pressure surges up to the stated working pressure (10 bar) are within the valveâs specified capability. However, repeated or sustained rapid pressure spikes reaching or briefly exceeding 10 bar can risk premature wear, seal damage, or malfunction because the valve is designed to operate up to, not repeatedly beyond, that limit. If your system may experience frequent or very fast transients near 10 bar, consider installing protective measures (e.g., pressure surge dampers, accumulators, or upstream relief valves) or selecting a valve with a higher working-pressure rating to ensure reliable long-term performance.

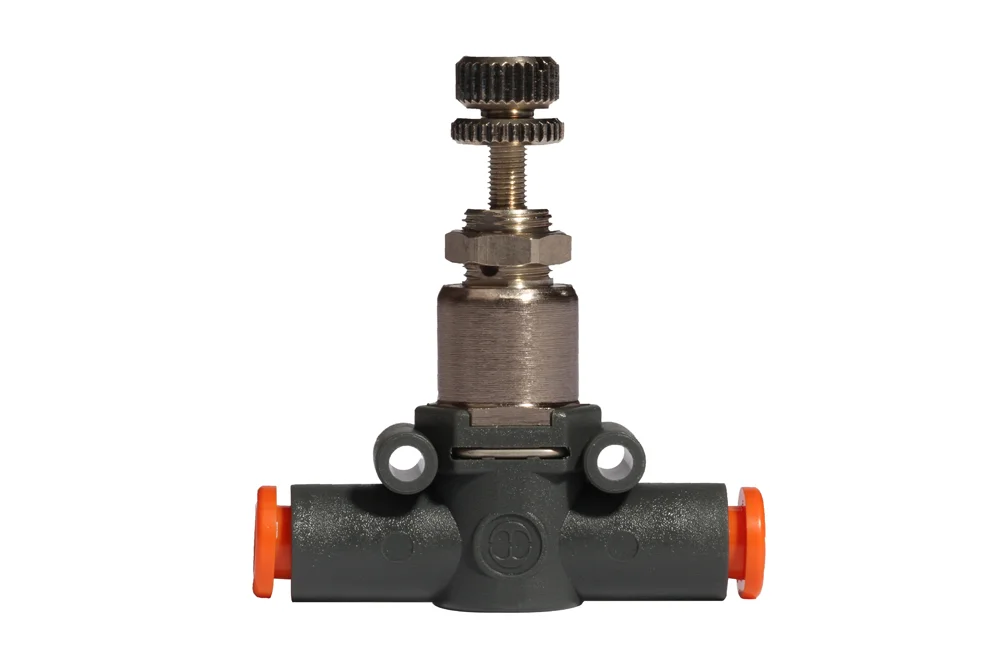

Miniature reduction valve RML (wire – wire)

All products, Functional fittings/

Additional information

Material	P – material (plastic)

Miniature RML type pressure reducing valve (plug-in connection at the inlet and outlet of the valve) designed to reduce higher pressure to lower pressure downstream of the valve. Output pressure range: 1 ÷ 8 bar. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-9061316	RML pressure reducing valve, hose 6 mm - hose 6 mm	-	10	In stock	0 zł		Enquiry
MW-9061324	RML pressure reducing valve, 8 mm hose - 8 mm hose	-	10	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Miniature RML type pressure reducing valve (plug-in connection at the inlet and outlet of the valve) designed to reduce higher pressure to lower pressure downstream of the valve. Output pressure range: 1 ÷ 8 bar. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.
