Does the Oil flow divider with 50/50 split, type FPFD guarantee â¤10% flow division error between outlets 2a and 2b up to 120 bar pressure difference?

Yes. Oil flow divider with 50/50 split, type FPFD guarantees a maximum flow division error of â¤10% between outlets 2a and 2b provided the pressure difference between those outlets does not exceed 120 bar. This specification (division error â¤10% at Îp â¤120 bar) is stated in the product description.

How does the Oil flow divider with 50/50 split, type FPFD maintain â¤10% division error between outlets 2a and 2b across varying temperatures?

The Oil flow divider with 50/50 split, type FPFD maintains â¤10% division error between outlets 2a and 2b across varying temperatures by combining mechanical balancing, pressure-compensating design and suitable materials/seals. Its internal valve mechanism splits pumped hydraulic oil into two matched flow paths so that flow resistances remain equal under normal conditions. The design tolerates up to 120 bar differential between 2a and 2b while keeping imbalance within 10%. Galvanized steel body and valve provide stable geometry and low thermal distortion over â30Â°C to +100Â°C, and NBR seals maintain sealing performance and prevent leakage over that temperature range. Together these features keep flow paths consistent and limit division error despite temperature-induced viscosity changes.

Can the Oil flow divider with 50/50 split, type FPFD be mounted using the visible mounting holes without affecting division accuracy?

Yes. the Oil flow divider with 50/50 split, type FPFD can be mounted using the visible mounting holes without affecting division accuracy, provided the following conditions are respected: - Mounting does not introduce significant mechanical stress, deformation or misalignment of the valve body that could alter internal clearances. Use proper fasteners and torque values to avoid distorting the galvanized steel body. - The installation preserves hydraulic connections and avoids external bending or loads on ports that could change flow paths or create leakage. - Operating conditions remain within specified limits: pressure difference between outlets 2a and 2b should not exceed 120 bar, and ambient/medium temperature stays within -30Â°C to +100Â°C. Under these conditions the division error guarantee (maximum 10%) applies. - Sealing surfaces (NBR) and valve internals are not damaged during mounting and remain clean and intact. If mounting is done carefully so the body is rigidly supported but not deformed, using the visible mounting holes will not affect the 50/50 division accuracy of the Oil flow divider with 50/50 split, type FPFD.

Oil flow divider with 50/50 split, type FPFD

All products, Other high-pressure valves/

Additional information

Material	CS – steel (cast iron)

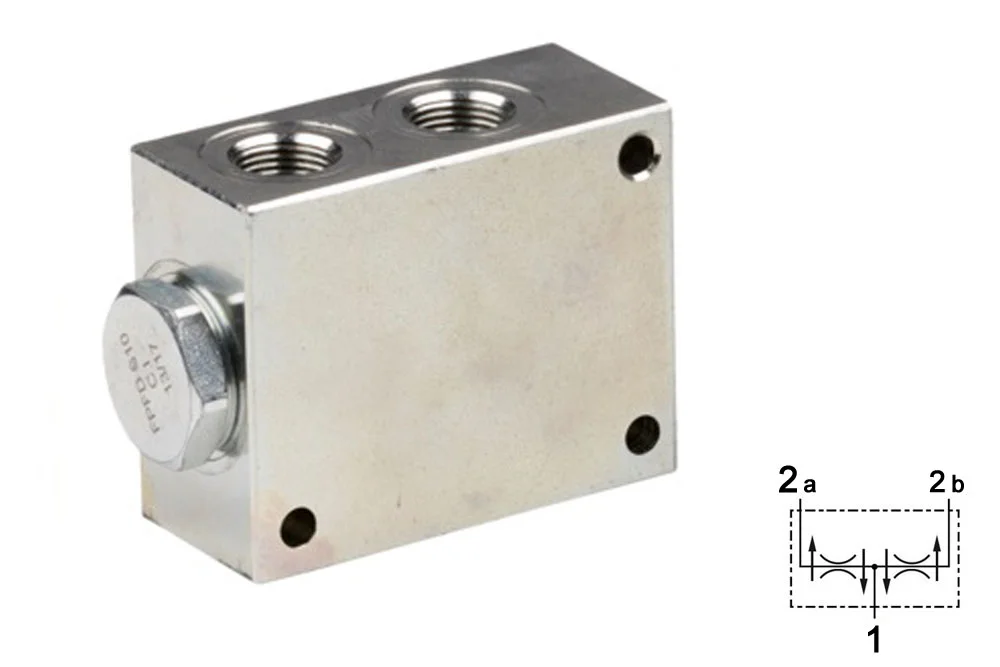

FPFD valves divide the flow of pumped hydraulic oil (1) into two equal flows (2a and 2b) supplying consumers. The division error can be a maximum of 10% (assuming the pressure difference between 2a and 2b does not exceed 120 bar). The valves are equipped with mounting holes (visible in the photo). Material: galvanized steel (body), galvanized steel (valve). Sealing: NBR. Operating temperature: from -30°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DC-FPFD-06-06-SA	Flow divider, G 3/8" BSP - G 3/8" BSP	-	350	In stock	Enquiry
DC-FPFD-06-06-SE	Flow divider, G 3/8" BSP - G 3/8" BSP	-	350	In stock	Enquiry
DC-FPFD-06-06-SI	Flow divider, G 3/8" BSP - G 3/8" BSP	-	350	In stock	Enquiry
DC-FPFD-08-06-SM	Flow divider, G 1/2" BSP - G 3/8" BSP	-	350	In stock	Enquiry
DC-FPFD-08-06-SQ	Flow divider, G 1/2" BSP - G 3/8" BSP	-	350	In stock	Enquiry
DC-FPFD-08-08-SA	Flow divider, G 1/2" BSP - G 1/2" BSP	-	350	In stock	Enquiry
DC-FPFD-12-08-SE	Flow divider, G 3/4" BSP - G 1/2" BSP	-	350	In stock	Enquiry
DC-FPFD-12-12-SA	Flow divider, G 3/4" BSP - G 3/4" BSP	-	350	In stock	Enquiry
DC-FPFD-16-12-SE	Flow divider, GW 1" BSP - GW 3/4" BSP	-	350	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

FPFD valves divide the flow of pumped hydraulic oil (1) into two equal flows (2a and 2b) supplying consumers. The division error can be a maximum of 10% (assuming the pressure difference between 2a and 2b does not exceed 120 bar). The valves are equipped with mounting holes (visible in the photo). Material: galvanized steel (body), galvanized steel (valve). Sealing: NBR. Operating temperature: from -30°C to +100°C.
