Is the ORFS adapter with GZ BSP of carbon steel, type GE-B (60Â° cone sealing, galvanized) compatible with standard BSPP threaded ports?

No. The ORFS adapter with GZ BSP of carbon steel, type GE-B (60Â° cone sealing, galvanized) is not compatible with standard BSPP threaded ports. ORFS (O-Ring Face Seal) uses a flat face with an Oâring and typically mates with ORFS female ports or connectors designed for ORFS sealing. The GE-B description specifies an external BSP thread with a 60Â° cone sealing.this indicates a BSP variant using a cone seat, which is different from parallel BSPP threads that seal on a gasket or thread sealant and rely on a bonded washer or face seal. Because the sealing geometries and sealing methods differ (60Â° cone vs. BSPP face/seal), they are not directly interchangeable without a specific adapter designed to convert between the two thread/seal types.

Does the ORFS adapter with GZ BSP of carbon steel, type GE-B support sealing with BSPT ports?

No. The ORFS adapter with GZ BSP of carbon steel, type GE-B is designed for sealing via the external BSP thread mating with a 60Â° cone (BSP male with cone). BSPT ports use a tapered thread and seal on the threads, not on a 60Â° cone seating surface. Therefore a GE-B (external BSP 60Â° cone) requires a matching BSP male port with a 60Â° cone seat; it will not provide proper sealing with standard BSPT ports.

Can the ORFS adapter with GZ BSP of carbon steel, type GE-B withstand hydraulic pressures typical for mobile equipment?

Yes. The ORFS adapter with GZ BSP of carbon steel, type GE-B is suitable for typical mobile hydraulic pressures. Carbon steel construction with galvanization provides the mechanical strength required for high-pressure hydraulic systems used in mobile equipment. The ORFS (O-Ring Face Seal) to external BSP (60Â° cone sealing) configuration ensures a reliable, drip-free seal under pressure and vibration common in mobile applications. Correct installationâproper torque, compatible mating threads/seals, and use within specified temperature and fluid compatibility limitsâis essential to achieve rated performance and avoid leaks. For exact maximum working pressure, temperature range and compatibility with specific hydraulic fluids or safety factors, consult the manufacturerâs technical datasheet or supplier, as ratings can vary by size and production specification.

ORFS adapter with GZ BSP of carbon steel, type GE-B

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 50

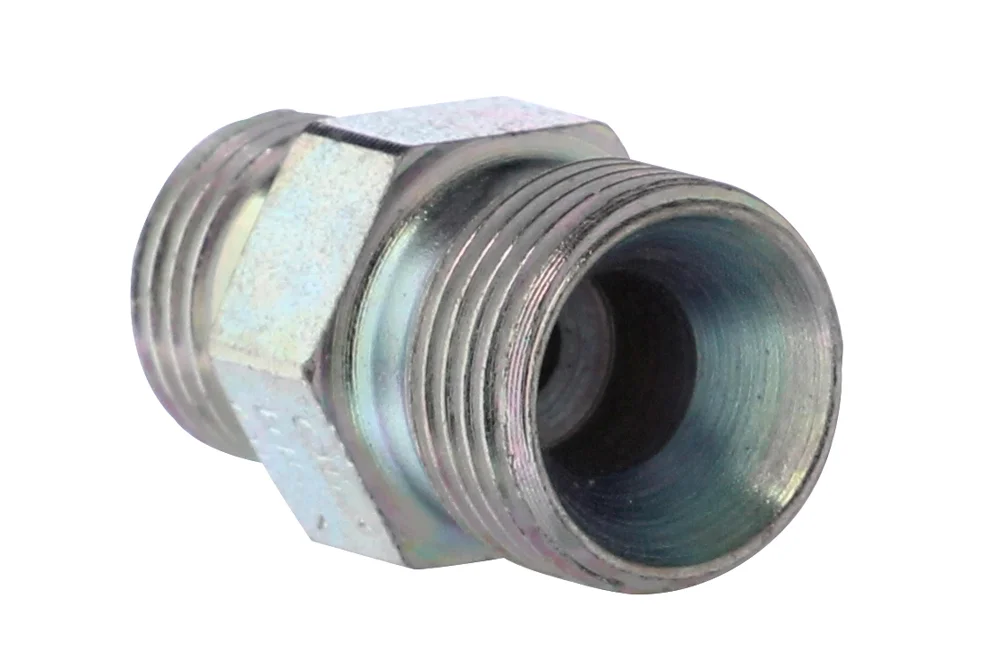

ORFS adapter with external BSP thread (60° cone sealing), type GE-B. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HO-GE-09-B-02	Adaptor GZ BSP 1/8" - GZ ORFS 9/16"-18	-	400	In stock	Enquiry
HO-GE-09-B-04	Adaptor GZ BSP 1/4" - GZ ORFS 9/16"-18	-	400	In stock	Enquiry
HO-GE-09-B-06	Adaptor GZ BSP 3/8" - GZ ORFS 9/16"-18	-	400	In stock	Enquiry
HO-GE-11-B-04	Adaptor GZ BSP 1/4" - GZ ORFS 11/16"-16	-	400	In stock	Enquiry
HO-GE-11-B-06	Adaptor GZ BSP 3/8" - GZ ORFS 11/16"-16	-	400	In stock	Enquiry
HO-GE-11-B-08	Adaptor GZ BSP 1/2" - GZ ORFS 11/16"-16	-	350	In stock	Enquiry
HO-GE-13-B-04	Adaptor GZ BSP 1/4" - GZ ORFS 13/16"-16	-	400	In stock	Enquiry
HO-GE-13-B-06	Adaptor GZ BSP 3/8" - GZ ORFS 13/16"-16	-	400	In stock	Enquiry
HO-GE-13-B-08	Adaptor GZ BSP 1/2" - GZ ORFS 13/16"-16	-	350	In stock	Enquiry
HO-GE-13-B-12	Adaptor GZ BSP 3/4" - GZ ORFS 13/16"-16	-	315	In stock	Enquiry
HO-GE-16-B-06	Adaptor GZ BSP 3/8" - GZ ORFS 1"-14"	-	400	In stock	Enquiry
HO-GE-16-B-08	Adaptor GZ BSP 1/2" - GZ ORFS 1"-14	-	350	In stock	Enquiry
HO-GE-16-B-10	Adaptor GZ BSP 5/8" - GZ ORFS 1"-14"	-	350	In stock	Enquiry
HO-GE-16-B-12	Adaptor GZ BSP 3/4" - GZ ORFS 1"-14"	-	315	In stock	Enquiry
HO-GE-19-B-08	Adaptor GZ BSP 1/2" - GZ ORFS 1.3/16"-12"	-	350	In stock	Enquiry
HO-GE-19-B-12	Adaptor GZ BSP 3/4" - GZ ORFS 1.3/16"-12"	-	315	In stock	Enquiry
HO-GE-19-B-16	Adaptor GZ BSP 1" - GZ ORFS 1.3/16"-12"	-	250	In stock	Enquiry
HO-GE-23-B-12	Adaptor GZ BSP 3/4" - GZ ORFS 1.7/16"-12	-	315	In stock	Enquiry
HO-GE-23-B-16	Adaptor GZ BSP 1" - GZ ORFS 1.7/16"-12	-	250	In stock	Enquiry
HO-GE-23-B-20	Adaptor GZ BSP 1.1/4" - GZ ORFS 1.7/16"-12"	-	200	In stock	Enquiry
HO-GE-27-B-20	Adaptor GZ BSP 1.1/4" - GZ ORFS 1.11/16"-12"	-	200	In stock	Enquiry
HO-GE-32-B-24	Adaptor GZ BSP 1.1/2" - GZ ORFS 2"-12"	-	160	In stock	Enquiry
