What is the nominal flow of the MRF/C brass pneumatic throttling valve for actuator at 6.3 bar in the throttled direction?

The nominal flow of the MRF/C brass pneumatic throttling valve for actuator at 6.3 bar in the throttled direction is the value specified by the manufacturer for that pressure. Based on the provided product description, the nominal flow at 6.3 bar (throttled direction) is not explicitly listed; please consult the manufacturer's datasheet or technical specifications for the exact numeric nominal flow (usually given in Nl/min or mÂ³/h).

How do I install the MRF/C brass pneumatic throttling valve for actuator using its plug connection for hose disassembly?

To install the MRF/C brass pneumatic throttling valve for actuator using its plug connection for hose disassembly, follow these steps: 1. Ensure system depressurized (0 bar) and actuator in safe position. 2. Identify mounting port on actuator designed for direct mounting; align valve so flow direction marking matches intended throttling direction. 3. Thread the valve into the actuator connection; tighten by hand then secure with appropriate wrench-do not overâtorque to avoid damaging nickelâplated brass body. 4. Insert pneumatic hose onto the valveâs plug connection until it seats fully; push the plug in until you hear/feel the locking engagement. 5. If hose has a release collar, depress it to verify secure fit and to allow future disassembly. 6. Adjust flow setting with a screwdriver on the adjustment screw; turn slowly while pressurizing system to the working pressure (up to 10 bar), verify desired nominal flow at ~6.3 bar in throttled direction. 7. Check for leaks, proper direction of flow and actuator operation; reâtighten as needed. 8. For hose disassembly, depress the plugâs release mechanism and pull the hose straight out. Follow temperature limits (â10Â°C to +70Â°C) and safety procedures.

Does the MRF/C brass pneumatic throttling valve for actuator support bidirectional flow control or only unidirectional throttling?

The MRF/C brass pneumatic throttling valve for actuator supports bidirectional flow control: it is designed to regulate both the flow rate and the direction of compressed air in actuator connections. The product description explicitly states it is used for regulating the flow rate and the direction of flow, and the nominal flow specification is given specifically "in the throttled direction," which implies asymmetric behavior depending on flow direction (throttling effect applied in one direction while allowing freer flow in the opposite direction). In practice, this means the valve provides adjustable throttling in the specified (throttled) direction and typically a less restricted or return flow in the opposite directionâi.e., it is intended for directional (bidirectional) application where one direction is throttled.

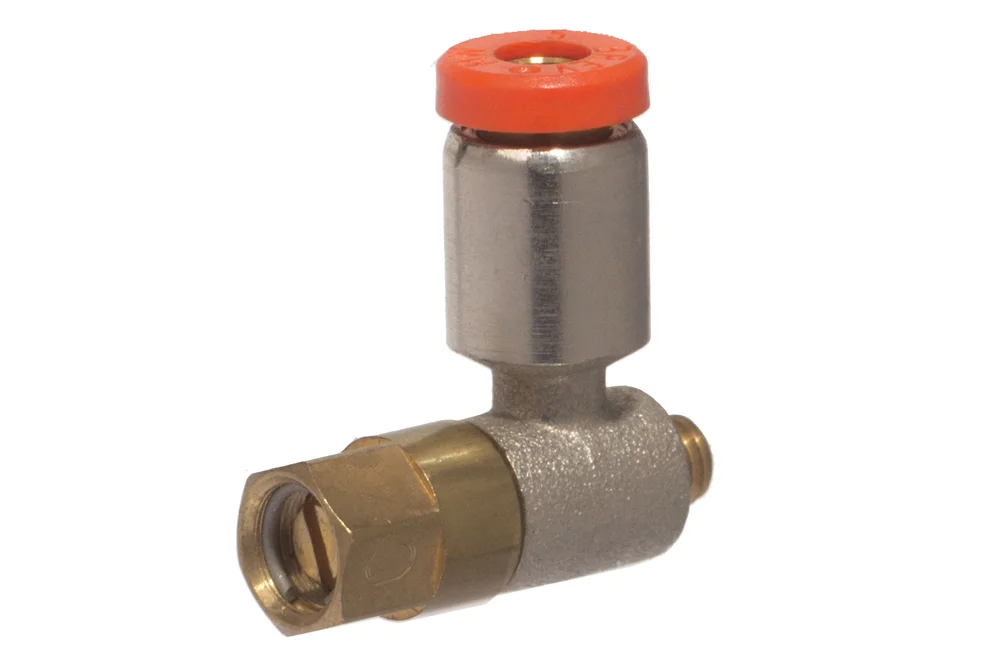

Valve throttle check pneumatic brass MRF/C for the actuator

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

Valve throttle check type MRF/C for direct mounting in connections the actuator, used in systems pneumatic for adjustment rate flowing stream compressed air and direction flow. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment using a screwdriver. stated flow nominal at pressure 6.3 bar (in direction throttled). Material the body: brass nickel-plated. pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9001002	Throttle check valve for actuator MRF/C, hose 5 mm, M5 male	-	10	In stock	Enquiry
MW-9001008	Throttle check valve for actuator MRF/C, hose 10 mm, 1/4" BSP male	-	10	In stock	Enquiry
MW-9001011	Throttle check valve for actuator MRF/C, hose 4 mm, 1/8" BSP male	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Valve throttle check type MRF/C for direct mounting in connections the actuator, used in systems pneumatic for adjustment rate flowing stream compressed air and direction flow. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment using a screwdriver. stated flow nominal at pressure 6.3 bar (in direction throttled). Material the body: brass nickel-plated. pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C.
