Can the Pneumatic connector with MAN L pressure gauge (wire-to-wire) be rotated to any orientation without affecting accuracy?

Yes . the Pneumatic connector with MAN L pressure gauge (wire-to-wire) can be rotated to any orientation without affecting accuracy. The gauge is housed in a metal shield and is designed for manual rotation, allowing it to be positioned as needed while maintaining accurate readings. Operating specs: working pressure 12 bar, temperature range â20Â°C to +60Â°C, medium filtered compressed air (oiled or un-oiled).

Is the Pneumatic connector with MAN L pressure gauge (wire-to-wire) compatible with both oiled and un-oiled compressed air?

Yes. The Pneumatic connector with MAN L pressure gauge (wire-to-wire) is compatible with both oiled and un-oiled compressed air. The product specification explicitly states the medium as filtered compressed air, oiled or un-oiled, and it supports a working pressure up to 12 bar and operating temperatures from -20Â°C to +60Â°C.

Does the Pneumatic connector with MAN L pressure gauge (wire-to-wire) support fluids other than filtered compressed air?

Pneumatic connector with MAN L pressure gauge (wire-to-wire) is specified for use with filtered compressed air, either oiled or un-oiled. Opis produktu wyraÅºnie okreÅla medium jako "filtered compressed air", co oznacza, Å¼e urzÄdzenie, uszczelnienia i mechanizm manometru sÄ przystosowane do powietrza sprÄÅ¼onego oczyszczonego z zanieczyszczeÅ i (opcjonalnie) z olejem. Stosowanie innych mediÃ³w (np. gazÃ³w technicznych innych niÅ¼ powietrze, cieczy, agresywnych par, paliw czy substancji korozyjnych) nie jest zalecane bez potwierdzenia przez producenta. Inne media mogÄ: - uszkodziÄ uszczelnienia i wnÄtrze manometru, - zmieniÄ dokÅadnoÅÄ pomiaru, - stwarzaÄ ryzyko wycieku lub awarii przy wskazanych parametrach ciÅnieniowych (do 12 bar), - byÄ niezgodne z temperaturami pracy (-20Â°C do +60Â°C) lub z materiaÅami osÅony. JeÅli potrzebujesz uÅ¼ywaÄ innego medium, skontaktuj siÄ z producentem lub dostawcÄ, podajÄc konkretne medium i warunki pracy, aby uzyskaÄ potwierdzenie zgodnoÅci lub rekomendacjÄ odpowiedniego produktu.

Pneumatic connector with MAN L pressure gauge (wire-to-wire)

All products, Functional fittings/

Additional information

Material	P – material (plastic)

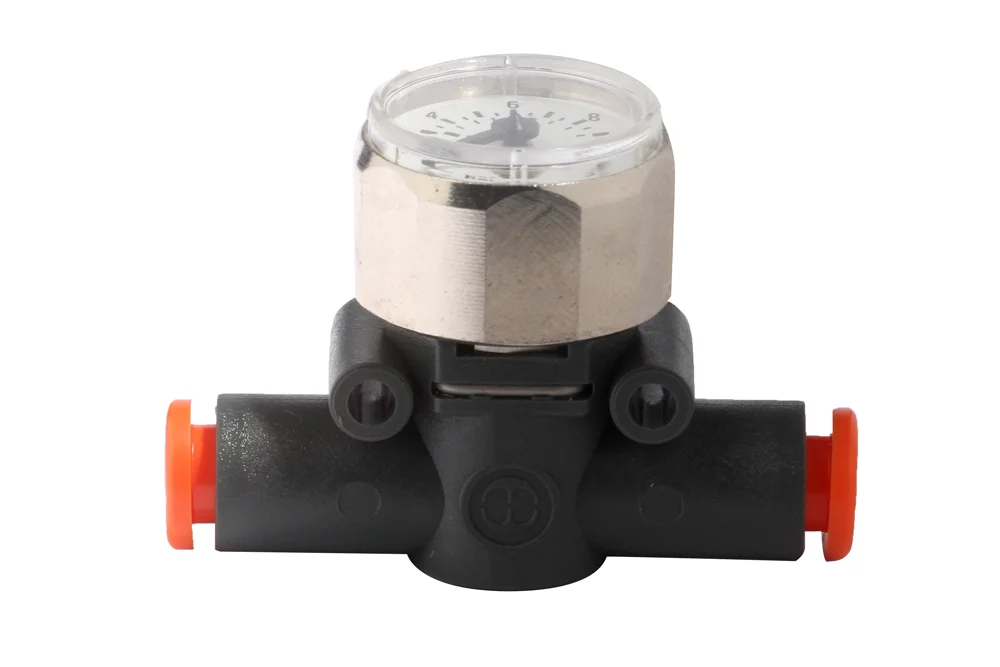

Connector with MAN L pressure gauge in a version finished with plug connectors on both sides (hose – hose). The pressure gauge housed in a metal shield ensures accurate readings despite its small size. It can be oriented in any direction by manual rotation. Working pressure: 12 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or un-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9067001	Connector with pressure gauge MAN L, hose 4 mm - hose 4 mm	-	12	In stock	Enquiry
MW-9067016	Connector with pressure gauge MAN L, hose 6 mm - hose 6 mm	-	12	In stock	Enquiry
MW-9067024	Connector with pressure gauge MAN L, hose 8 mm - hose 8 mm	-	12	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connector with MAN L pressure gauge in a version finished with plug connectors on both sides (hose – hose). The pressure gauge housed in a metal shield ensures accurate readings despite its small size. It can be oriented in any direction by manual rotation. Working pressure: 12 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or un-oiled.
