Is the Pneumatically operated pneumatic diverter valve, monostable, 5/2, 70 series suitable for outdoor use within the -10Â°C to +60Â°C temperature range?

Yes. The Pneumatically operated pneumatic diverter valve, monostable, 5/2, 70 series is specified with an operating temperature range of -10Â°C to +60Â°C, so it is suitable for outdoor use within that temperature window. Its construction materials.aluminum valve body, nickel-plated aluminum slider, NBR seals, and plastic end cover.support typical outdoor pneumatic applications, and the working pressure rating up to 10 bar meets common system requirements. Note: For specific outdoor environments (direct prolonged UV exposure, salt spray/corrosive atmospheres, heavy rain, icing, or temperatures fluctuating beyond the stated range) consider additional protection such as weatherproof housings, corrosion-resistant coatings, or selecting materials rated for those conditions.

Can the Pneumatically operated pneumatic diverter valve, monostable, 5/2, 70 series be mounted directly on actuators or connection blocks without additional support?

Yes. The Pneumatically operated pneumatic diverter valve, monostable, 5/2, 70 series can be mounted directly on actuators or on connection blocks without additional support. The product description explicitly states it can be mounted inline, to a wall, directly to actuators, or on a connection block. Ensure mounting surfaces match the valve ports and that the installation respects the specified working pressure (up to 10 bar) and operating temperature range (-10Â°C to +60Â°C).

Does the Pneumatically operated pneumatic diverter valve, monostable, 5/2, 70 series require specific sealing materials for chemical resistance?

Pneumatically operated pneumatic diverter valve, monostable, 5/2, 70 series uses NBR (nitrile rubber) for its seals according to the description. NBR provides good resistance to oils, greases and many hydrocarbons but has limited chemical resistance to ketones, some esters, chlorinated solvents, strong acids and bases, and aromatic hydrocarbons. If your application involves aggressive chemicals, solvents, high concentrations, or temperatures outside -10Â°C to +60Â°C, NBR may not be suitable and you should specify alternative seal materials (e.g., FKM/Viton for broader chemical and temperature resistance, EPDM for steam/oxidizing agents, or PTFE for best chemical compatibility). For standard pneumatic and oil-contaminated environments, the supplied NBR seals are generally adequate. Confirm compatibility by checking the specific chemicals and concentrations against NBR compatibility charts or consulting the manufacturer.

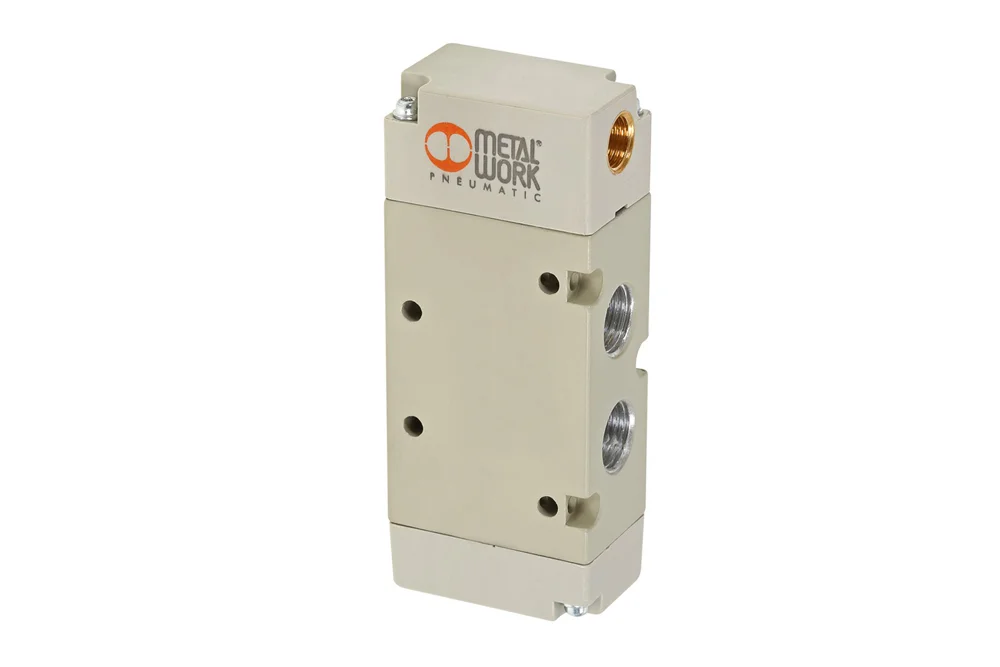

Pneumatically operated pneumatic diverter valve, monostable, 5/2, 70 series

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10

Universal pneumatic control distribution valve, most commonly used for controlling the operation of actuators. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 5/2 – five-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Working pressure: up to 10 bar. Operating temperature: -10°C to +60°C.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
MW-7010011100	Valve series 70 PNV 25 PNS OO	-	10
MW-7020011100	Valve series 70 PNV 35 PNS OO	-	10
MW-7030011100	Valve series 70 PNV 45 PNS OO	-	10
MW-7040011100	Valve series 70 PNV C5 PNS OO	-	10

Universal pneumatic control distribution valve, most commonly used for controlling the operation of actuators. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 5/2 – five-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Working pressure: up to 10 bar. Operating temperature: -10°C to +60°C.
