Can the MRF NTC plastic pneumatic throttling valve, for actuator, COMPACT "N" series be mounted directly on different actuator ports and still allow quick hose disconnection via the plug-in coupling?

Yes. The MRF NTC plastic pneumatic throttling valve, for actuator, COMPACT "N" series is designed for direct mounting in actuator connections and is fitted with a plug-in coupling, so it can be mounted directly on different actuator ports while still allowing quick disconnection of pneumatic hoses. Its compact design, available thread/sizes (M5, 1/8â³, 1/4â³, 3/8â³, 1/2â³) and built-in coupling enable easy installation and rapid hose removal without disturbing the adjustment (which can be set via knob or screwdriver and locked with a nut). Ensure size and thread compatibility with the actuator port and observe the valveâs operating limits (â¤10 bar, -10Â°C to +50Â°C) and plastic material characteristics when selecting mounting locations.

Does the MRF NTC plastic pneumatic throttling valve, for actuator, COMPACT "N" series allow flow adjustment with both the control knob and a screwdriver while being lockable?

Yes. The MRF NTC plastic pneumatic throttling valve, for actuator, COMPACT "N" series allows flow adjustment via both a control knob and a screwdriver, and the setting can be secured with a locking nut.

Is the MRF NTC plastic pneumatic throttling valve, for actuator, COMPACT "N" series suitable for use in systems operating at -10Â°C to +50Â°C?

Yes. The MRF NTC plastic pneumatic throttling valve, for actuator, COMPACT "N" series is specified with an operating temperature range from -10Â°C to +50Â°C, so it is suitable for use in systems operating within that temperature window. Ensure other system conditions (working pressure up to 10 bar, media compatibility with plastic material, and required thread/size: M5, 1/8", 1/4", 3/8", 1/2") are met for proper performance.

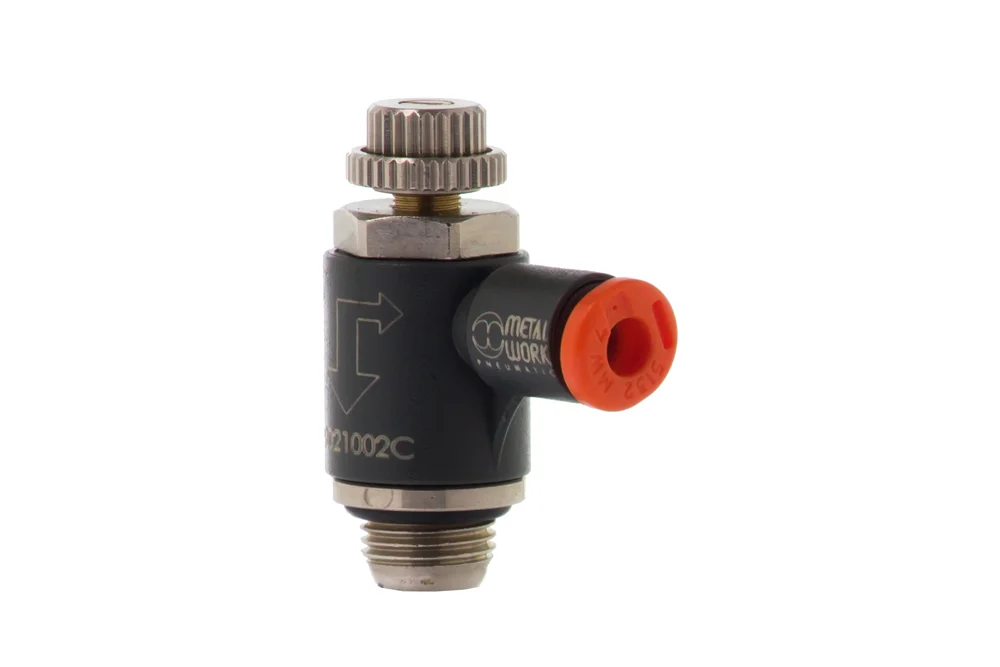

MRF NTC plastic pneumatic throttling valve, for actuator, COMPACT “N” series.

All products, Pneumatic valves/

Additional information

Material	P – material (plastic)

Throttle-return valve type MRF NTC series COMPACT “N” for direct mounting in actuator connections, used in pneumatic systems for regulating the flow rate of compressed air and flow direction. Equipped with a plug-in coupling for easy disassembly of pneumatic hoses. Adjustment change via a control knob and/or screwdriver; possibility of securing the setting with a locking nut. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +50°C. Material: plastic.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9021001C	Throttle check valve for MRF NTC actuator, 4 mm hose, GZ M5	-	10	In stock	Enquiry
MW-9021002C	Throttle check valve for MRF NTC actuator, 4 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9021005C	Throttle check valve for MRF NTC actuator, 6 mm hose, GZ M5	-	10	In stock	Enquiry
MW-9021006C	Throttle check valve for MRF NTC actuator, 6 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9021007C	Throttle check valve for MRF NTC actuator, 6 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9021008C	Throttle check valve for MRF NTC actuator, 8 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9021009C	Throttle check valve for MRF NTC actuator, 8 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9021011C	Throttle check valve for MRF NTC actuator, 10 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9021012C	Throttle check valve for MRF NTC actuator, 10 mm hose, GZ BSP 3/8"	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Throttle-return valve type MRF NTC series COMPACT “N” for direct mounting in actuator connections, used in pneumatic systems for regulating the flow rate of compressed air and flow direction. Equipped with a plug-in coupling for easy disassembly of pneumatic hoses. Adjustment change via a control knob and/or screwdriver; possibility of securing the setting with a locking nut. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +50°C. Material: plastic.
