Is the Polyamide, aluminum pipe for pneumatic systems SPEEDFIT 3 m compatible with other compressed air fittings and standards?

Polyamide, aluminum pipe for pneumatic systems SPEEDFIT 3 m is designed for use in compressed air installations and is recommended for the SPEEDFIT system. Compatibility with other compressed air fittings and standards depends on the specific fittingsâ connection type and dimensional standards. If other fittings match the SPEEDFIT systemâs coupling dimensions and meet common pneumatic standards (thread types, diameters, and pressure ratings), the pipe can often be used together; however, direct interchangeability is not guaranteed without confirming connectors, seals and operating pressure limits. For reliable compatibility, use fittings explicitly specified for the SPEEDFIT system or verify that alternative fittings comply with the same dimensional and performance specifications as SPEEDFIT.

Can Polyamide, aluminum pipe for pneumatic systems SPEEDFIT 3 m be cut to custom lengths on-site without affecting performance?

Yes. Polyamide, aluminum pipe for pneumatic systems SPEEDFIT 3 m can be cut to custom lengths on-site without affecting performance, provided basic best practices are followed. Use a clean, straight cut with a suitable pipe cutter or fine-tooth saw, deburr the cut edges, and remove any swarf or dust. Ensure ends are square to allow proper sealing with SPEEDFIT fittings and check that internal/external surfaces are undamaged. Keep cut lengths within the systemâs specified pressure and temperature limits and follow manufacturer installation guidelines. When transported in shorter sections (1 m, 2 m) this same approach applies.

Does Polyamide, aluminum pipe for pneumatic systems SPEEDFIT 3 m require specific supports or mounting spacing?

Polyamide, aluminum pipe for pneumatic systems SPEEDFIT 3 m does benefit from proper supports and mounting spacing to ensure reliable operation and avoid damage. Although the product description does not list exact intervals, follow these general guidelines: - Support spacing: For typical compressed air pipes of mixed polyamide/aluminum construction, place supports every 1.0â1.5 m horizontally. Reduce spacing to 0.5â1.0 m for vertical runs, long unsupported drops, or when subject to vibration. - Mounting points: Secure pipe at each change of direction, near fittings, valves and connectors (e.g., SPEEDFIT fittings) to prevent stress on joints. - Thermal expansion and movement: Provide clamps that allow slight longitudinal movement or use expansion loops if long runs are exposed to temperature variations. - Vibration isolation: Use rubber-lined clamps or vibration-damping mounts in areas with compressors or machinery to prevent wear and fatigue. - Routing: Avoid tight bends; keep minimum bend radii recommended by the SPEEDFIT system manufacturer (when unspecified, use gentle bends and secure turns). - Protection: Where pipe passes through panels or near edges, use grommets or protective sleeves. For final spacing and clamp type, consult SPEEDFIT installation instructions or the system supplier to match pipe diameter, operating pressure and local regulations.

Pipe polyamide, aluminum for installation pneumatic SPEEDFIT 3 m

All products, Pneumatic piping systems/

Additional information

Material	P – material (plastic)
Standard length [m]	3

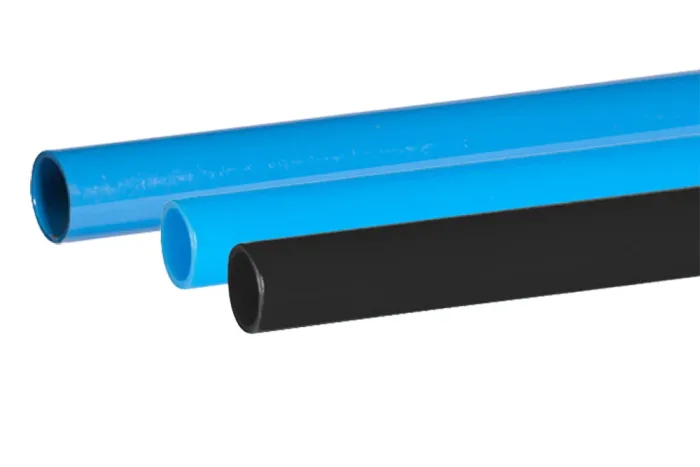

A polyamide and aluminum pipe is used in compressed-air installations. Recommended for the SPEEDFIT system. Material: polyamide, aluminum. color: blue, black. Standard pipe length (one section): 3 m (shipped in sections of 1 m, 2 m or longer after agreeing on transport costs).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
JG-AL-M1513-3M-10B	Pipe aluminum 15x13 mm x 3 m blue	-		In stock	Enquiry
JG-AL-M1816-3M-10B	Pipe aluminum 18x16 mm x 3 m blue	-		In stock	Enquiry
JG-AL-M2220-3M-10B	Pipe aluminum 22x20 mm x 3 m blue	-		In stock	Enquiry
JG-AL-M2826-3M-10B	Pipe aluminum 28x26 mm x 3 m blue	-		In stock	Enquiry
JG-PA-RM1209-3M-B	Pipe PA12 (hard) 12 mm x 3 m blue	-	38	In stock	Enquiry
JG-PA-RM1209-3M-E	Pipe PA12 (hard) 12 mm x 3 m black	-	38	In stock	Enquiry
JG-PA-RM1512-3M-B	Pipe PA12 (hard) 15 mm x 3 m blue	-	25	In stock	Enquiry
JG-PA-RM1512-3M-E	Pipe PA12 (hard) 15 mm x 3 m black	-	25	In stock	Enquiry
JG-PA-RM1814-3M-B	Pipe PA12 (hard) 18 mm x 3 m blue	-	28	In stock	Enquiry
JG-PA-RM1814-3M-E	Pipe PA12 (hard) 18 mm x 3 m black	-	28	In stock	Enquiry
JG-PA-RM2218-3M-B	Pipe PA12 (hard) 22 mm x 3 m blue	-	22	In stock	Enquiry
JG-PA-RM2218-3M-E	Pipe PA12 (hard) 22 mm x 3 m black	-	22	In stock	Enquiry
JG-PA-RM2823-3M-B	Pipe PA12 (hard) 28 mm x 3 m blue	-	20	In stock	Enquiry
JG-PA-RM2823-3M-E	Pipe PA12 (hard) 28 mm x 3 m black	-	20	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A polyamide and aluminum pipe is used in compressed-air installations. Recommended for the SPEEDFIT system. Material: polyamide, aluminum. color: blue, black. Standard pipe length (one section): 3 m (shipped in sections of 1 m, 2 m or longer after agreeing on transport costs).
