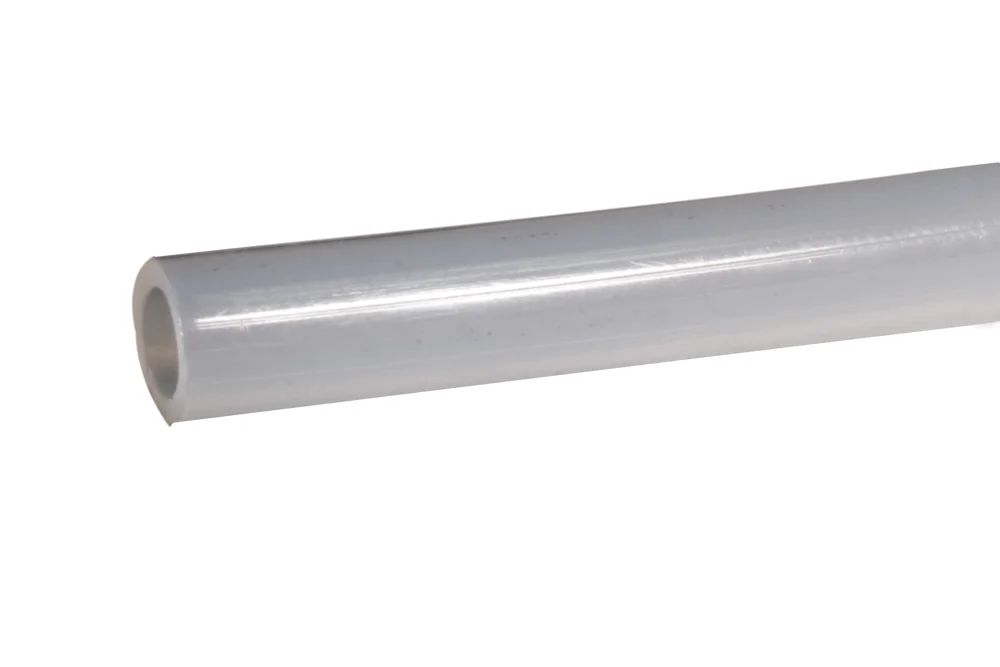

Light and flexible hose with calibrated outer diameter, intended for pneumatic, hydraulic, oil, fuel, lubrication, and chemical installations. Resistant to water and oil-laden air. Hose with enhanced resistance, according to DIN 73378 standard (P-plasticized, H-thermally stable, L-UV resistant). Standards and requirements: compliant with DIN 74324 standards for pneumatic braking systems of road vehicles and DIN 73378 for polyamide hoses used in road vehicles. In case of operation at elevated temperatures, pressure drop must be considered along with temperature. Available in colors: natural, black, blue, green, red, and yellow. Hose material: polyamide PA 12 (nylon). Working pressure: from 12 bar to 44 bar (depending on hose diameter and wall thickness). Working pressure dependent on temperature. Operating temperature: from -40°C to +80°C (for water-based media +70°C).
Light and flexible hose with calibrated outer diameter, intended for pneumatic, hydraulic, oil, fuel, lubrication, and chemical installations. Resistant to water and oil-laden air. Hose with enhanced resistance, according to DIN 73378 standard (P-plasticized, H-thermally stable, L-UV resistant). Standards and requirements: compliant with DIN 74324 standards for pneumatic braking systems of road vehicles and DIN 73378 for polyamide hoses used in road vehicles. In case of operation at elevated temperatures, pressure drop must be considered along with temperature. Available in colors: natural, black, blue, green, red, and yellow. Hose material: polyamide PA 12 (nylon). Working pressure: from 12 bar to 44 bar (depending on hose diameter and wall thickness). Working pressure dependent on temperature. Operating temperature: from -40°C to +80°C (for water-based media +70°C).
Additional information
Material
PA – polyamide
Maximum operating temperature [°C]
80
Minimum operating temperature [°C]
-40
Standard length [m]
10, 100, 2, 50
