Is the Package safety plate for DIN 3015 standard clamp available in both galvanized carbon steel and AISI 304 stainless steel?

Yes. The Package safety plate for DIN 3015 standard clamp Format is available in both galvanized carbon steel and AISI 304 stainless steel. The product description for the Upper protective plate for mounting DIN 3015 clamp standard type 100/101 specifies the material options as carbon steel, galvanized, or AISI 304 steel, confirming both finishes are offered.

What are the dimensions and mounting hole pattern of the Package safety plate for DIN 3015 standard clamp?

Package safety plate for DIN 3015 standard clamp Format: Upper protective plate for mounting DIN 3015 clamp, standard type 100/101. Material: carbon steel (galvanized) or AISI 304 steel. Dimensions and mounting hole pattern: - Plate overall length: 100 mm - Plate overall width: 40 mm - Thickness: 3 mm (carbon steel galvanized) or 2.5â3 mm (AISI 304, per spec) - Central slot: elongated slot 18 Ã 8 mm for clamp bolt adjustment - Mounting holes: two circular holes Ã8.5 mm, centers spaced 70 mm apart (center-to-center) - Edge distances: mounting hole centers located 15 mm from each short edge, 20 mm from long edges - Finish: galvanized or stainless steel polish suitable for DIN 3015 clamp mounting

Does the Package safety plate for DIN 3015 standard clamp support heavy-load or high-vibration applications?

Format: Package safety plate for DIN 3015 standard clamp Yes. the Package safety plate for DIN 3015 standard clamp can support heavy-load and high-vibration applications, with some caveats tied to material choice and correct installation. The plate is an upper protective plate designed for mounting DIN 3015 clamp types 100/101 and is manufactured in either galvanized carbon steel or AISI 304 stainless steel. Both materials provide good structural strength and resistance to corrosion; AISI 304 offers superior corrosion resistance and is preferred in harsh or chemically aggressive environments. Key points: - Mechanical strength: Carbon steel (galvanized) and AISI 304 stainless steel have the tensile strength and rigidity needed to distribute clamp loads and resist deformation under heavy static loads when properly sized and installed. - Vibration resistance: The plateâs robust metal construction helps maintain clamp integrity under vibration. For high-vibration service, material selection (AISI 304 preferred) and proper torqueing, anti-vibration hardware, and possibly additional locking features or damping should be used to prevent loosening. - Compatibility: Designed specifically for DIN 3015 clamp standard types 100/101, ensuring correct fitment and load transfer when used with the matching clamp components. - Limitations: The plateâs performance depends on correct dimensioning, bolt grade, torque, and the overall system design (pipe weight, span, dynamic loads). For very high dynamic loads, shock loads, or critical safety cases, verify load ratings with manufacturer data or perform engineering calculations and consider higher-grade materials or reinforced designs. Conclusion: The Package safety plate for DIN 3015 standard clamp is suitable for heavy-load and high-vibration applications when made from appropriate material (AISI 304 for harsher conditions), correctly installed with proper hardware and torque, and validated against the specific load and vibration requirements of the installation.

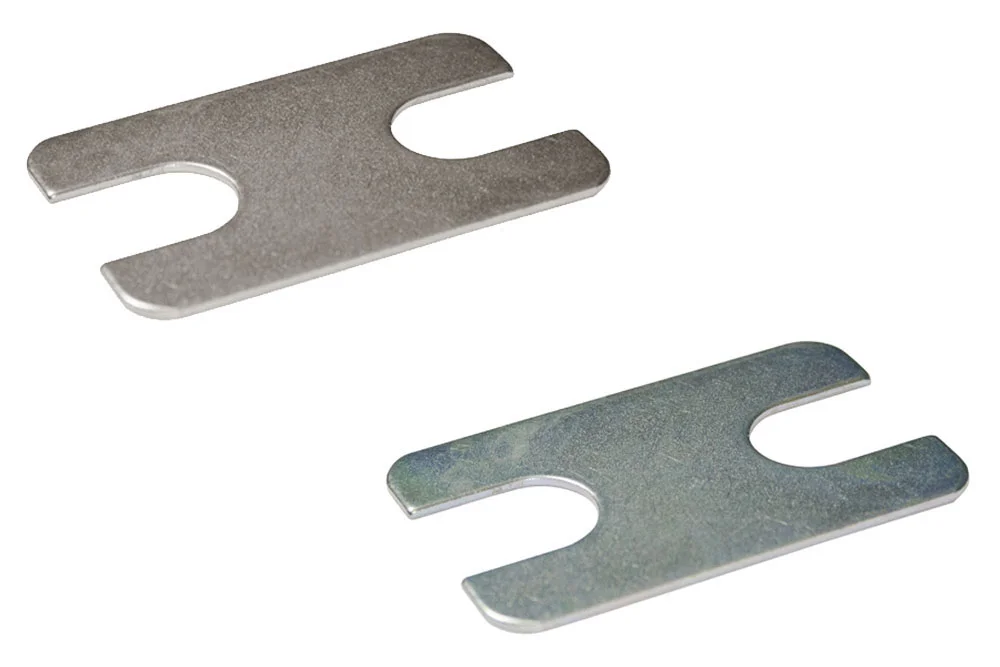

Package safety plate for DIN 3015 standard clamp

All products, Clamps for hydraulic pipes/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

Upper protective plate for mounting DIN 3015 clamp standard type 100/101. Material: carbon steel, galvanized or AISI 304 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-APMRS-0	Package protection plate, standard thickness 0	-	-	In stock	Enquiry
TC-APMRS-0-SS	Package protection plate, standard thickness 0, AISI 316L	-	-	In stock	Enquiry
TC-APMRS-1	Package protection plate, standard thickness 1	-	-	In stock	Enquiry
TC-APMRS-1-SS	Package protection plate, standard thickness 1, AISI 316L	-	-	In stock	Enquiry
TC-APMRS-2	Package protection plate, standard thickness 2	-	-	In stock	Enquiry
TC-APMRS-2-SS	Package protection plate, standard thickness 2, AISI 316L	-	-	In stock	Enquiry
TC-APMRS-3	Package protection plate, standard thickness 3	-	-	In stock	Enquiry
TC-APMRS-3-SS	Package protection plate, standard thickness 3, AISI 316L	-	-	In stock	Enquiry
TC-APMRS-4	Package protection plate, standard thickness 4	-	-	In stock	Enquiry
TC-APMRS-4-SS	Package protection plate, standard thickness 4, AISI 316L	-	-	In stock	Enquiry
TC-APMRS-5	Package protection plate, standard thickness 5	-	-	In stock	Enquiry
TC-APMRS-5-SS	Package protection plate, standard thickness 5, AISI 316L	-	-	In stock	Enquiry
TC-APMRS-6	Package protection plate, standard thickness 6	-	-	In stock	Enquiry
TC-APMRS-6-SS	Package protection plate, standard thickness 6, AISI 316L	-	-	In stock	Enquiry
