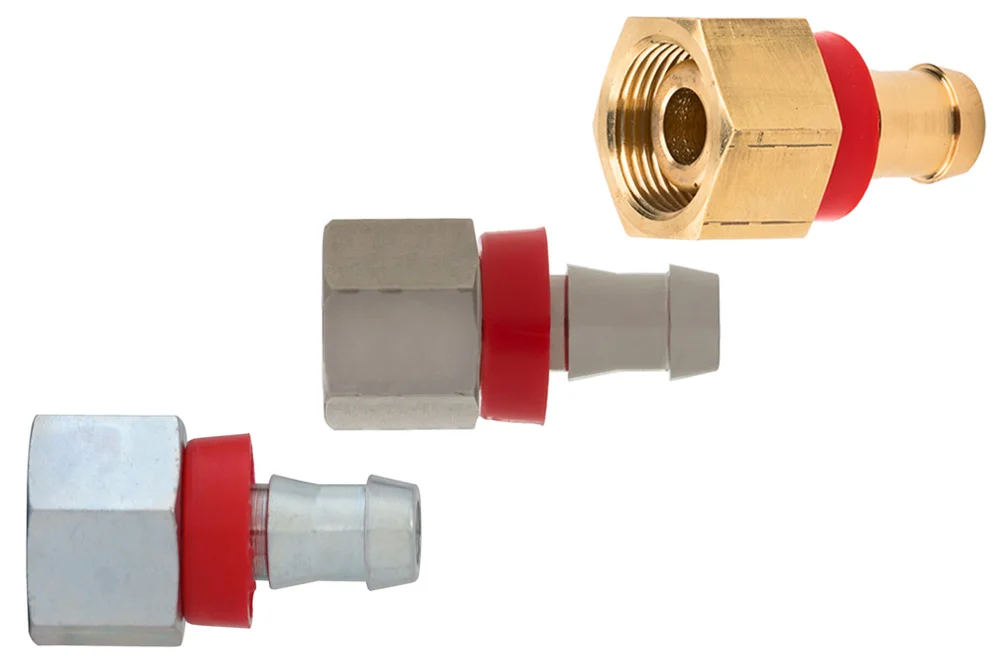

PUSH-ON self-clamping end with METRIC GW, type YMW111
PUSH-ON end fitting with internal metric thread, type YMW111, designed for self-clamping hose intended for this type of fitting. Mounted to the hose without the use of clamps or bands. Features a special profile of grooves tailored to the material and dimensions of the PUSH-ON hose and the structure of its braid, causing the hose to clamp onto the grooves of the fitting. The fitting should not be used with other hoses or clamped with bands or clamps, as this may damage the hose. Operating temperature: from -40°C to +80°C. Working pressure in accordance with the specifications of the PUSH-ON hose. Material: galvanized carbon steel, brass, AISI 316 steel.
List of product variants
PUSH-ON end fitting with internal metric thread, type YMW111, designed for self-clamping hose intended for this type of fitting. Mounted to the hose without the use of clamps or bands. Features a special profile of grooves tailored to the material and dimensions of the PUSH-ON hose and the structure of its braid, causing the hose to clamp onto the grooves of the fitting. The fitting should not be used with other hoses or clamped with bands or clamps, as this may damage the hose. Operating temperature: from -40°C to +80°C. Working pressure in accordance with the specifications of the PUSH-ON hose. Material: galvanized carbon steel, brass, AISI 316 steel.
Additional information
| Material | B – brass (bronze) |
|---|
