How do I clean and disinfect the PVC ISO-F quick connector socket plug, type IF without damaging the material?

To clean and disinfect the PVC ISO-F quick connector socket plug, type IF without damaging the material: 1. Remove the PVC ISO-F quick connector socket plug, type IF from the assembly. 2. Rinse gently with lukewarm water to remove loose dirt and debris. 3. Prepare a mild cleaning solution: dilute a neutral pH detergent (no solvents, bleaches, or alcohols) in water per manufacturer instructions. 4. Wipe or soak briefly (max a few minutes) using a soft cloth or non-abrasive sponge. Do not scrub with abrasive pads or brushes. 5. Rinse thoroughly with clean water to remove all detergent residues. 6. Disinfect using a diluted 70% isopropyl alcohol wipe or a mild quaternary ammonium-based disinfectant compatible with PVC; test on an inconspicuous area first. Avoid strong oxidizers, undiluted alcohol, acetone, or chlorinated solvents that can degrade PVC. 7. Air-dry completely or pat dry with a soft lint-free cloth before reinstallation. 8. Inspect for cracks, deformation, or discoloration; replace if any damage is visible. Follow any specific manufacturer guidance if available.

Can the PVC ISO-F quick connector socket plug, type IF withstand exposure to oils or solvents without degrading?

The PVC ISO-F quick connector socket plug, type IF offers basic protection against contamination and ingress of impurities, but its resistance to oils and solvents is limited by the properties of PVC. PVC (polyvinyl chloride) is generally resistant to water, many dilute acids and bases, and some oils, but it can be attacked, softened or swollen by a number of organic solvents, aromatic and chlorinated hydrocarbons, ketones and certain aggressive oils. Therefore, exposure to mild, non-aggressive oils (light mineral oils, some lubricants) for short periods will often be acceptable and not cause immediate degradation. However, prolonged contact with aggressive oils, fuels, hydraulic fluids containing additives, solvents (e.g., acetone, MEK, toluene, xylene, chlorinated solvents) or strong cleaning agents may cause swelling, softening, loss of mechanical integrity, discoloration or cracking of the PVC plug, compromising the seal and protection. If the application involves regular or prolonged exposure to oils/solvents, high temperatures, or aggressive chemical environments, consider verifying chemical compatibility with the specific fluid and conditions, or using a plug made from a more chemically resistant material (e.g., EPDM, Viton/FKM, PTFE) designed for such service.

PVC ISO-F quick connector socket plug, type IF

Q: Is the PVC ISO-F quick connector socket plug, type IF, suitable for long-term outdoor use without UV degradation?

Short answer: No . the PVC ISO-F quick connector socket plug, type IF is not recommended for long-term outdoor use without UV protection. Why: PVC (polyvinyl chloride) is widely used for fittings and protective caps because itâs inexpensive and resists many chemicals. However, standard unmodified PVC is susceptible to photodegradation under prolonged exposure to UV radiation: it can become brittle, fade in color (the red will bleach), crack, and lose mechanical integrity over months to years depending on sunlight intensity and climate. The product description (Blind plug for ISO-F quick-connect socket, protecting connections... Material: PVC. Color: red.) gives no indication of UV-stabilizers, UV-rated formulation, or additional protective coatings. Recommendation: If you need long-term outdoor protection, choose a UV-stabilized material (UV-stabilized PVC, polyethylene with UV additives, UV-stable thermoplastic elastomer, or weather-resistant rubber) or provide physical protection (cover, shade, or UV-resistant sleeve). Alternatively, verify with the manufacturer whether this specific PVC plug includes UV stabilizers or an outdoor service-life rating before relying on it outdoors.

All products, Hydraulic quick couplings/

Additional information

Material	P – material (plastic)

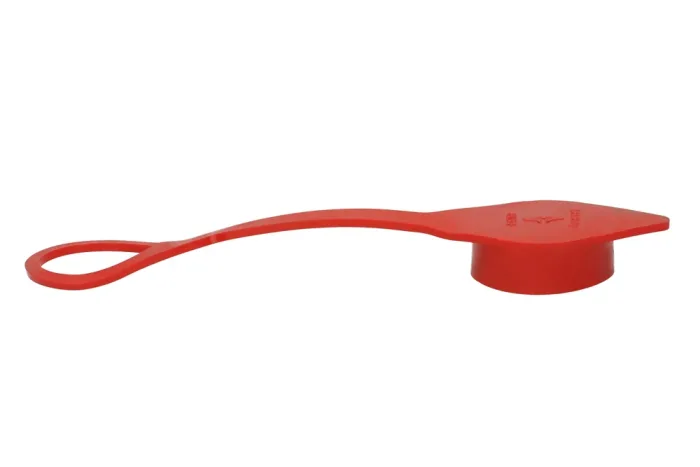

Blind plug for ISO-F quick-connect socket, protecting connections from contamination that may result in damage to components and the ingress of impurities into the system. Material: PVC. Color: red.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HQ-IF06-F-RED	ISO F DN6 socket plug, red PVC	-	-	In stock	Enquiry
HQ-IF10-F-RED	ISO F DN10 plug, red PVC	-	-	In stock	Enquiry
HQ-IF12-F-RED	ISO F DN12 socket plug, red PVC	-	-	In stock	Enquiry
HQ-IF16-F-RED	ISO F DN16 socket plug, red PVC	-	-	In stock	Enquiry
HQ-IF19-F-RED	ISO F DN19 socket plug, red PVC	-	-	In stock	Enquiry
HQ-IF25-F-RED	ISO F DN25 plug, red PVC	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Blind plug for ISO-F quick-connect socket, protecting connections from contamination that may result in damage to components and the ingress of impurities into the system. Material: PVC. Color: red.
