Can the QC-LOKÂ® quick connector plug with male thread, stainless steel, type QC6 be supplied with a valve or without one?

Yes. The QC-LOKÂ® quick connector plug with male thread, stainless steel, type QC6 is available both without a valve and with a valve. The QC6 is a high-quality, AISI 316 quick coupling (external thread NPT, BSPT, or BSP) compliant with Instrumentation standards, factory-tested at 68 bar, rated working pressure 103 bar, Viton sealing, and operating temperature â26Â°C to +204Â°C.

What is the working pressure and sealing material of the QC-LOKÂ® quick connector plug with male thread, stainless steel, type QC6?

QC-LOKÂ® quick connector plug with male thread, stainless steel, type QC6. working pressure: 103 bar; sealing material: Viton (FKM).

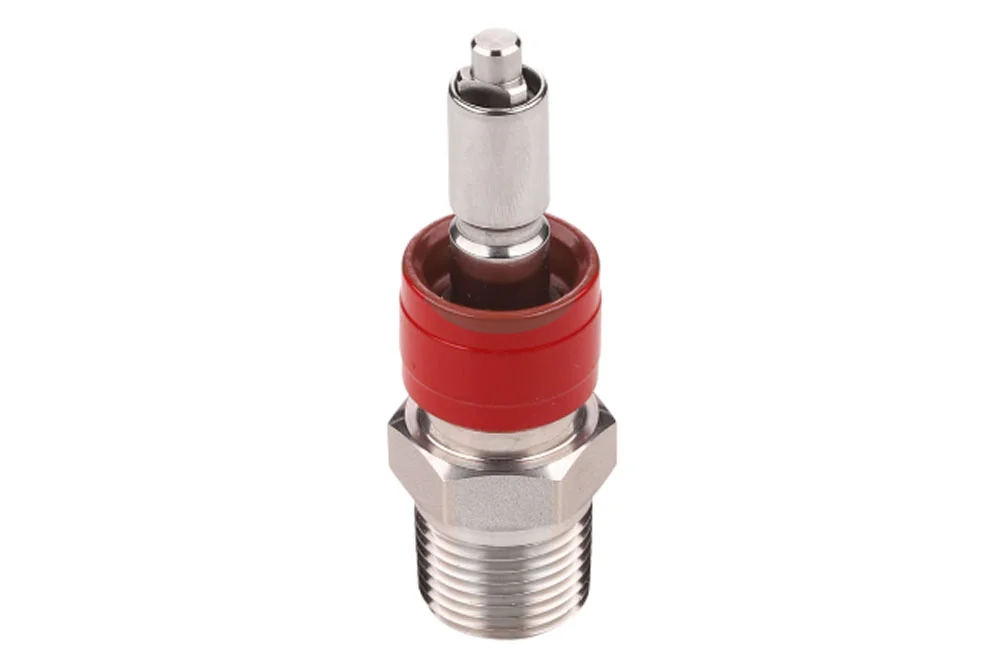

QC-LOK® quick connector plug with male thread, stainless steel, type QC6

All products, Precision threaded fasteners/

Additional information

Material	SS – stainless steel

QC6 quick coupling plug compliant with Standard Instrumentation, with external thread NPT, BSPT, or BSP. QC6 is a high-quality quick coupling used in aviation, gas industry, medical, pharmaceutical, and laboratories. All quick couplings are factory tested at a pressure of 68 bar to check for tightness. Interchangeable with Instrumentation standard quick couplings from other manufacturers. The plug is available in versions without a valve and with a valve. Material: AISI 316 steel. Working pressure: 103 bar. Sealing: viton. Operating temperature: from -26°C to +204°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-QC4-D-MG-04-SS	QC4 quick coupling plug, GZ 1/4" BSP, SS, with valve	-	206	In stock	Enquiry
HM-QC4-D-MN-04-SS	QC4 quick coupling plug, GZ 1/4" NPT, SS, with valve	-	206	In stock	Enquiry
HM-QC4-D-MR-04-SS	QC4 quick coupling plug, GZ 1/4" BSPT, SS, with valve	-	206	In stock	Enquiry
HM-QC6-D-MG-06-SS	QC6 quick coupling plug, GZ 3/8" BSP, SS, with valve	-	103	In stock	Enquiry
HM-QC6-D-MN-06-SS	QC6 quick coupling plug, GZ 3/8" NPT, SS, with valve	-	103	In stock	Enquiry
HM-QC6-D-MR-06-SS	QC6 quick coupling plug, GZ 3/8" BSPT, SS, with valve	-	103	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

QC6 quick coupling plug compliant with Standard Instrumentation, with external thread NPT, BSPT, or BSP. QC6 is a high-quality quick coupling used in aviation, gas industry, medical, pharmaceutical, and laboratories. All quick couplings are factory tested at a pressure of 68 bar to check for tightness. Interchangeable with Instrumentation standard quick couplings from other manufacturers. The plug is available in versions without a valve and with a valve. Material: AISI 316 steel. Working pressure: 103 bar. Sealing: viton. Operating temperature: from -26°C to +204°C.
