Is the Bulkhead socket for hose quick coupling with nut and valve, acetal, PMC series DN 3.2 compatible with my gas detection or medical device tubing?

Bulkhead socket for hose quick coupling with nut and valve, acetal, PMC series DN 3.2 may be compatible with your gas detection or medical device tubing, but compatibility depends on a few specifics: - Tubing inner diameter: DN 3.2 indicates nominal size; ensure your tubing OD/ID matches the couplingâs hose nut and sealing profile. - Materials: Body = acetal (POM), seals = NBR (nitrile). These are generally suitable for many gases and medical air lines but may be incompatible with aggressive chemicals, certain solvents, or specific sterilization agents. NBR has limited resistance to ketones, some chlorinated solvents, and ozone. - Pressure and temperature: Rated to 8.3 bar and -40Â°C to +82Â°C. Confirm your systemâs maximum pressure and operating temperature fall within these limits with margin. - Application requirements: For medical devices, check biocompatibility, sterilization methods (autoclave, EtO, gamma) and regulatory standards required for your device.acetal/NBR may not meet all medical regulatory needs. - Leak/connection: The quick-connect design provides audible confirmation and one-handed use; suitable for frequent connect/disconnect if mechanical strength and sealing fit your tubing. Recommendation: verify tubing dimensions against DN 3.2 fitting, confirm chemical compatibility of acetal and NBR with your gases/cleaning agents, ensure pressure/temperature margins, and confirm any regulatory/sterilization requirements for medical use. If uncertain, provide your tubing OD/ID, gas/chemicals used, max pressure, and sterilization methods for a definitive compatibility check.

Can the Bulkhead socket for hose quick coupling with nut and valve, acetal, PMC series DN 3.2 withstand repeated one-handed connections in medical or lab environments?

Yes. The Bulkhead socket for hose quick coupling with nut and valve, acetal, PMC series DN 3.2 is suitable for repeated oneâhanded connections in medical and lab environments. Its ballâfree, sleeveâfree design is specifically stated to allow easier, secure oneâhanded connection and disconnection, with an audible click confirming a proper seal. Constructed from acetal with NBR sealing, it supports working pressures up to 8.3 bar and temperatures â40Â°C to +82Â°C, meeting typical medical/lab operating ranges. Ensure compatibility with your specific gases/fluids, sterilization methods, and cleanliness regimes; validate chemically and biologically for your application before use.

Does the Bulkhead socket for hose quick coupling with nut and valve, acetal, PMC series DN 3.2 require special maintenance to ensure the audible click remains reliable?

Bulkhead socket for hose quick coupling with nut and valve, acetal, PMC series DN 3.2 does not require special maintenance beyond standard good-practice care to keep the audible click reliable. Recommended routine actions: - Keep mating surfaces and the valve area clean and free of dust, debris, ink, or chemical residues that could prevent proper seating. - Inspect the NBR sealing and acetal surfaces periodically for wear, cuts, hardening or chemical damage; replace seals if compromised. - Ensure operating conditions remain within specified limits (pressure up to 8.3 bar, temperature -40Â°C to +82Â°C); exceedance can affect fit and the click mechanism. - Lightly clean with compatible mild detergents or isopropyl alcohol; avoid aggressive solvents that attack acetal or NBR. - Check for mechanical damage to the nut, body or valve that could impede engagement; replace damaged units. - If used in corrosive or particulate environments, increase inspection frequency and consider protective measures (filters, covers). Following these routine checks and avoiding incompatible chemicals or out-of-spec conditions will preserve reliable audible engagement without needing special maintenance procedures.

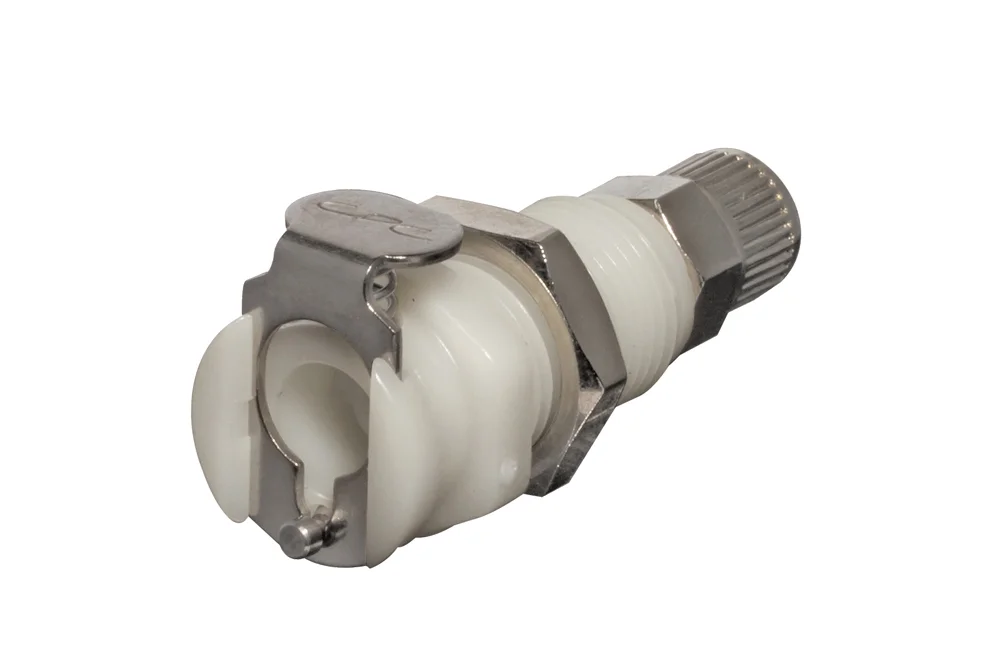

Bulkhead socket for hose quick coupling with nut and valve, acetal, PMC series DN 3.2

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

Quick-connect socket for hose with nut and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (not containing balls and protective sleeves) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal. Sealing: NBR. Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CC-PMV-03-AC	PMC DN3.2 socket for 4x2 hose with nut, with valve, grooved, acetal	2	8.3	In stock	Enquiry
CC-PMV-04-AC	PMC DN3.2 socket for hose 4x2.5 with nut, with valve, grooved, acetal	3	8.3	In stock	Enquiry
CC-PMV-05-AC	PMC DN3.2 socket for hose 6.4x4.3 with nut, with valve, grooved, acetal	4	8.3	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-connect socket for hose with nut and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (not containing balls and protective sleeves) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal. Sealing: NBR. Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.
